Loewe bild 4 - Bild 1; Connections Rear Side of the Device (Bild 1.65;55)

Loewe bild
User handbook
184
(1
Only available for device type bild 1.65.
(2
The adaptor is available as an accessory from your dealer.
(3
Before connecting an external device, please note that, the individual HDMI-ports can work with a range of different signals, see chapter Technical data, section bild
(across sets) – Signals via HDMI/AV (PC IN).
1
Mains connection
Power plug – 220-240 V ~ 50 / 60 Hz
2
LAN - Network connection
RJ-45 – Ethernet / Fast Ethernet
3
HDMI 1 (ARC) - HDMI input 1
(3
(with Audio Return Channel)
HDMI – Digital Video IN/Audio IN/OUT
4
HDMI 2 - HDMI input 2
(3
HDMI – Digital Video IN/Audio IN
5
ANT TV - Antenna/cable analogue / DVB-T/T2 / DVB-C
IEC socket – 75 Ohm / 5 V / 80mA
6
ANT SAT 1 - Satellite antenna (Sat tuner 1) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
7
ANT SAT 2 - Satellite antenna (Sat tuner 2) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
8
SPDIF OUT - Audio output (digital)
Cinch socket (orange)
9
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 1000mA)
10
Slot for Kensington lock
11
HEADPHONE - Headphone connection
Jack 3,5 mm – Headphones 32–200 Ohm
12
HDMI 3 - HDMI input 3
(3
HDMI – Digital Video IN/Audio IN
13
AUDIO OUT - Audio output (analogue) L/R – (Jack 3,5 mm)
14
RS-232C - Serial interface
(1 (2
– (RJ12)
15
AV INPUT - Micro AV socket
(2
Audio/Video IN with Scart adapter: Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
L/R
Audio/Video IN with VGA adapter:
PC/STB video signal
Component (YPbPr)
L/R
16
COMMON INTERFACE - CI slot 1 (standard V1.3)
17
COMMON INTERFACE - CI slot 2 (standard V1.3)
18
HDMI 4 - HDMI input 4
(3
HDMI – Digital Video IN/Audio IN
19
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
20
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
1
K
2
3
5
6
4
9
7
8
10
11
12
15
19
18
16
17
13
14
20
(1

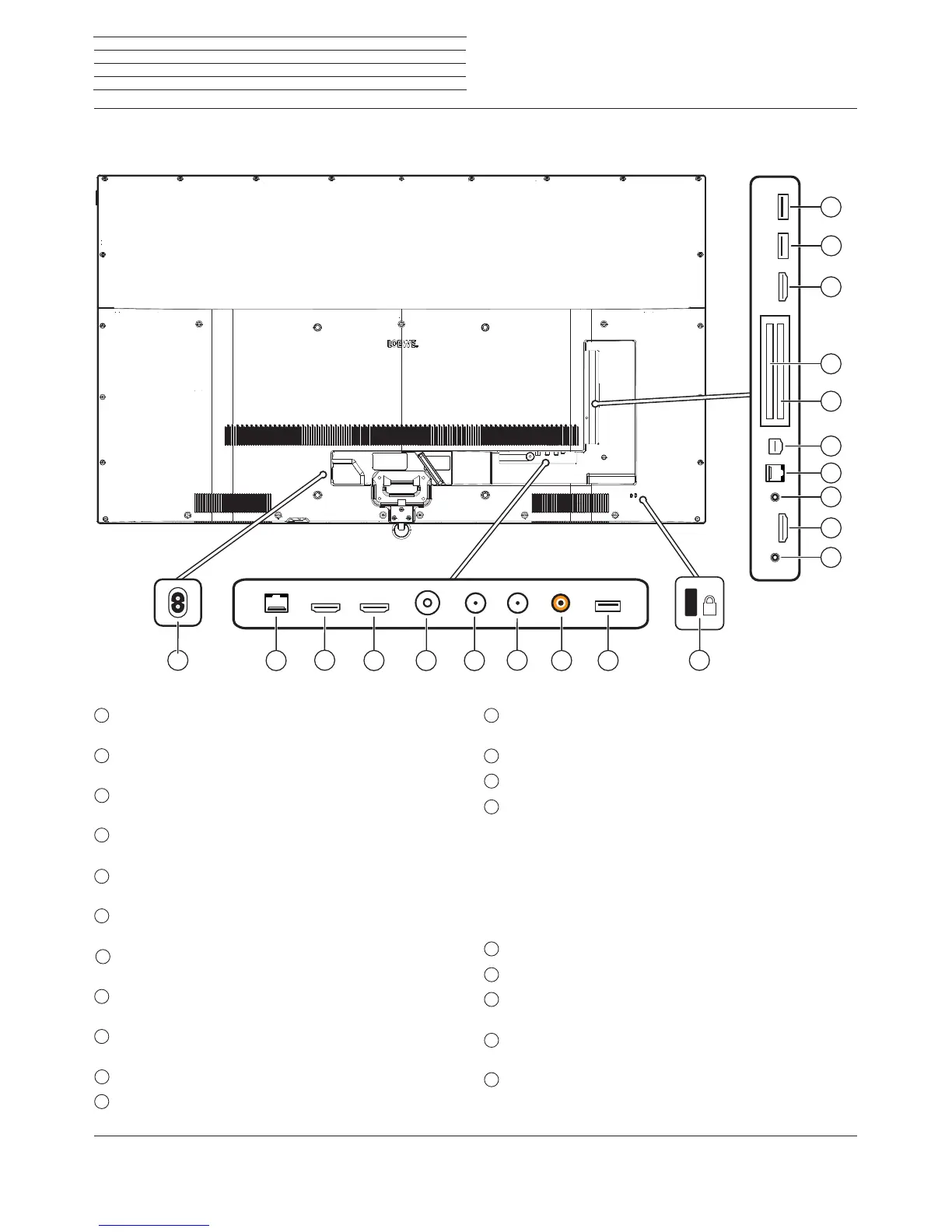

Connections rear side of the device (bild 1.65/55)

Technical data
bild 1
