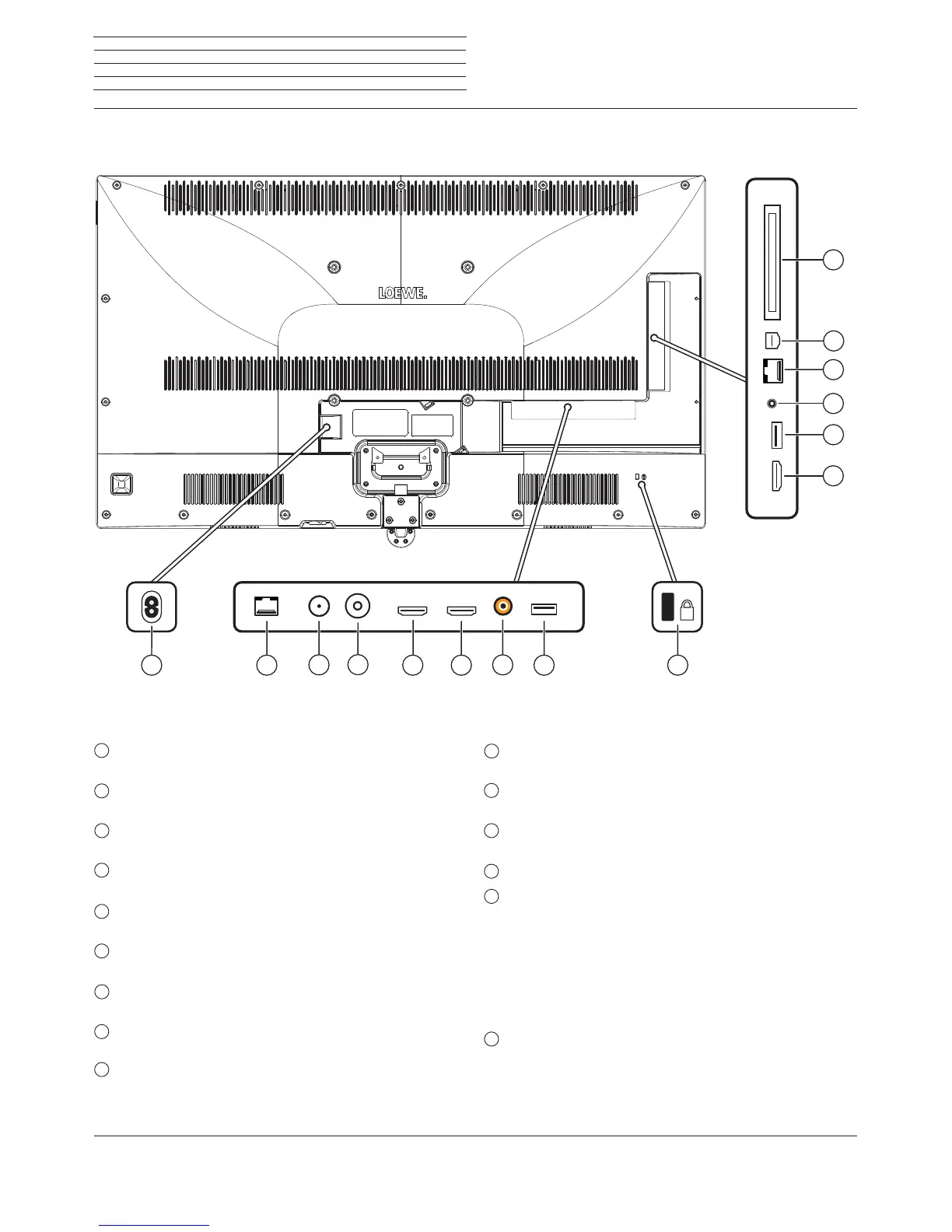

Connections rear side of the device (bild 1.40/32)
1
AC IN - Mains connection
Mains socket – 220-240 V ~ 50 / 60 Hz
2
LAN - Network connection
RJ-45 – Ethernet / Fast Ethernet
3
ANT SAT - Satellite antenna (Sat tuner) DVB-S
F socket – 75 Ohm / 13/18 V / 500mA
4
ANT TV - Antenna/cable analogue / DVB-T/T2 / DVB-C
IEC socket – 75 Ohm / 5 V / 80mA
5
HDMI 1 (ARC) - HDMI input 1
(2
(with Audio Return Channel)
HDMI – Digital Video IN, Audio IN/OUT
6
HDMI 2 - HDMI input 2
(2
HDMI – Digital Video IN, Audio IN
7
SPDIF OUT - Audio output (digital)
Cinch socket (orange)
8
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
9
Slot for Kensington lock
10
HDMI 3 - HDMI input 3
(2
HDMI – Digital Video IN, Audio IN
11
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 1000mA)
12
AUDIO OUT - Audio output (analogue) L/R – (Jack 3,5 mm)
Headphone connection Jack 3,5 mm – Headphones 32–200 Ohm
13
RS-232C - Serial interface
(1
– (RJ12)
14
AV INPUT - Micro AV socket
(1
Audio/Video IN with Scart adapter: Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
L/R
Audio/Video IN with VGA adapter:
PC/STB video signal
Component (YPbPr)
L/R
15
COMMON INTERFACE - CI slot (standard V1.3)
(1
The adaptor is available as an accessory from your dealer.
(2
Before connecting an external device, please note that, the individual HDMI-ports can work with a range of different signals, see chapter Technical data, section bild
(across sets) – Signals via HDMI/AV (PC IN).
R
M
+
_
K
2 1
3
10
11
5
6
4
9
14
15
12
13
7
8

