26

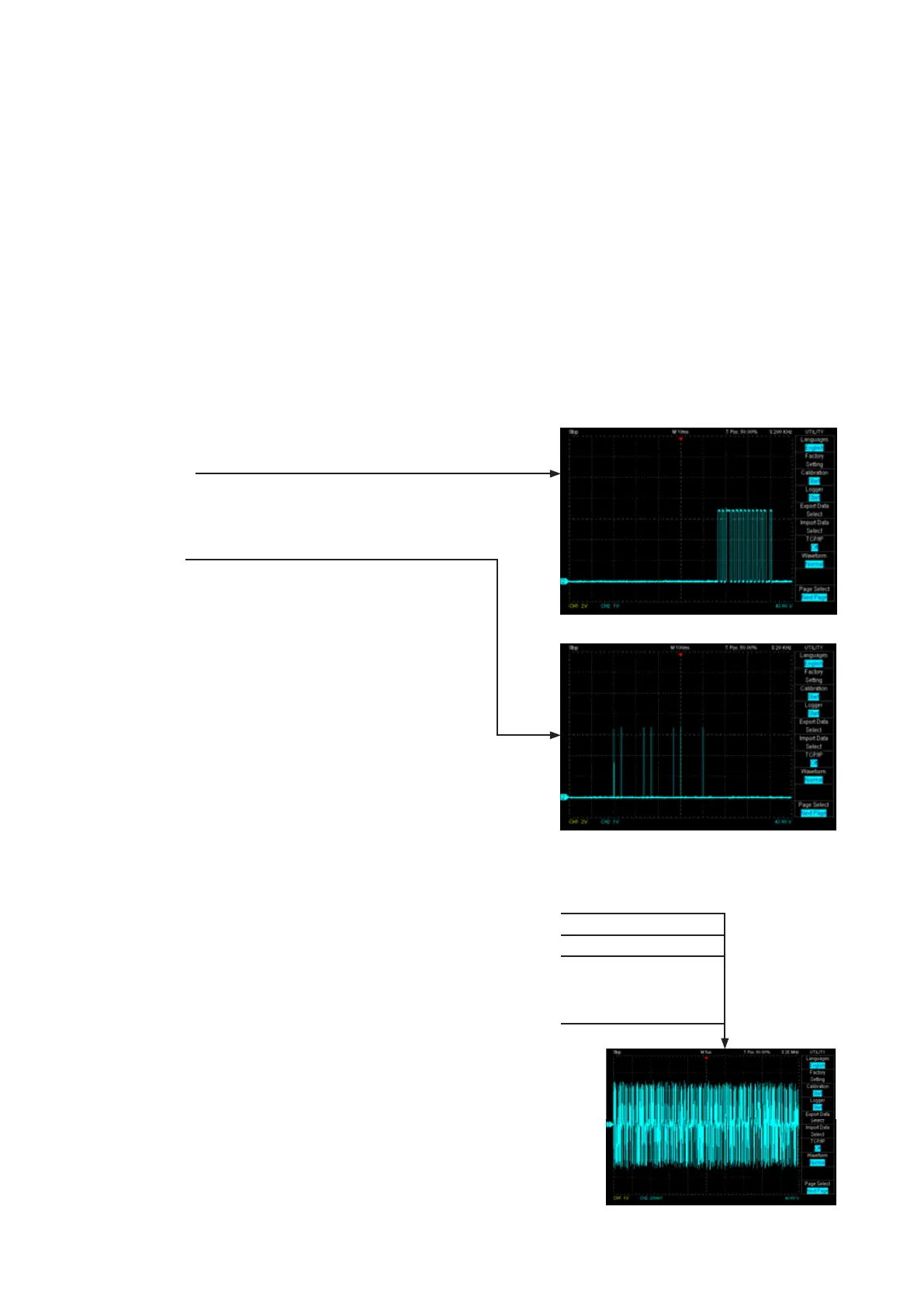

Steckerbelegung / Pin description Signalboard 71295.xxx
W1013 zum/to Basicboard W1004
Belegung identisch zu W1004 Basicboard / same pin description like W1004 Basicboard
W1025 zur Bedieneinheit / to operating unit
1 GND
2 KEY2 - 5V = keine Taste/no key, 3,6V = + Taste/key +, 3,0V = - Taste/key -, 2,4V = beide Tasten/both keys
3 OPC_Sensor - 0V = dunkel/dark, 3,3V = hell/bright
4 KEY1 - 5V = keine Taste/no key, 3,6V = M Taste/key M, 3,0V = R Taste/key R, 2,4V = beide Tasten/both keys
5 LED G/Y - 0V = orange, 3,3V = rot/red, 5V = grün/green
6 LED R/B - 0V = rot/red , 5V = orange oder grün/ orange or green
7 RSIG
8 U5SB - 5,0V-5,3V
9 LED DR W (nur Geräte mit DR+, devices with DR+ only)
- 0V = weiss an/white on, 5V = weiss aus/white off
10 3D
11 LED DR R/G (nur Geräte mit DR+, devices with DR+ only)
- ca. 5V = grün/green, 0V = rot/red, 3,3V = aus/off
W1035 zur Festplatte/ to hard disc W1135 zum/to WLAN
1 GND 1 TXP
2 SATA_TXP 2 TXN
3 SATA_TXN 3 RXP
4 GND 4 U5 - 4,95-5,25V
5 SATA_RXN 5 U5 - 4,95-5,25V
6 SATA_RXP 6 RXN
7 GND 7 GND
8 GND
9 GND
