shorter than 1500 mm; it must not exceed 50àC in any point; it is not pulled or twisted; it
cannot be choked and the entire edges, sharp corners or other similar hazards.
Before connecting the non-metallic flexible pipe, the pipe holder
and gasket supplied with the cooker and/or available form the reseller must be fitted to the
pipe/gas train on the back of the cooker.
ONLY FOR MODELS: XR96GV/C, XR96MF/C
For connection to:
- Methane gas: the pipe must have an internal diameter of 13 mm, be fitted to the pipe holder
and then blocked with a specific clamp as per current installation standards;
- Liquid gas (bottle): the pipe must have an internal diameter of 8 mm, be fitted to the pipe
holder and then blocked with a specific clamp as per current installation standards. The
bottle must be fitted with a pressure reducer as per current installation standards.
Cookers with bottle cupboard IF INSTALLATION STANDARDS PERMIT. These cookers are
designed prepared for use with bottle of liquid gas (size Ø 270 mm, height 600 mm). They are
fitted with two attachments for the gas connection: one inside the cupboard and one on the back
hand side. The bottle cupboard attachment is sealed with a cap and a gasket, while the other
end is open. If the bottle cupboard attachment is used, the cap must be replaced with the pipe

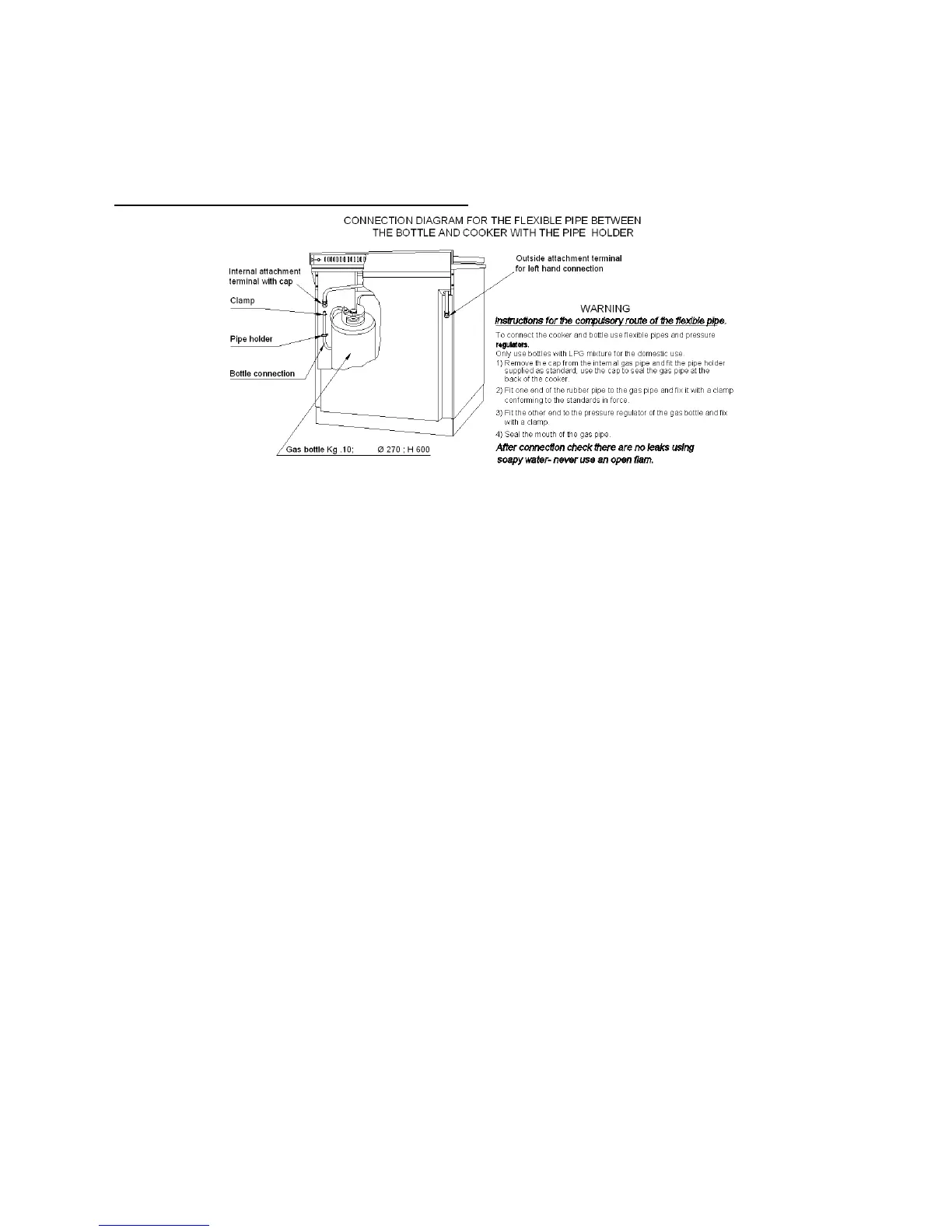

holder must be connected with a flexible pipe, which must follow the route shown in the
adjacent diagrams and/or on the adhesive plate fitted inside the bottle cupboard door. After
connection, ensure that there are no gas leaks by using a specific instrument or soapy water.
1.5. CONNECTION TO THE ELECTRICITY SUPPLY
The flexible mains lead is supplied connected to a BS 1363 fused plug fused plug fitted with a
fuse of 13 amp capacity. If you need to replace the plug for any reason, it should be carried out
as outlined below:
WARNING: THIS APPLIANCE MUST BE EARTHED.
