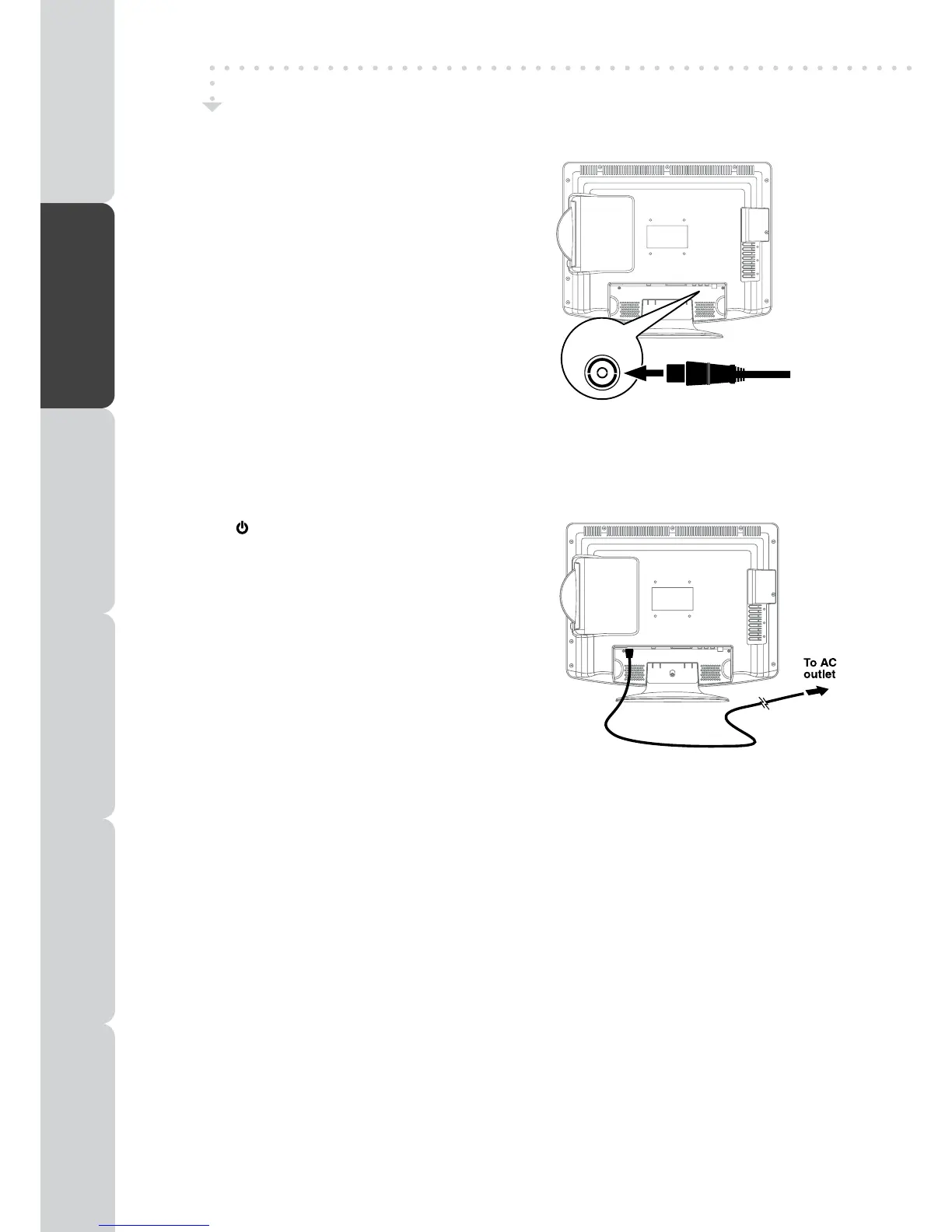

CONNECTING A TV ANTENNA/CABLE/SATELLITE
To view television channels correctly, a signal must be received
from one of the following sources:
- An indoor or outdoor aerial
- A cable system
- A satellite system
Note:
For receiving over-the-air TV broadcasts, we recommend that
you use an external fixed aerial. Should you require the use of
a temporary aerial, please ensure that you purchase an aerial
with sufficient ability to receive in weak signal areas. Only when
you are in close proximity to a transmitter will a temporary aerial
reproduce a signal as strongly as a fixed aerial.
CONNECTING A POWER CORD
• ConnecttheACpowercordintoawalloutlet.
• Pressthe / I button on the unit or remote control to
turn on the unit.
Note:
• BesuretheACpowercordisdisconnectedandtheTV
is switched off before making connections.
• Make sure that all the components are connected
correctly.
• Whenyouarenotgoingtousetheunitforalongperiod
of time, disconnect the power cord.
• Tobecompletelydisconnectthepowerinput,themains
plug of unit shall be disconnected from the mains.
• Themains plug is used as the disconnecting device.
It should remain readily accessible and should not be
obstructed during use.
CONNECTIONS
COMMON INTERFACE
The unit is equipped with a CI slot. The CI slot allows you to insert a CAM (Conditional Access Module) with an
appropriate subscription card for some pay for view services.
It is required to subscribe to a pay channel company to view the pay channels of the Digital Terrestrial
broadcasting.
Fully insert the CAM (Conditional Access Module) into the CI (Common Interface) slot on the bottom of the unit
with its label side facing you.
Important notes:
• SwitchofftheTVandunplugfromtheACpowermainsbeforeinsertorremovetheCAM.
• TheCAMshouldbecorrectlyinserted,itisimpossibletoinsertfullyifreversed.TheCAMortheTV
terminal may be damaged if the CAM is forcefully inserted.
• Some CAMs may require setting up. Refer to the module instruction manual for details of the
settings.
TV
AERIAL
Satellite,Cable,orTVaerialcableto
TV AERIAL CABLE Terminal
(cable not included)
