INSTALLATION
MOUNTING ON THE WALL
This unit is designed to be wall-mounted
with a standard 75mm x 75mm mounting
kit designed for flat-panel TVs (sold
separately). Mount this unit according to
the instructions included in the mounting
kit.
Note :
Remove the base stand before mounting
the unit on the wall.

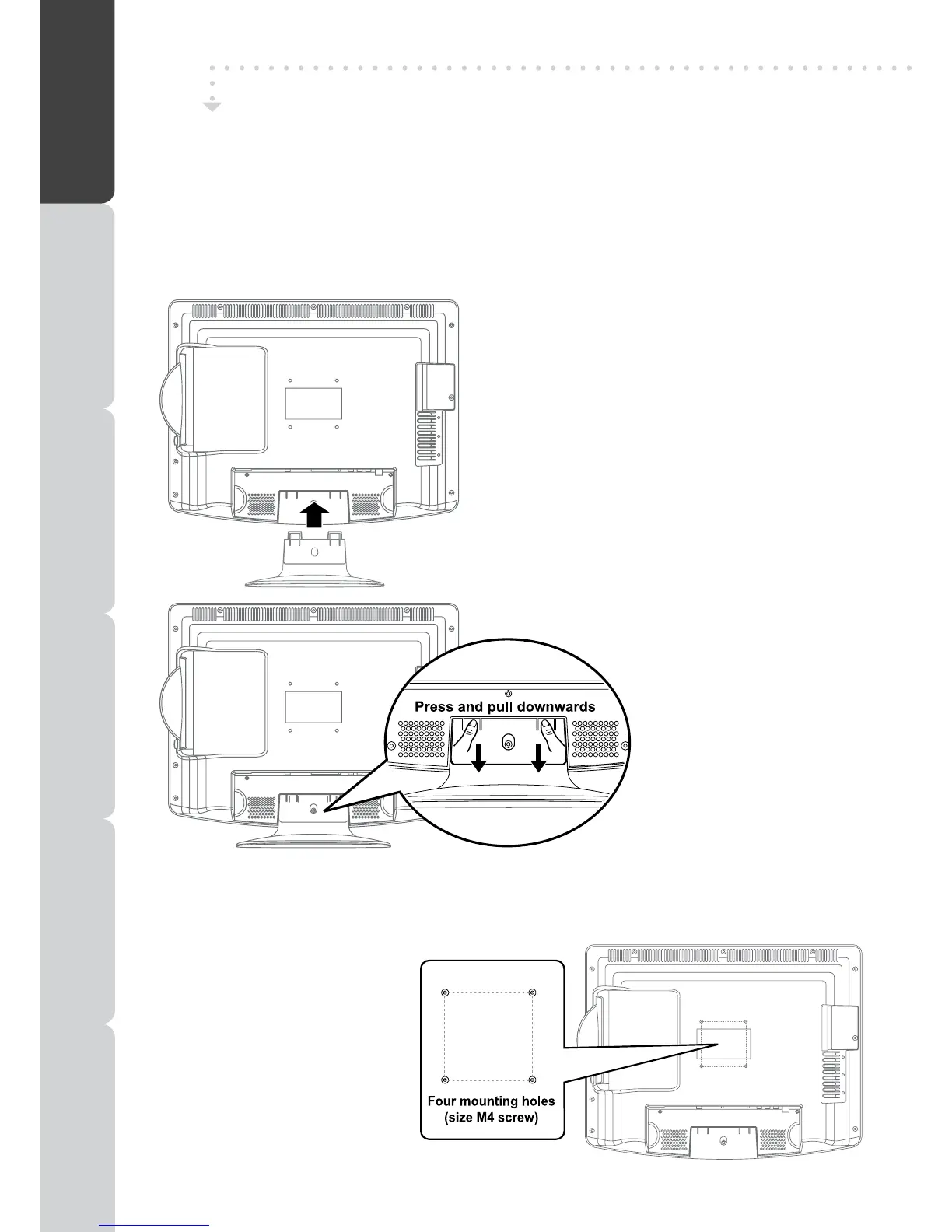

INSTALLING / REMOVING THE BASE STAND
WARNING: The LCD Display is very fragile, and must be protected at all times when removing the base stand. Be
sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact
with it. Do NOT exert pressure on the front of the unit at any time because the screen could crack.
1. Disconnect all cables or cords connected to the unit.
2. Lay the unit down on a flat surface with the back side facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam) beneath the screen.
4. To remove the base stand, keep
pressing the locking area of the
base stand and pull downwards to
release the base stand.
3. To install the base stand, place the base stand on the
mounting slot, push the stand till it locks.
75mm
75mm
