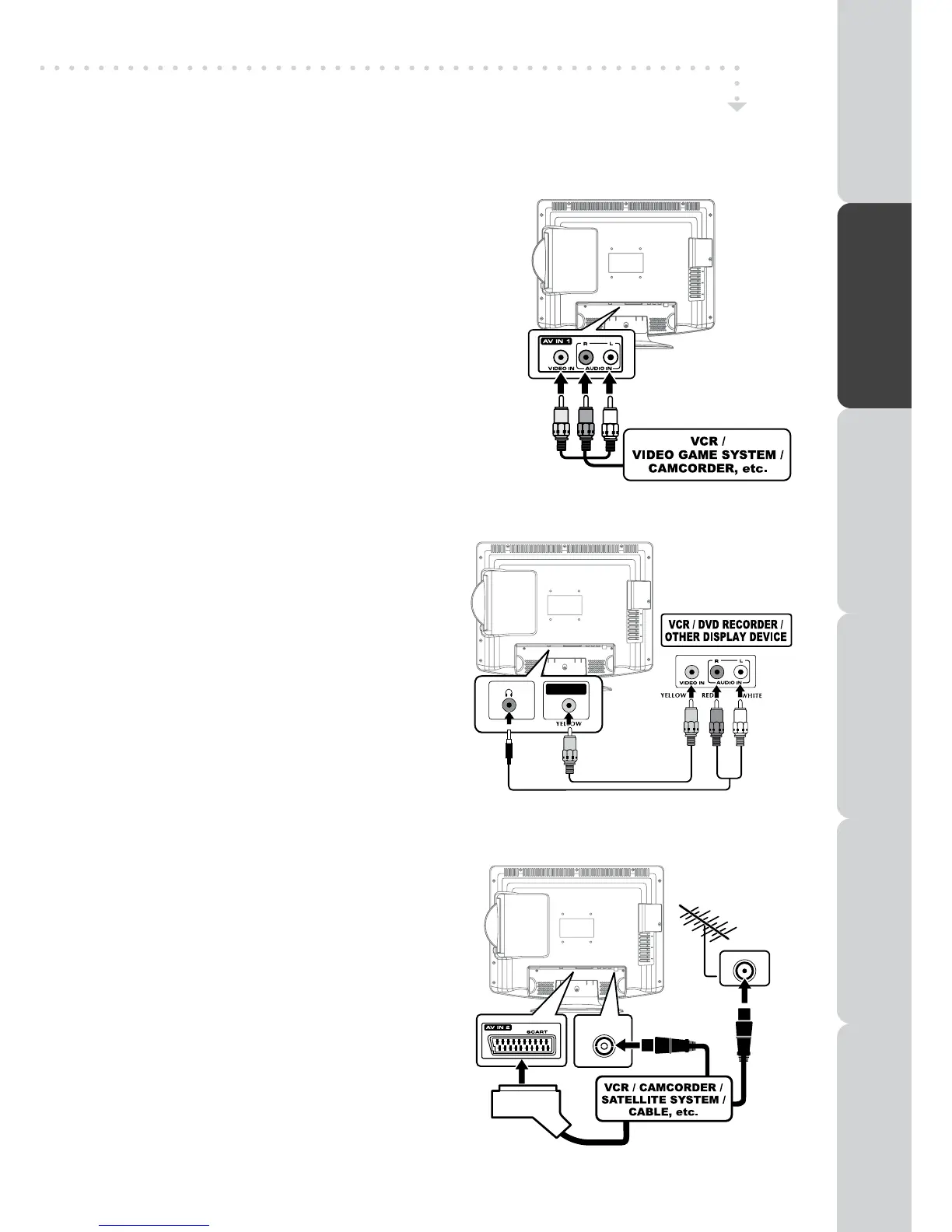

CONNECTING TO DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE)
VIDEO OUTPUT
To connect to A/V devices such as a VCR, camcorder or video game system.
Connect to a VCR / Video Game System /
Camcorder
Connect the AUDIO / VIDEO cable (not included)
as shown.
Make sure you connect the cable from the other
device (AUDIO and VIDEO OUT) to this unit
(AUDIO and VIDEO IN). Press the FUNCTION
or AV button to select AV1 mode.
Note:
Please refer to the user manual for the other device
for more information.
To AUDIO /
VIDEO OUT jacks
To AUDIO /
VIDEO IN
jacks
(AV IN 1)
CONNECTIONS
CONNECTING TO DEVICES WITH SCART
Devices with RGB output must be connected to
the SCART input:
Connects the SCART from the device to the
corresponding SCART on this unit (SCART cable
not included) as shown.
Make sure you connect both to SCART to
SCART.
To operate the connected device and play the
source, first press the FUNCTION or AV button
to select the AV2/SCART mode.
SCART
CABLE
IfyourVCRpermits,then
connect your aerial to
your VCR and VCR RF to
your TV
CONNECTING TO DEVICES WITH A VIDEO INPUT
Connect the AUDIO cable (included) and VIDEO
cable (not included) as shown.
Make sure you connect the cable from the
other device (AUDIO and VIDEO IN) to this unit
(Headphone (AUDIO LINE OUT) jack and VIDEO
OUT). Press the FUNCTION or DVD button to
select DVD mode.
Note:
Please refer to the user manual for the other device
for more information.
VIDEO CABLE
AUDIO
CABLE
