Logik L22DVDW10 User Manual

GB-15
GB
Connections

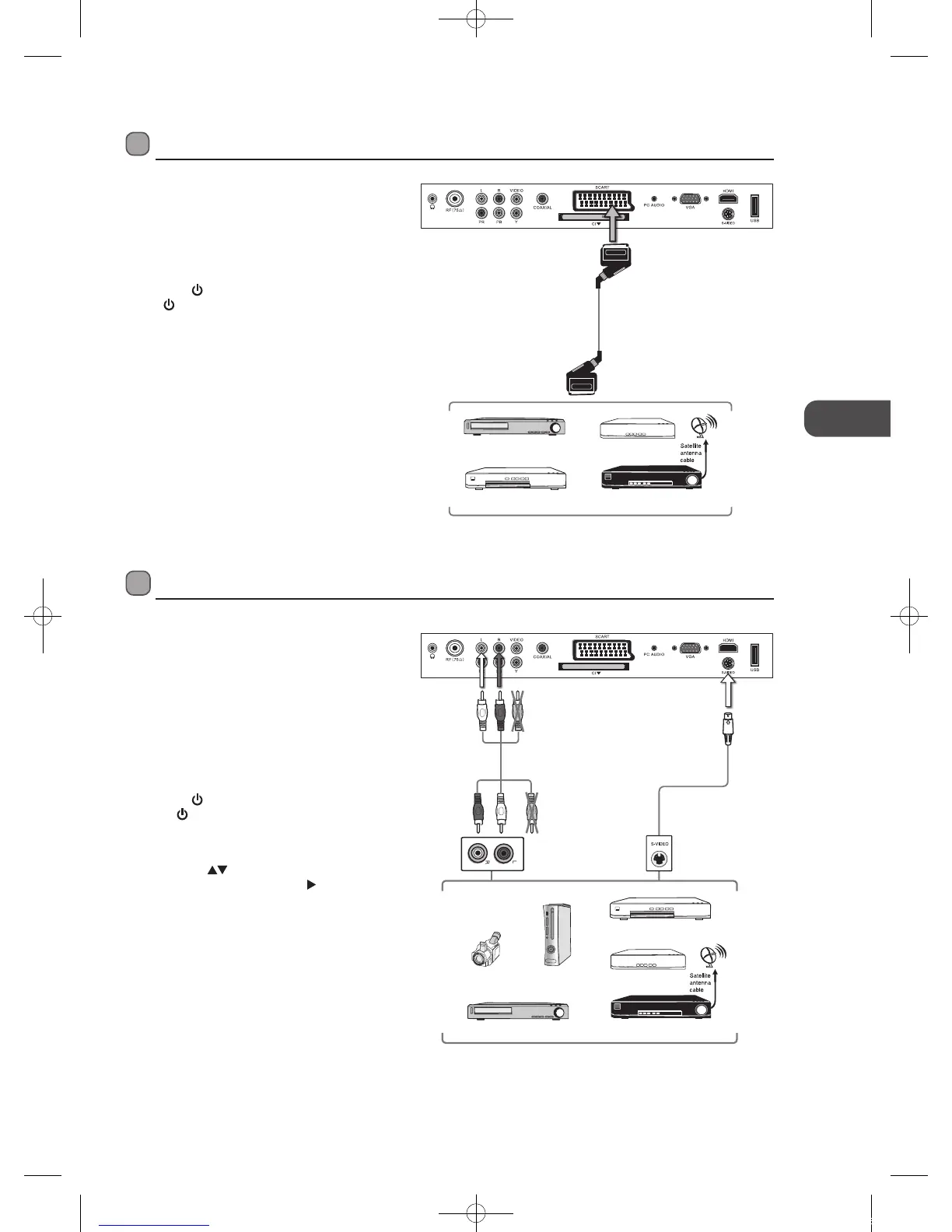

Connecting an AV Device with S-Video Cable
1. Use a S-Video cable to connect the TV’s S-VIDEO
input socket to an external AV device’s S-VIDEO
output socket.
2. Use the supplied AV cable to connect the TV’s
AUDIO(L/R) input sockets to the external AV
device’s audio output sockets. (Audio Left = white,
and Audio Right = red)
3. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
at the side of the TV.
4. Press the
/ I button on the top panel of the TV
or the
button on the remote control to turn on
your TV.
5. Press the SOURCE button to display the Source
List. Use the
buttons to select S-VIDEO and
then press the OK button or the
button to
confirm.
Connecting an AV Device with SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch at
the side of the TV.
3. Press the
/ I button on the top panel of the TV or
the
button on the remote control to turn on your
TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Right Rear Side View of TV
CARD FACE FRONT
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
Right Rear Side View of TV
CARD FACE FRONT
Satellite Receiver
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
S-Video Cable
(not included)
AV Cable
(included)
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
Red (R)
White (L)
L22DVDW10_B20_IB_New_110110_Annie.indd 15 11年1月10日 下午5:17
