Connections

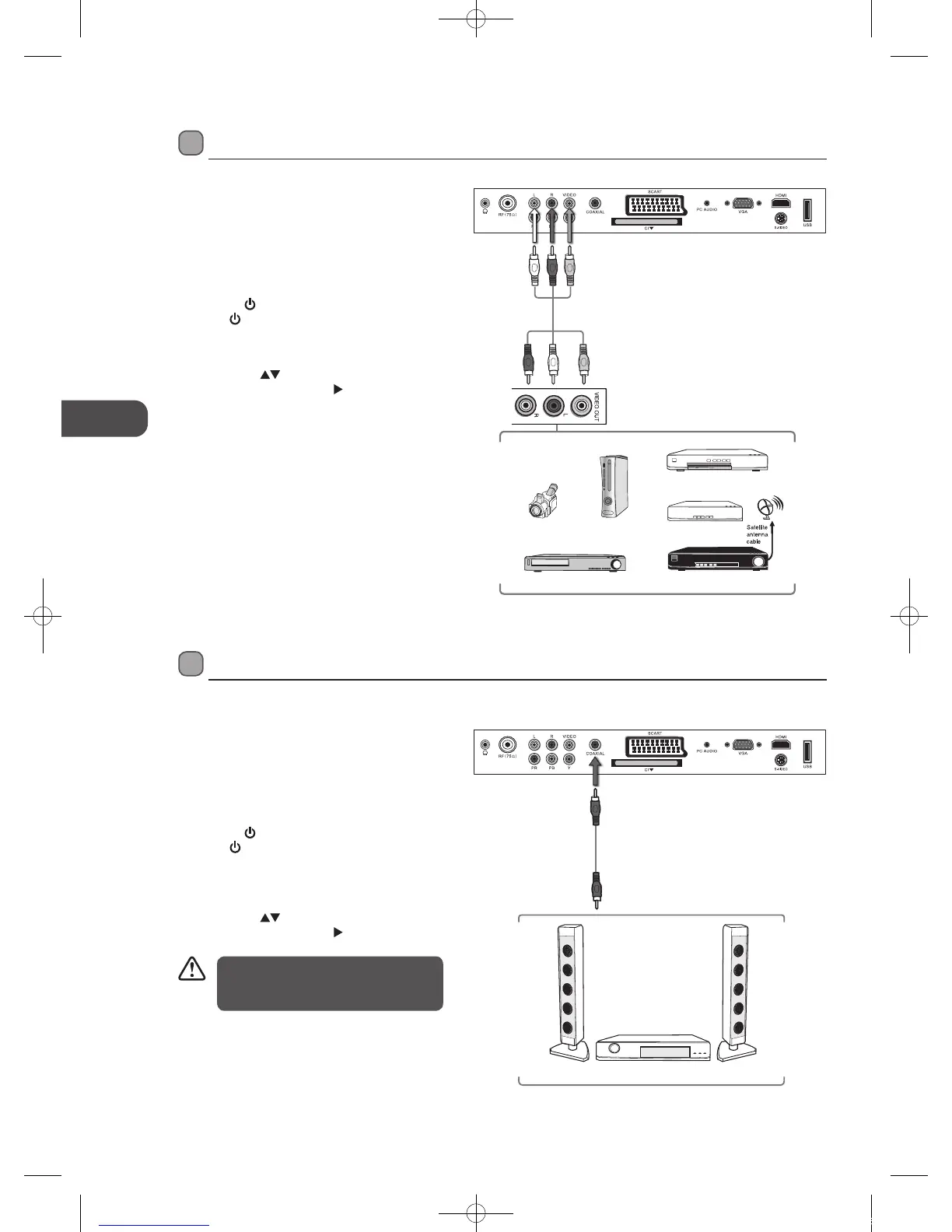

Connecting a Coaxial Audio Receiver
For better sound quality, you may want to play the DVD audio through your multi-channel audio receiver. (DVD mode)
1. Use an audio cable to connect the TV’s COAXIAL
output socket to an external audio receiver’s
audio coaxial input socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
at the side of the TV.
3. Press the
/ I button on the top panel of the TV
or the
button on the remote control to turn on
your TV and your audio receiver and then set it to
Coaxial mode.
4. Press the SOURCE button to display the Source
List. Use the
buttons to select DVD and then
press the OK button or the
button to confirm.
Right Rear Side View of TV
CARD FACE FRONT
Audio Cable
(not included)
Audio Receiver
Connecting an AV Device with Composite Cable
1. Use the supplied AV cable to connect the TV’s
AUDIO(L/R)/VIDEO input sockets to an external AV
device’s composite audio/video sockets. (Video =
yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
at the side of the TV.
3. Press the
/ I button on the top panel of the TV
or the
button on the remote control to turn on
your TV.
4. Press the SOURCE button to display the Source
List. Use the
buttons to select AV and then
press the OK button or the
button to confirm.
Satellite Receiver
Right Rear Side View of TV
CARD FACE FRONT
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(included)
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
Red (R)
White (L)
The TV’s volume control will have no
effect. You may control the audio level via
the Audio Receiver.
