Preparation

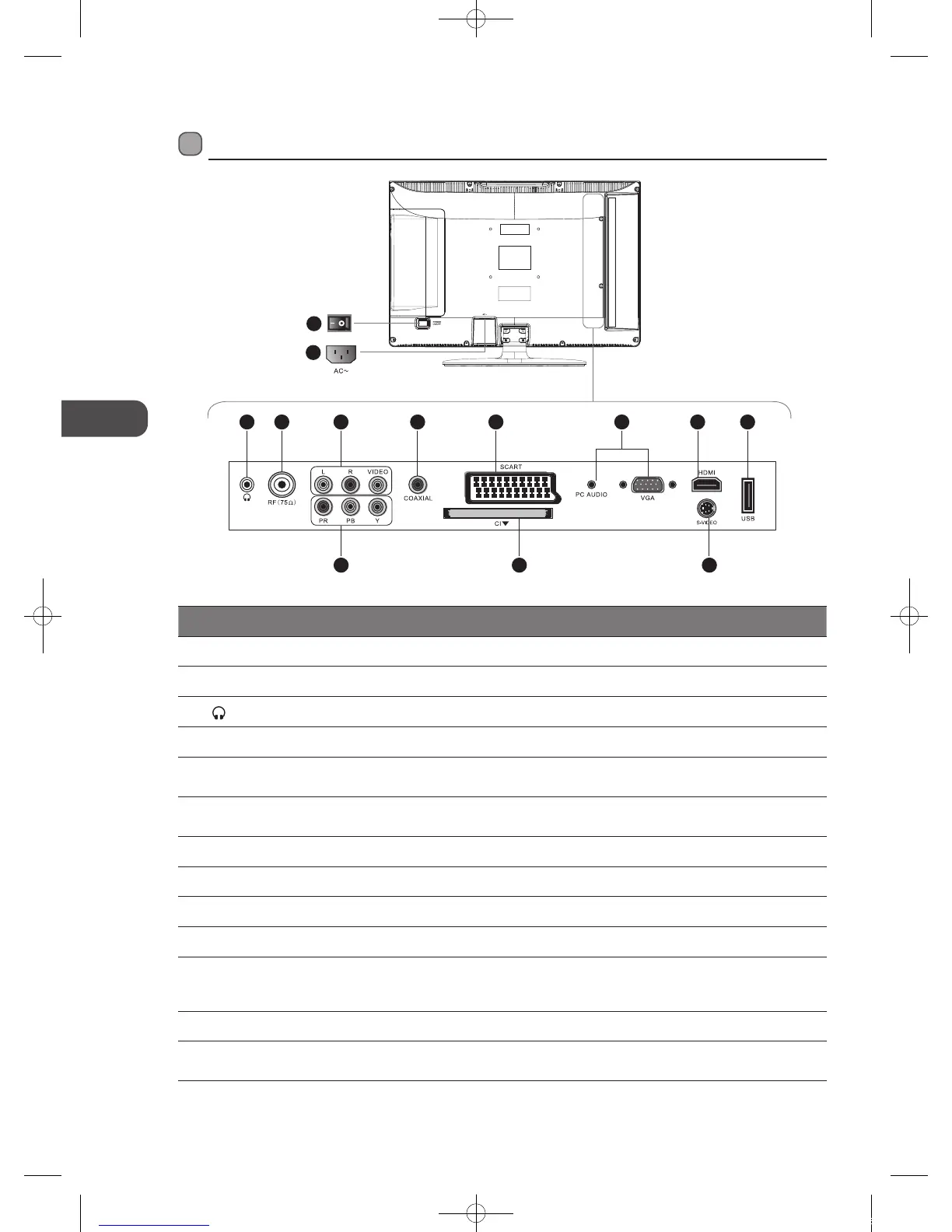

Rear View and Sockets
Item Description
1 POWER ON/OFF Switch on the POWER ON/OFF switch to turn the TV to standby mode.
2 AC~ Connect the mains cable to the mains socket.
3
Connect earphones for private listening.
4 RF (75 ) Connect to the aerial socket on the wall with the RF coaxial cable.
5 VIDEO / AUDIO (L/R)
Connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
6 Y, PB, PR
Connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
7 COAXIAL Connect to the audio socket on the digital/standard 5.1 audio system.
8 SCART Connect to a VCR, DVD Player, or other AV devices with SCART output socket.
9 CI (Common Interface) Slot Allows the insertion of a Common Access Module. (Refer to page 32 for details.)
10 VGA / PC AUDIO Connect to a computer or other devices with a VGA interface.
11 HDMI
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all digital audio/
video interface between this TV and any HDMI-device, such as a set-top box, Blu-ray
player, and AV receiver.
12 S-VIDEO Connect to a VCR, DVD Player, or other AV devices with S-Video output sockets.
13 DVR USB port
Allows the insertion of a USB storage device. You can view media files or record DTV
programmes through this port. (Media Mode)
CARD FACE FRONT
2
1
8 11 13105 73 4
96 12
ON OFF
