GB
13

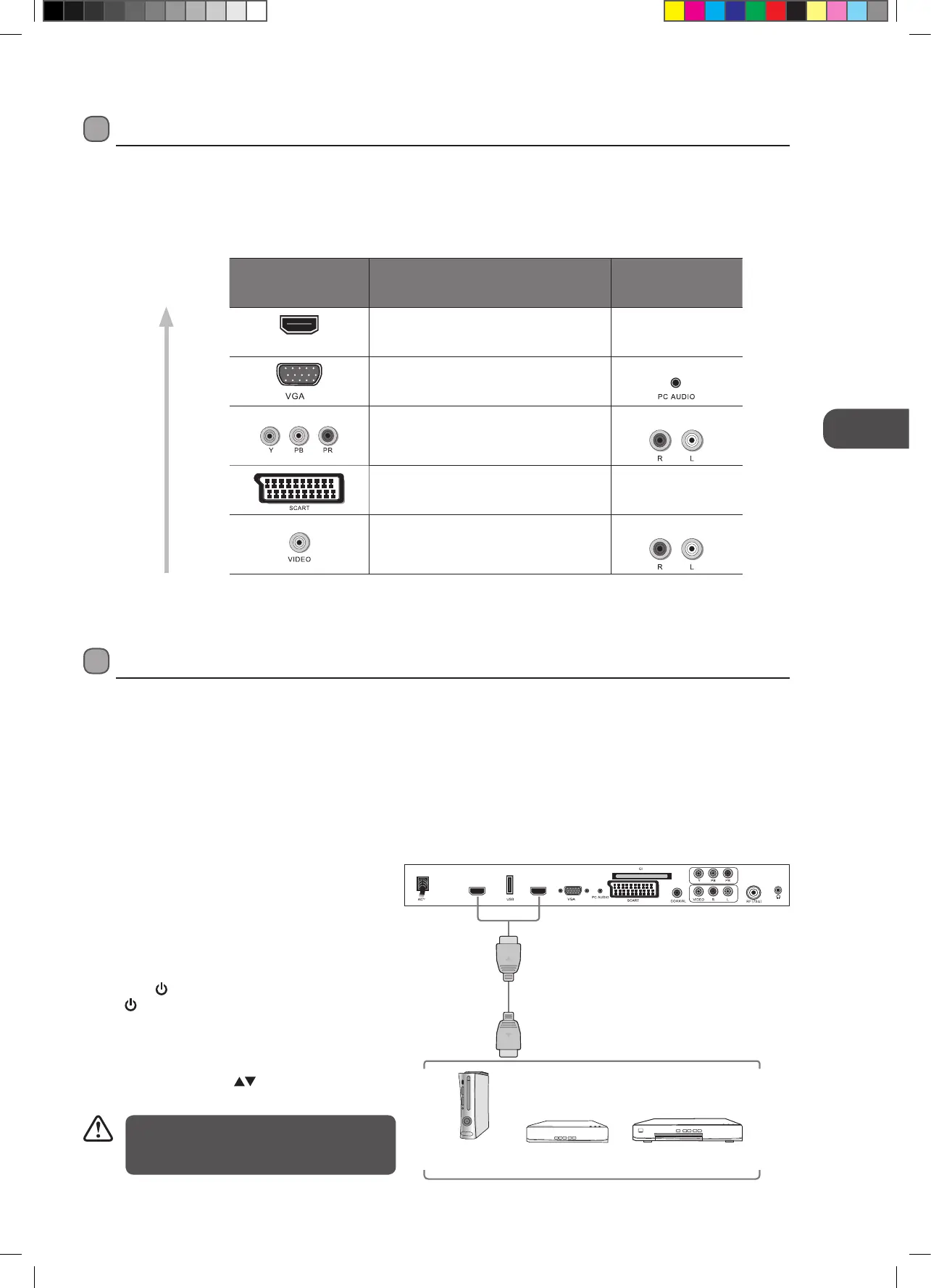

Connections
Connecting an AV Device with an HDMI Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection)
Protocol.
• The TV has a total of 2 HDMI input sockets, please make sure the correct input source is selected corresponding to your
connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.
1. Use a HDMI cable to connect the TV’s HDMI1 / HDMI2
input socket to the external AV device’s HDMI output
socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located on the right side under the frame.
3. Press the
/ I button on the top panel of the TV or
the
button on the remote control to turn on your
TV.
4. Press the SOURCE button on the top panel of the TV
or the INPUT button on the remote control to display
the Source List. Use the
buttons to select HDMI1
or HDMI2 and then press the OK button to confirm.
Making Video and Audio Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are
complete.
Signal Type
Separate Audio
Connection Required
HDMI1 & 2
HDMI
(480i/480p/576i/576p/720p/1080i/1080p)
No
VGA
Yes
Component Video
(480i/480p/576i/576p/720p/1080i/1080p)
Yes
SCART (RGB Input) No
Composite Video
Yes
Best Video
Performance
Although this TV is able to connect to a HDMI
device, it is possible that some devices may
not operate correctly.
Connections
Rear View of TV
HD MI1HD MI2
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
HDMI Cable
(not included)
L24DVDB11_IB_110429.indd 13 29/04/2011 5:10 PM
