Logik L40LCD11 User Manual

GB
14
Connections
Connecting an AV Device with a Component (YPbPr) Cable
1. Use a component cable to connect the TV’s YPbPr
input sockets to an external AV device’s component
output sockets.
2. Use an AV cable to connect the TV’s AUDIO(L/R) input
sockets to the external AV device’s component audio
output sockets. (Audio Left = white, and Audio Right
= red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the rear of the TV next to the
mains cable.
4. Press the
/ I button at the front right side of the
TV or the
button on the remote control to turn on
your TV.
5. Press the SOURCE button at the front right side of
the TV or the INPUT button on the remote control to
display the Source List. Use the
buttons to select
YPbPr and then press the OK button to confirm.
Connecting a Computer with a VGA Cable
1. Use a VGA cable to connect the TV’s VGA input
socket to a computer’s VGA output socket. Use an
audio cable to connect the TV’s PC AUDIO input
socket to the computer’s audio output socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the rear of the TV next to the
mains cable.
3. Press the
/ I button at the front right side of the
TV or the
button on the remote control to turn on
your TV.
4. Press the SOURCE button at the front right side of
the TV or the INPUT button on the remote control to
display the Source List. Use the
buttons to select
PC and then press the OK button to confirm.
• The best resolution is 1920 x 1080.
• If your computer is set to shut down after a
few minutes of idle mode, the TV will also
switch to standby due to no signal being
received, this is to save energy. Press the
/I button at the front right side of the TV
or the
button on the remote control to
restart the TV.

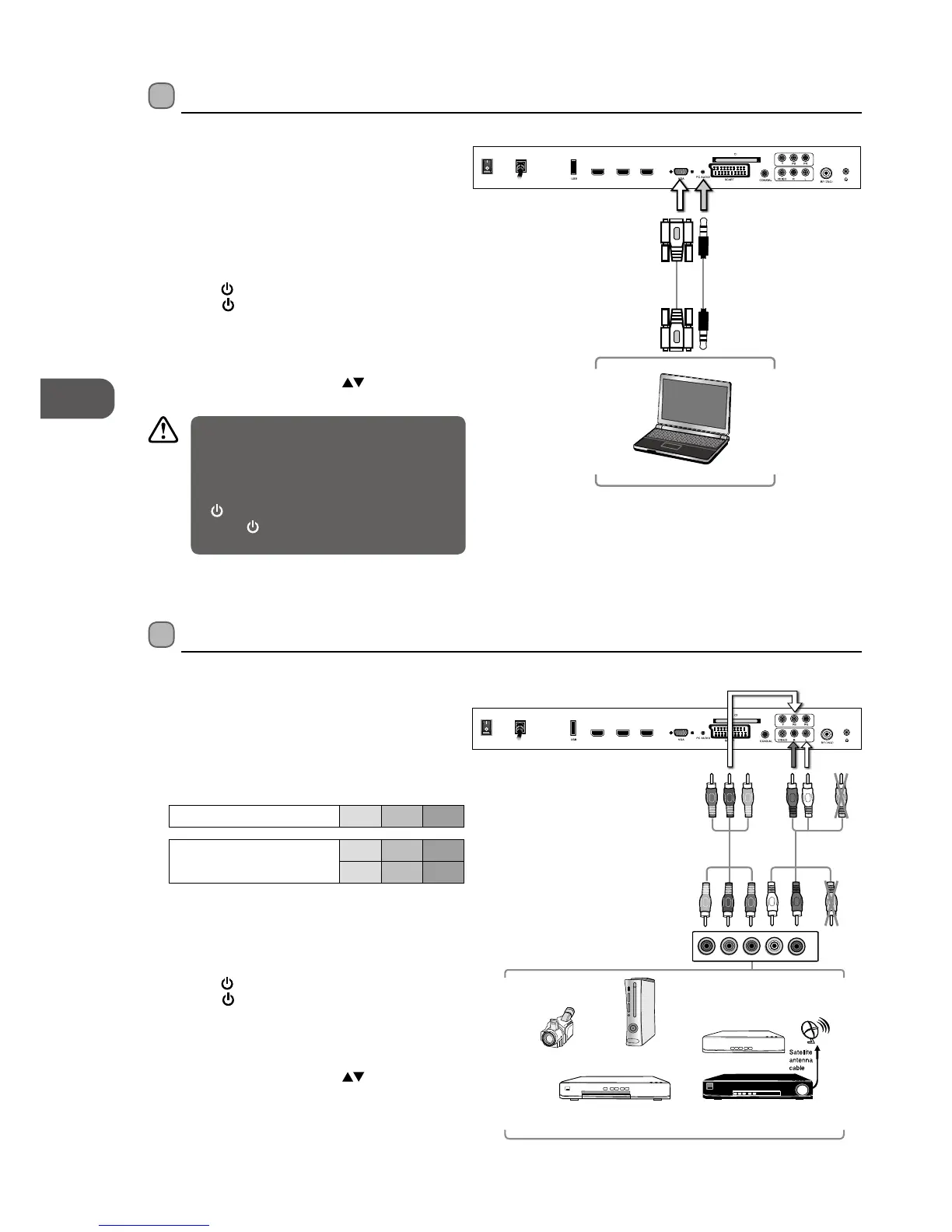

Rear View of TV
VGA Cable
(not included)
Audio Cable
(not included)
HDM I1
HDM I3
HDM I2
POW ER
ON/ OFF
AC
Computer
Rear View of TV
HDM I1
HDM I3
HDM I2
POW ER
ON/ OFF
AC
L
R
COMPONENT
OUT
Y
Pr
Pb
Satellite Receiver
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
AV Cable
(included)
Pb/Cb
Pb/Cb
Y
Pr/Cr
Pr/Cr
Y
Component
Cable
(not included)
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
Red (R)
White (L)
