Connections

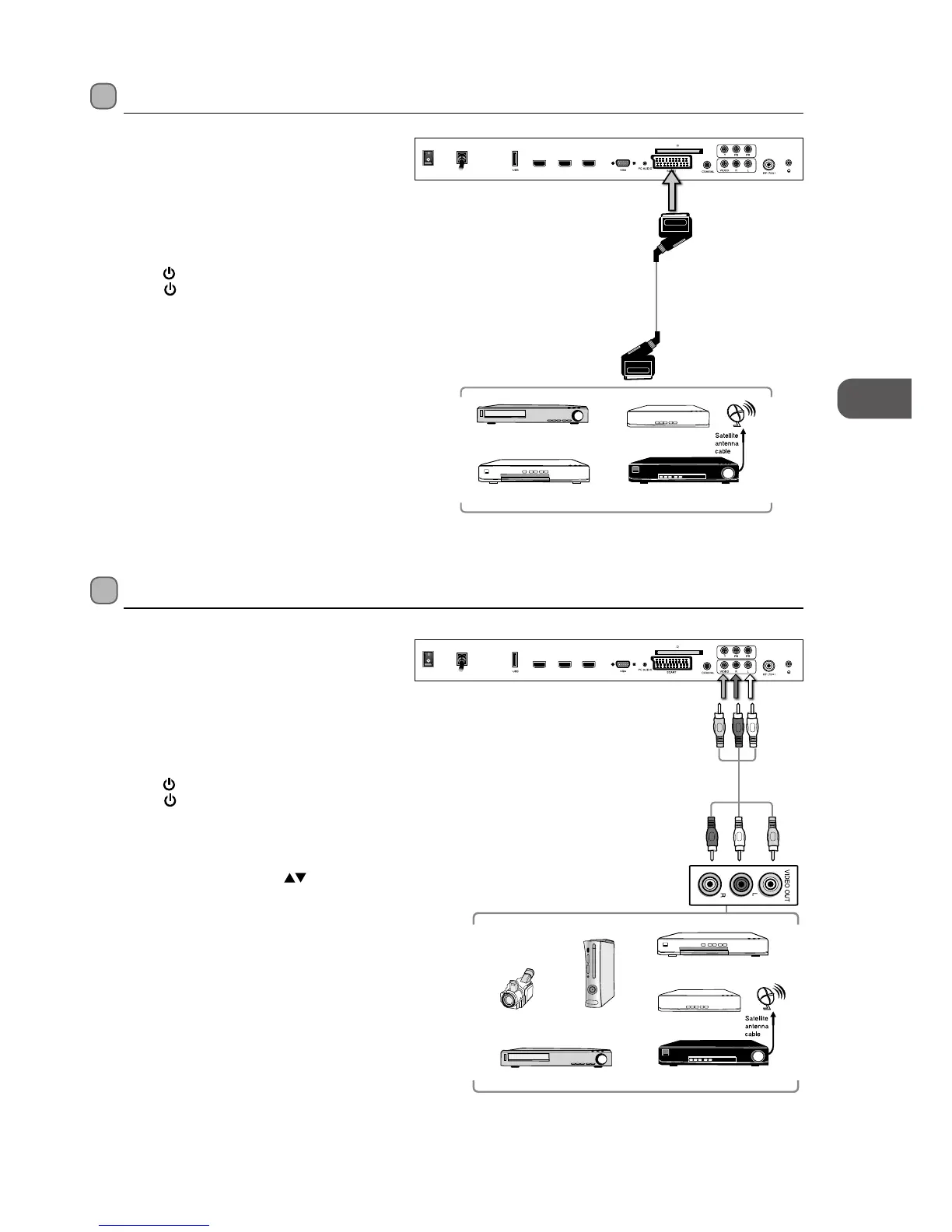

Connecting an AV Device with Composite Cable
1. Use the supplied AV cable to connect the TV’s
AUDIO(L/R)/VIDEO input sockets to an external AV
device’s composite audio/video sockets. (Video =
yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the rear of the TV next to the
mains cable.
3. Press the
/ I button at the front right side of the
TV or the
button on the remote control to turn on
your TV.
4. Press the SOURCE button at the front right side of
the TV or the INPUT button on the remote control to
display the Source List. Use the
buttons to select
AV and then press the OK button to confirm.
Connecting an AV Device with a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the rear of the TV next to the
mains cable.
3. Press the
/ I button at the front right side of the
TV or the
button on the remote control to turn on
your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Rear View of TV
HDM I1
HDM I3
HDM I2
POW ER
ON/ OFF
AC
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
Satellite Receiver
Rear View of TV
HDM I1
HDM I3
HDM I2
POW ER
ON/ OFF
AC
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(included)
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
Red (R)
White (L)
To Next Page
