GB-4
Installation
Before beginning any installation work ensure the mains power has been turned o.

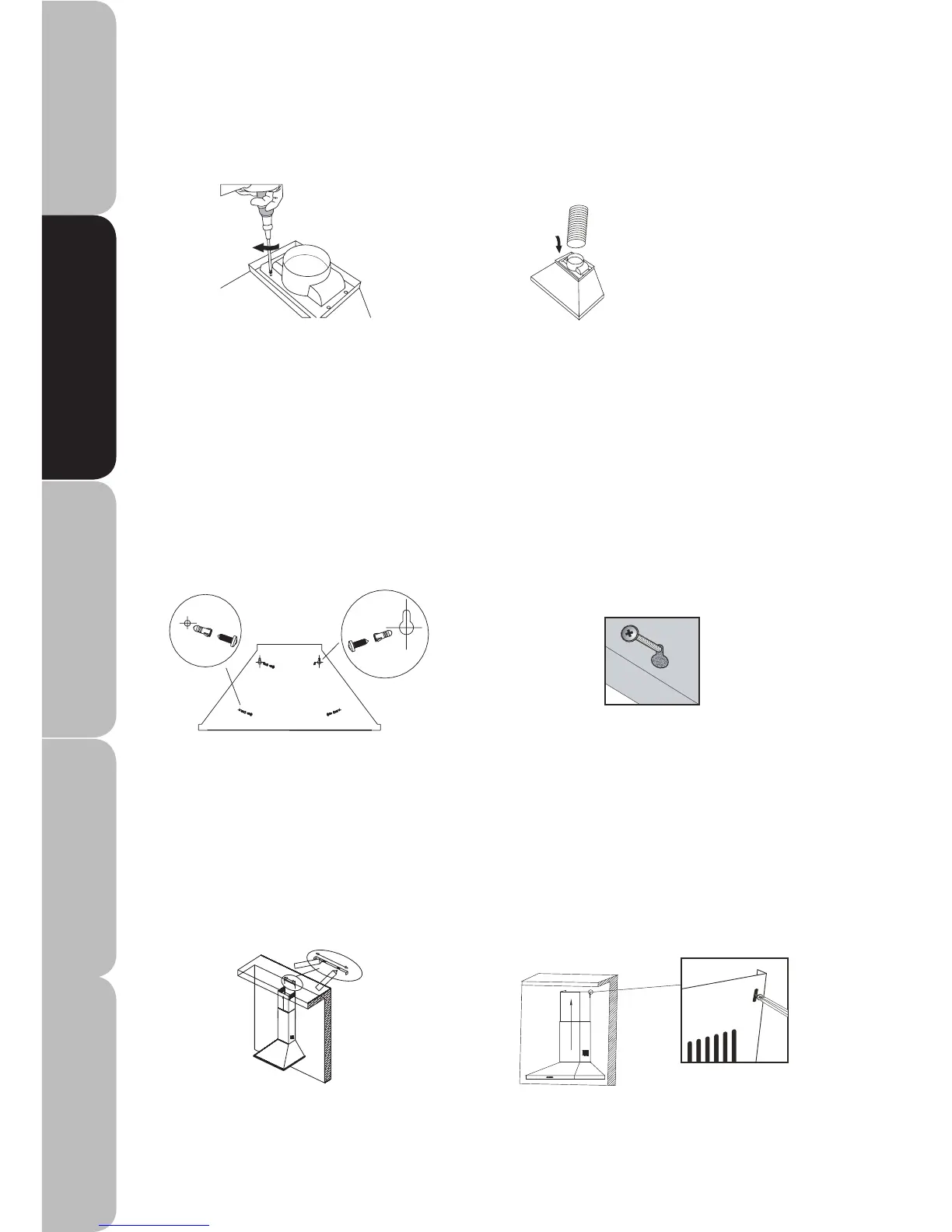

Extracted Air Installation
1. Using a Phillips screwdriver x the ducting
hose connector onto the air outlet of the hood.
2. Connect the hose (not supplied) to
the air duct. Use the adaptor provided to
connect to a 125mm hose (not supplied).
(refer to g.1)
g.1
3. The ducting can pass through your wall to the outside.
Stencil
Use the stencil provided to help position the hood onto the wall directly below the ducting.
NOTE: Take extreme care when drilling holes into your wall to avoid hidden electrical wiring.
1. With the stencil positioned on the wall, drill
4 holes onto the back wall. Push 4 raw plugs into
the drill holes and partially screw in the top 2
screws. (leaving 10mm unscrew)
2. Fix the hood onto the wall by positioning
the upper 2 screws through the key holes
on the back of the hood.
3. Attach the lower part of the hood by removing the lter panels to gain access to the lower safety screw holes.
Attaching the Chimney ue wall bracket
1. Using the wall bracket as a template, drill 2 holes into the wall and push raw plugs into the drill holes.
2. Place the wall bracket over the raw plugs
and screw into position.
3. Screw the inner chimney ue section to the
wall bracket by ST 4X10 screw.
