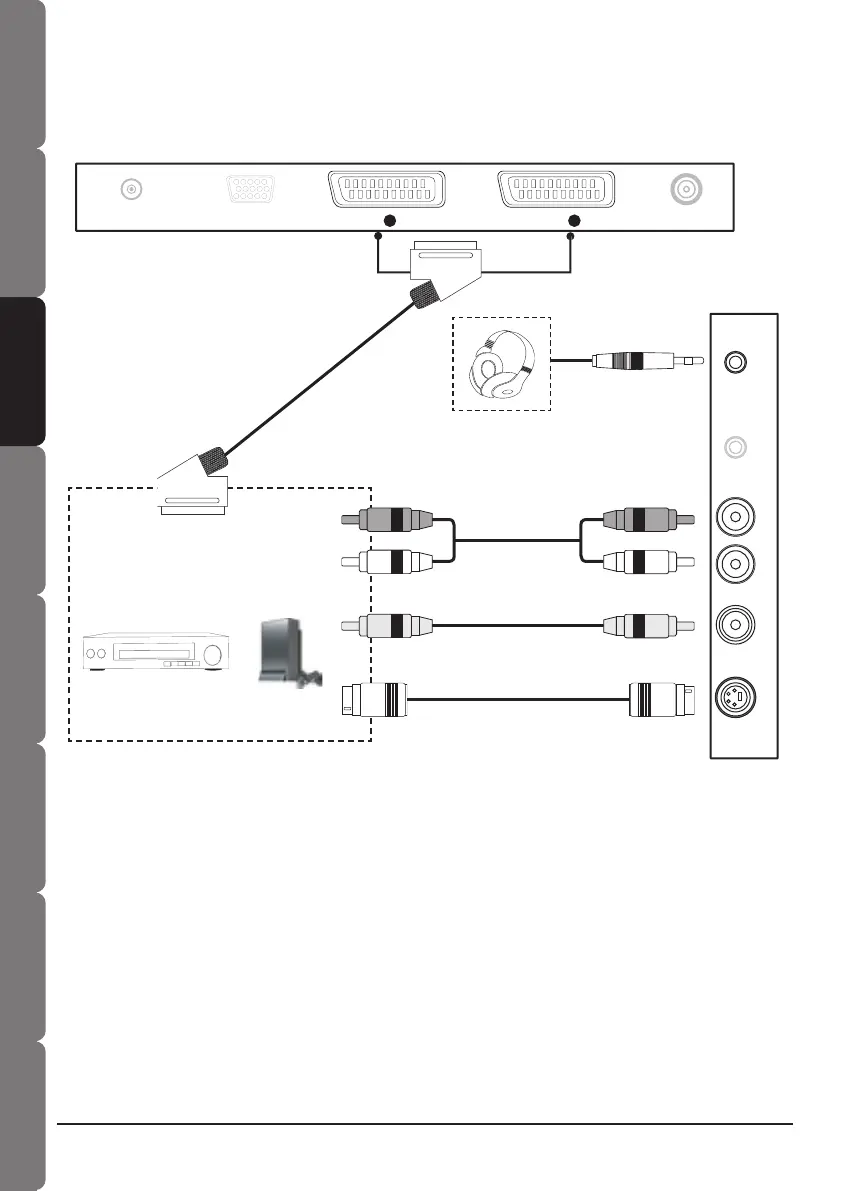

Connecting to external audio/video devices
• Use the Audio/Video/S-video/Scart cables to connect with external audio/video signal sources.
Example: Game/DVD Player/
DVD Recorder/Camcorder/VCR
or
Audio cable
(not supplied)
S-video cable
(not supplied)
SCART
(not supplied)
Video cable
(not supplied)
Red
White
Yellow
Red
White
Yellow
DC IN PC IN SCART
1
IN/OUT SCART
2
IN ANTENNA IN
SVIDEO IN VIDEO IN AUDIO IN PC AUDIO IN EARPHONE
Earphone
(not supplied)
