9

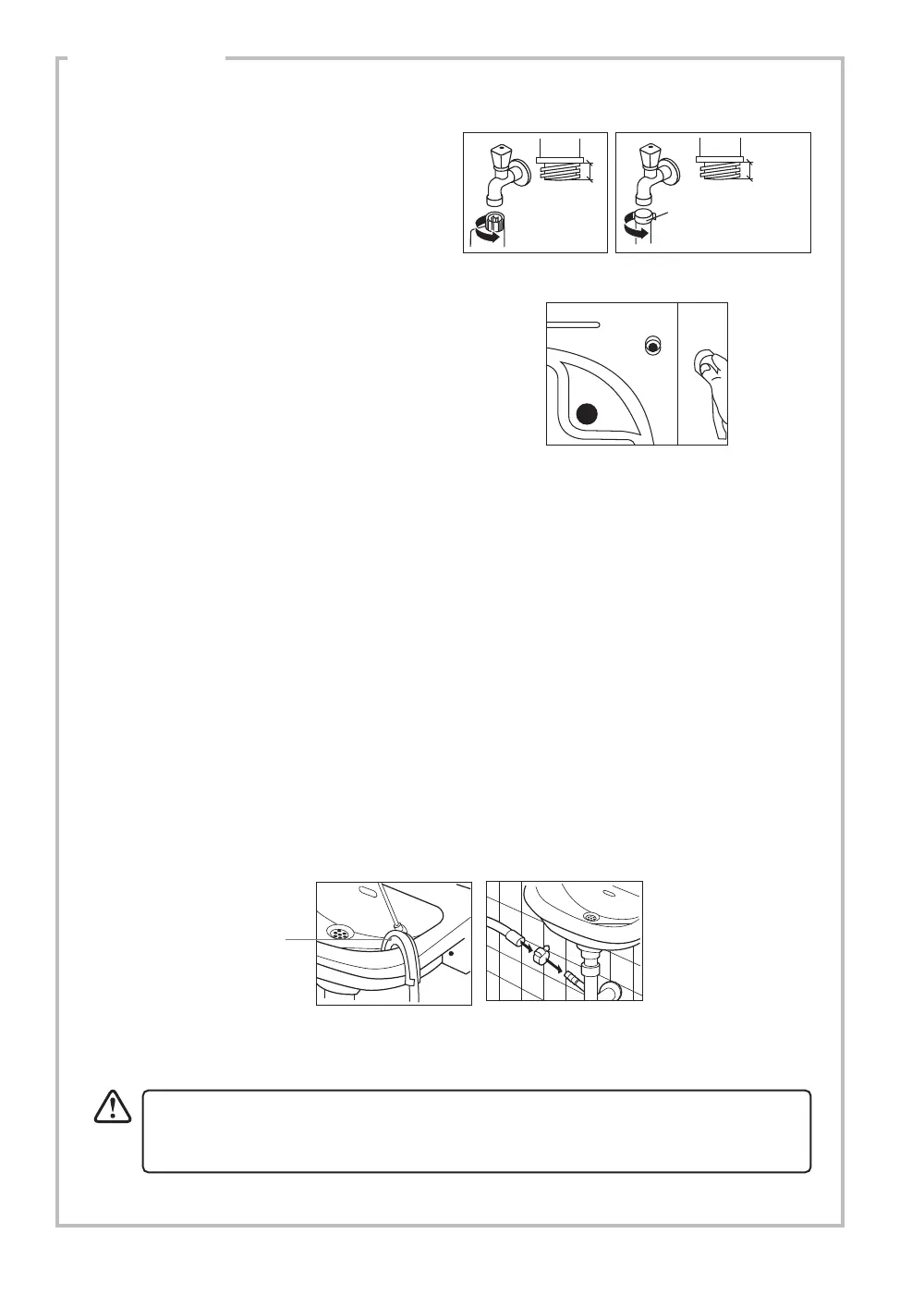

Connecting the Water Supply Hose
1. To prevent leakage from the connection
joints, ensure the rubber washer seals
are tted to each end of the water supply
hose. Do not use without the seals in
place.
2. Fit the straight end of the water supply
hose to the cold water tap.
3. Connect the angled end of the white
headed hose to the water inlet valve on
the machine. Hand tighten the plastic
parts of the connections. If you are
unsure, please call a qualied plumber for
safer connections.
4. Open the tap slowly and check that there
are no leaks around the connection joints.
Water Drain Hose
U-Shape Holder
Draining to a wash-basin Draining to a drain hose
Points to remember:
• Don’t twist, pull out or bend the drain hose.
• Your washing machine should be no more than 85cm from the drain outlet.
• The water drain hose should be mounted at a height of minimum 60 cm, maximum 100
cm from the ground.
Draining to a sink or wash-basin
• Secure the drain hose in position, so it can’t drop out of the basin.
• Don’t block the basin’s drain outlet, and make sure that the drainage through it is
sucient to prevent overowing.
• Don’t let the tip of the drain hose dip into the drained water, as this can cause the water to
ow back into the washing machine.
min. 10 mm
min. 10 mm
Plastic joint
Before connecting to the waste pipe, make sure to check the waste pipe and remove
any stopper or blockage inside, otherwise the unit may not be able to expel the
waste water properly.
