INSTALLATION
10
Installing into Kitchen Furniture

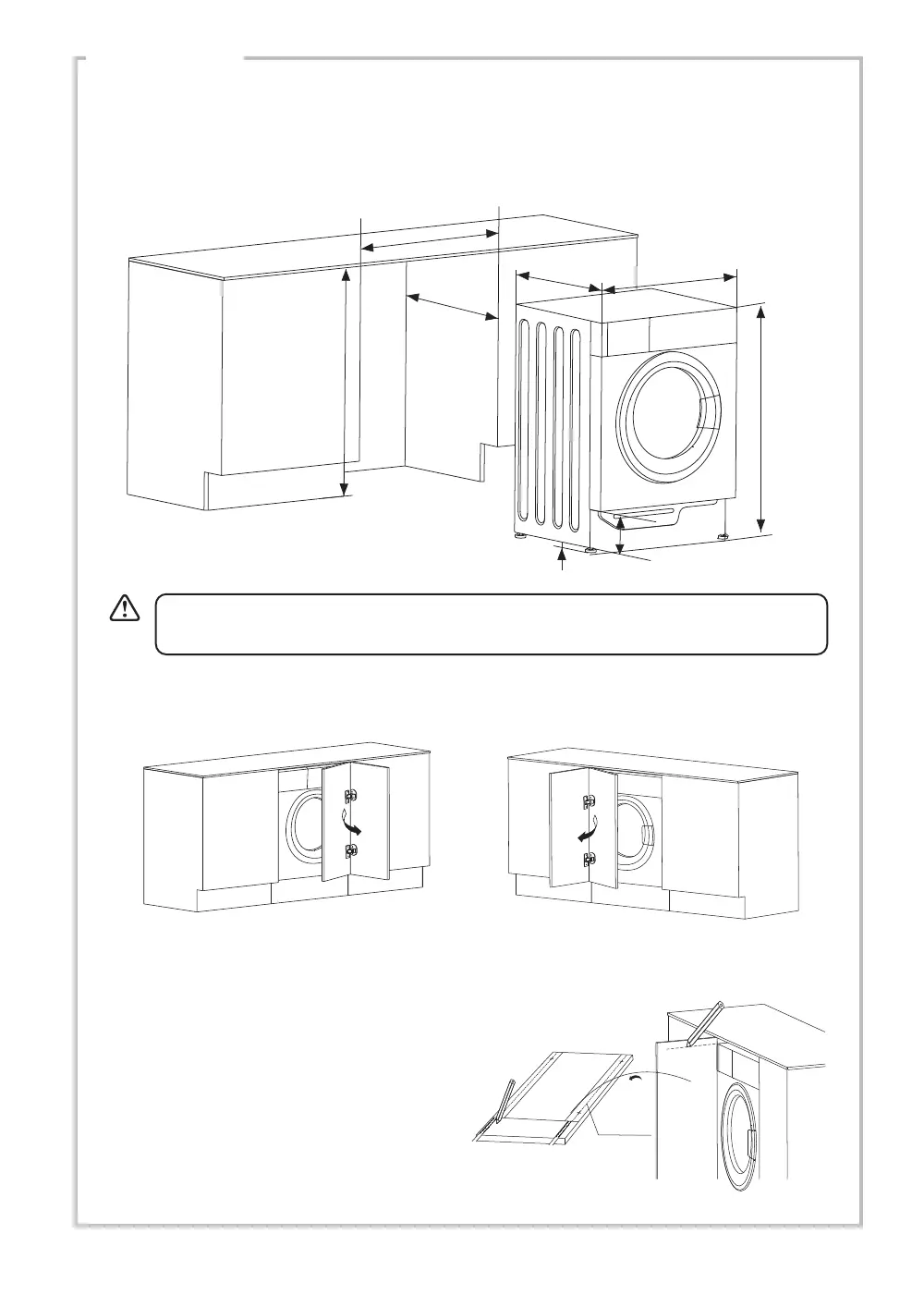

This appliance is designed to be built into kitchen furniture. Follow the measurement below
for correct installation.
830mm
600mm
580mm
550mm
595mm
825mm
17.5mm
152.5mm
During installation, make sure the hoses are placed out of the way. This can prevent
the hoses from being kinked or trapped.
This appliance is also designed for the assembled cabinet door (16-22 mm thick) to open
from the left or right.
Door open from left to right Door open from right to left
1. Mark on the cabinet door the
measurement and dimension of the
cupboard and washing machine.
Door Drill
Template
