Logitech F540 Getting Started Guide

8 English
English 9
Logitech
®
Wireless Headset F540
Getting started with
Alternative: If you want to use your audio out from your TV
or AV receiver
If the recommended steps are inconvenient or don’t work on your system setup, please
follow the steps below to connect the wireless base station to your primary audio system:
1. Using the Logitech RCA-to-RCA passthrough cable, connect one end to the PS3 ports
on the back of the wireless base station.
2. Connect the other end of the cable to the red and white stereo audio-out ports on
the back of your primary audio system.
1
2
If you use PS3 analog AV cable for audio
If you are using the red and white stereo connectors of the PS3 AV cable to connect
your PS3 to your primary audio system, use the following wireless base station setup or
the alternative on page 9.

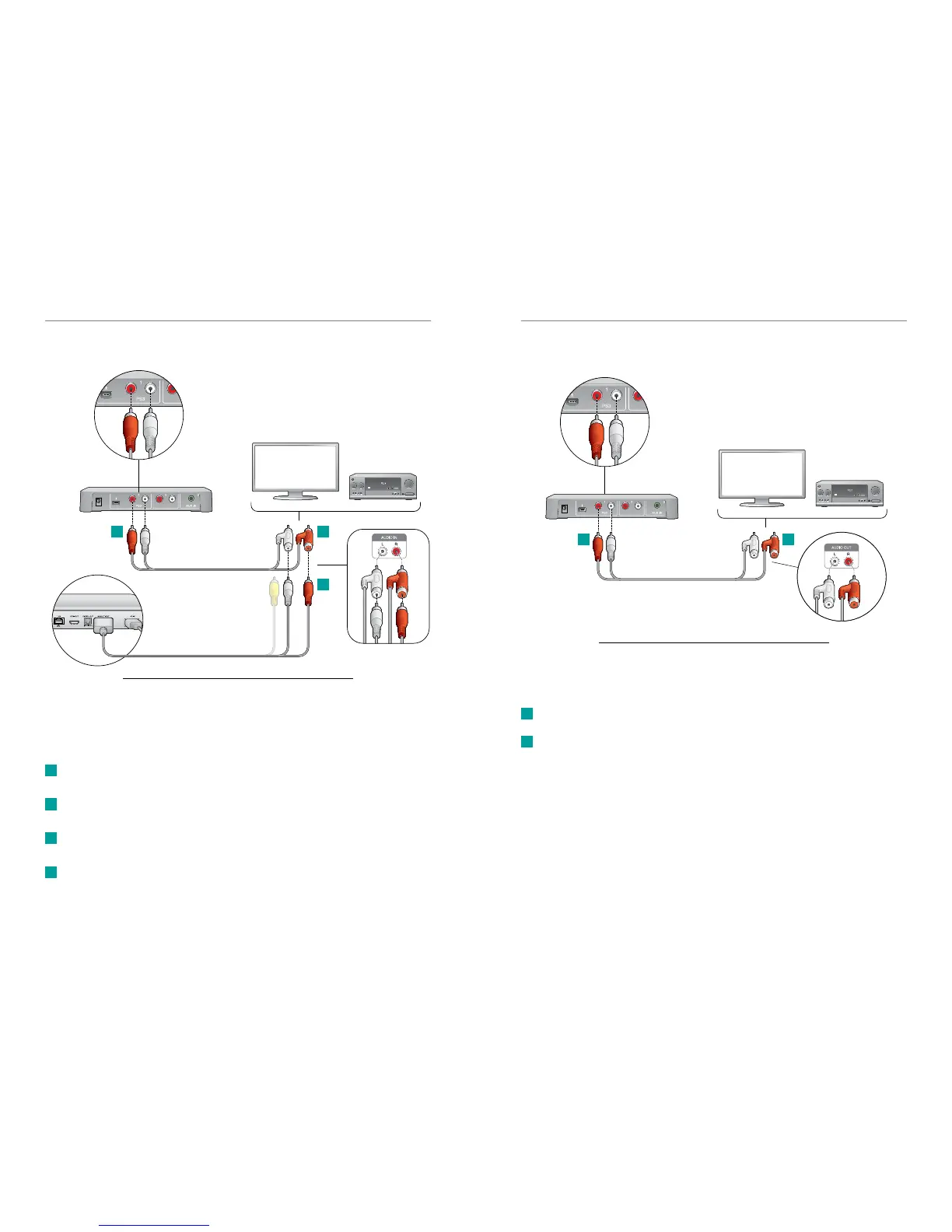

Recommended setup for the wireless base station (Fig. 2)
1. Unplug the red and white connectors of the PS3 AV cable from your primary
audio system.
2. Plug these red and white connectors directly into the Logitech RCA-to-RCA
passthrough cable connectors.
3. Plug the male connectors of the Logitech RCA-to-RCA passthrough cable to
your primary audio system (where the PS3 AV cable was previously connected).
4. On the other end of the Logitech RCA-to-RCA passthrough cable, plug the red
and white connectors into the PS3 ports on the back of the wireless base station.
1
2
3
4
Xbox 360
Xbox 360
21
Logitech RCA-to-RCA passthrough cable
Logitech wireless base station
Primary audio system
Figure 3
Figure 2
Xbox 360
Xbox 360
3
2
4
Logitech wireless base station
Primary audio system
Logitech RCA-to-RCA
passthrough cable
PS3
PS3 AV cable

Logitech F540 Specifications

General

Impedance	- Ω
Ear coupling	-
Headphone frequency	- Hz
Frequency band	2.4 GHz
3.5 mm connector	Yes
Connectivity technology	Wireless
Product type	Headset
Product color	Black
Recommended usage	Gaming
Microphone type	Boom
