2.6 Safety system
A: Fuses: motor protector and protection against electrical
overload.

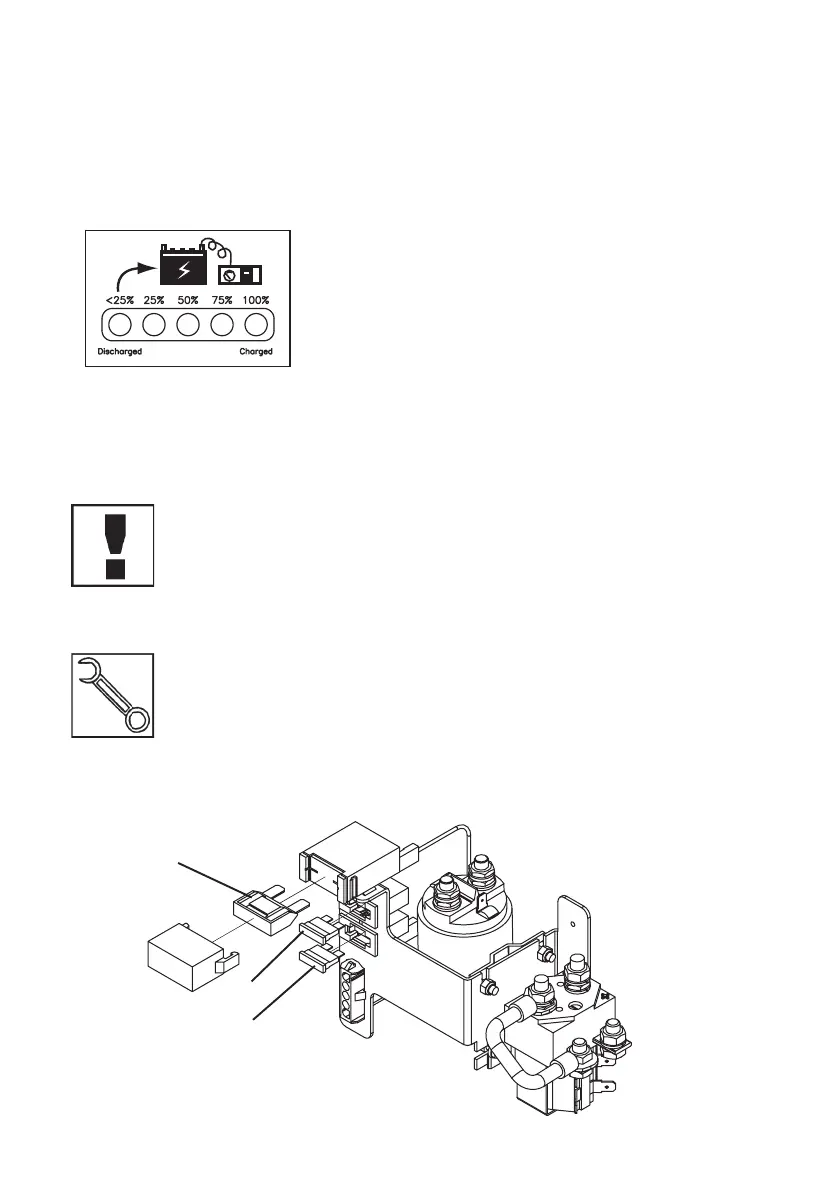

Fuses - replacement
There are 3 fuses in the electrical circuit.
A) 80 amp fuse in main supply from battery
B) 30 Amp fuse for built-in charger
C) 5 amp fuse in control current circuit
2.5 Battery indicator
The battery indicator shows the battery charge in %.
The most accurate reading can be obtained after the battery has been allowed to
remain idle for 5-10 minutes.
Yellow: Battery capacity: 25%-50%
The battery can still be used; charging is
recommended.
Red: Battery capacity less than 25%
Do not use the battery, otherwise it might
become damaged.
Green: Battery capacity: 50%-100%
The battery is ready for use and need not be
charged.
