Line winder
9
2
3
4
5
1
16. Belt pulley lock screw 9999-000-6046
17. Poly V-belt 9999-000-6000
18. Lining thread, ISM M5 9999-000-6063
19. Guide rail brush 9999-000-6050
20. Phillips bolt, M5x12 9999-000-6079
21. Slide holder 9999-000-6033
Plastic glide strips 9999-000-6035
Metal screw, RXS 3.5x13 9099-021-2400
22. Protective bail 9999-000-6056
Hex bolts, M6x45 9007-319-1420
23. Protective yoke 9999-000-6055
Flange bolt, M6x20 9018-346-1320
Flange lock nut, M6 9214-352-0900
Key Schematic Art. no.

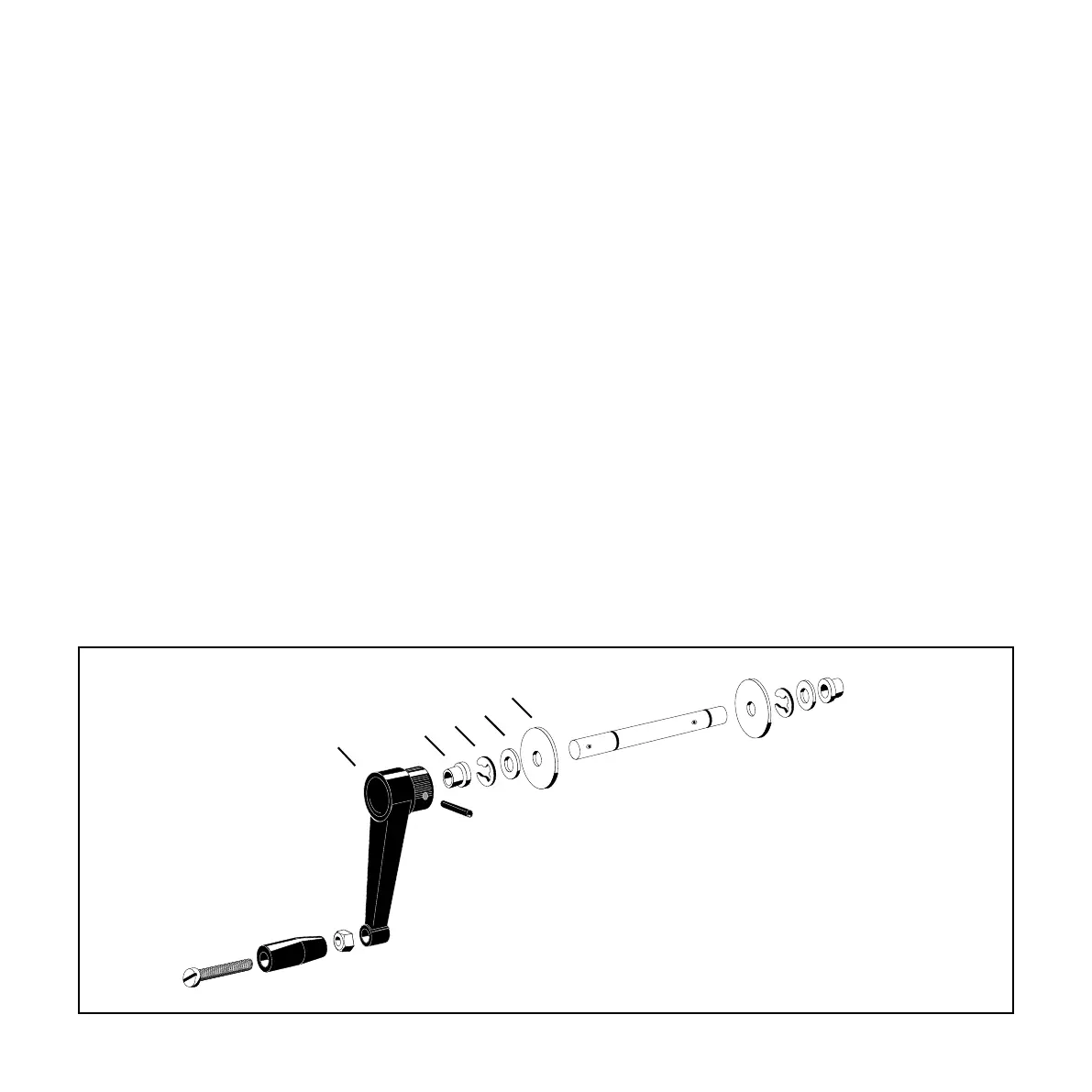

1. Winder, compl. with axle 9999-000-6071
2. Plastic bushing 4510-723-2600
3. Lock washer 9455-621-0750
4. Cover washer 4510-723-4602
5. Nylon washer 4510-723-4603
Feed line 9999-000-6010
Parts list
Key Schematic Art. no.
1. 5 kW motor 9999-000-6095
2. Oil container 9999-000-6052
3. Junction box, complete, 5 kW 9999-000-6075
Control lamp 9999-000-6078
4. Control arm 9999-000-6070
5. Line winder, complete 9999-000-6071
6. Phillips bolts, M5x12 9999-000-6079
7. Line pulley 9999-000-6048
Pulley bracket 9999-000-6047
8. Bottom plate 9999-000-6058
9. Hex bolt, M6x16 9007-319-1290
10. Belt tensioner M8 x 40 9999-000-6059
11. Square nut, M6 9222-068-0900
12. Oil cover with strainer 9999-000-6054
Oil hose, black 9999-000-6034
13. Gear housing and bar attachment
see parts schematic
14. Belt pulley, 15/40 9999-000-6025
15. Belt pulley, 28/125 9999-000-6026
Wedge 9999-000-6027
