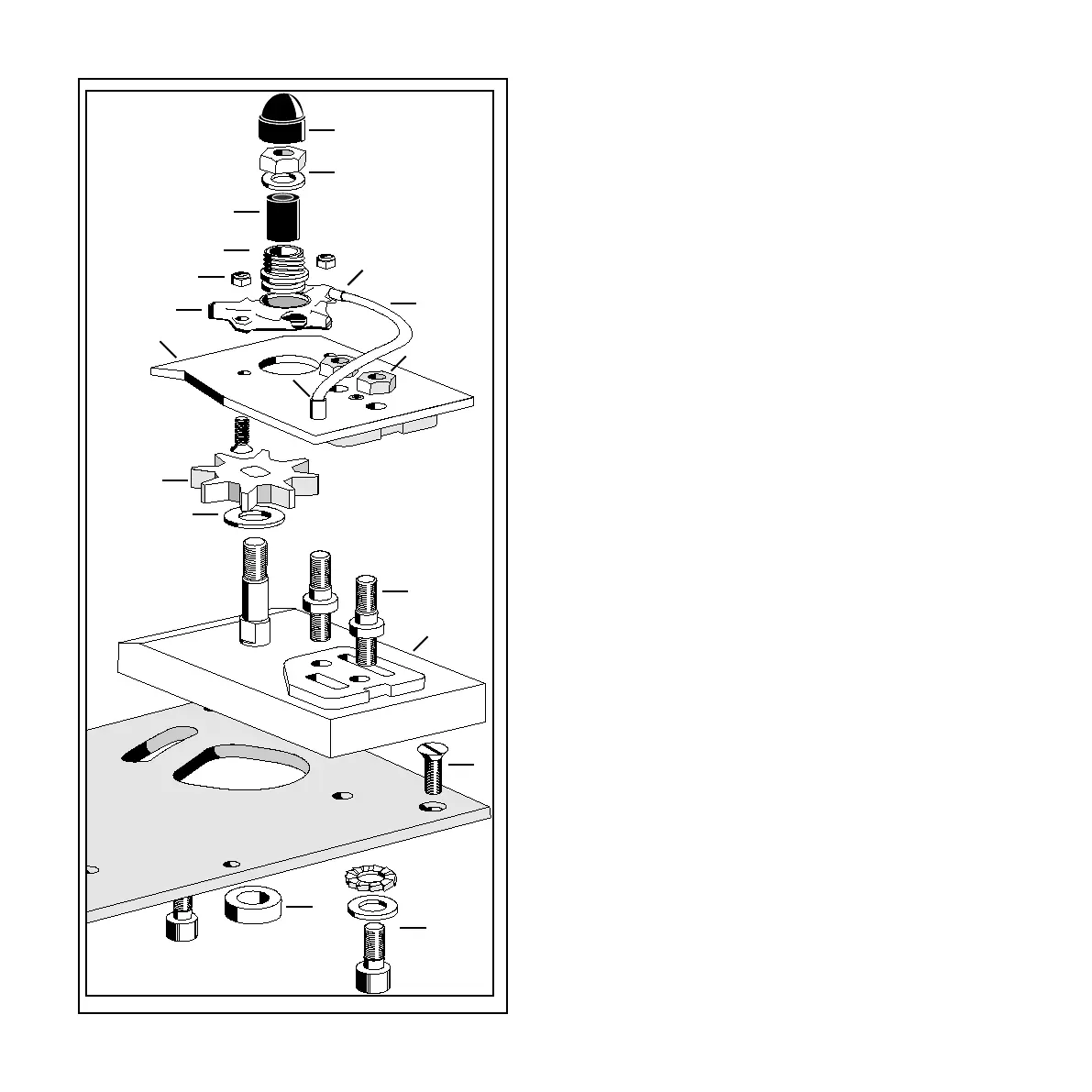

Gear housing and guide bar
fastener
6
9
8
11
12
7
10
2
Key Gear housing and bar fastener Art. no.
1. Plastic cap 9999-000-6030
2. Lock nut, M10 9214-320-1305
Flat washer 4510-723-4602
3. Rubber bushing 9999-000-6069
4. Oil pump drive 9999-000-6021
5. Phillips bolt, M5x16 9999-000-6002
6. Lock nut, M5 9214-320-0700
Oil pump 9999-000-6020
7. Oil pipe, transparent 9999-000-6036
8. Cover plate 9999-000-6024
Guide bar plate, upper 9999-000-6023
9. Nipple 9999-000-6018
10. Guide bar nut 0000-955-0801
11. Chain drive 1207-642-1310
12. Shims, 0.5 mm 9999-000-6068
13. Guide bar bolt 9999-000-6040
14. Gear housing, axle, bar bolts 9999-000-6072
Guide bar plate, lower 9999-000-6022
15. Recessed bolt, M6x16 9999-000-6062
16. Spacer ring 9999-000-6044
17. Hex bolt, M8 9045-319-1880
Flat washer, 8 mm 9291-021-0180
Lock nut, 8 mm 9999-000-6043
10
5
17
