Assembly
2

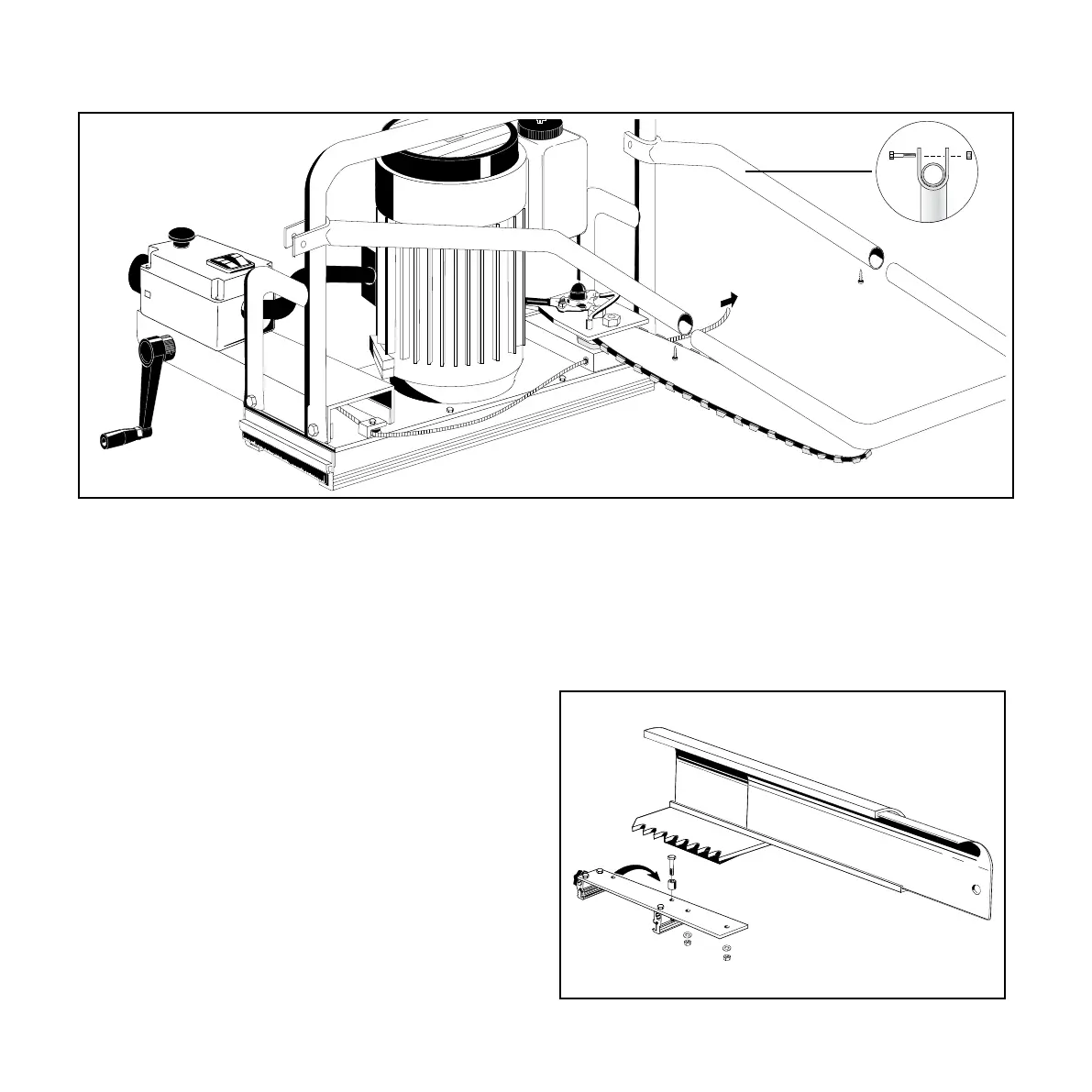

Fit the control arm to the electric saw using four M6x20
bolts and nuts. First loosen the protective yoke. Then
place the control arm in position and push two bolts
through the protective yoke, the control arm and its
mount, tightening the nut on the inside. Use two more
bolts to fasten the other side of the control arm. To tigh-
ten, use two 10 mm cap keys.
Fit the junction box at the end of the control arm, using
a Phillips driver.
Fit the protective bail to the protective yoke as shown
above. Use two M6x40 bolts and nuts and tighten using
two 10 mm cap keys.
Starting at the line winder, thread the feed line through
the pulley and on through the hole in the bearing hous-
ing. Then tie a knot in the line end to fasten it in the log
dog.
Move the attachment for the feed line on the saw mill
log dog. Replace the rear M6x16 bolt holding the slide
with a longer M6x25 tted with a sleeve as shown be-
low. The feed line should run straight back to the bea-
ring housing
