Circuit diagram
12

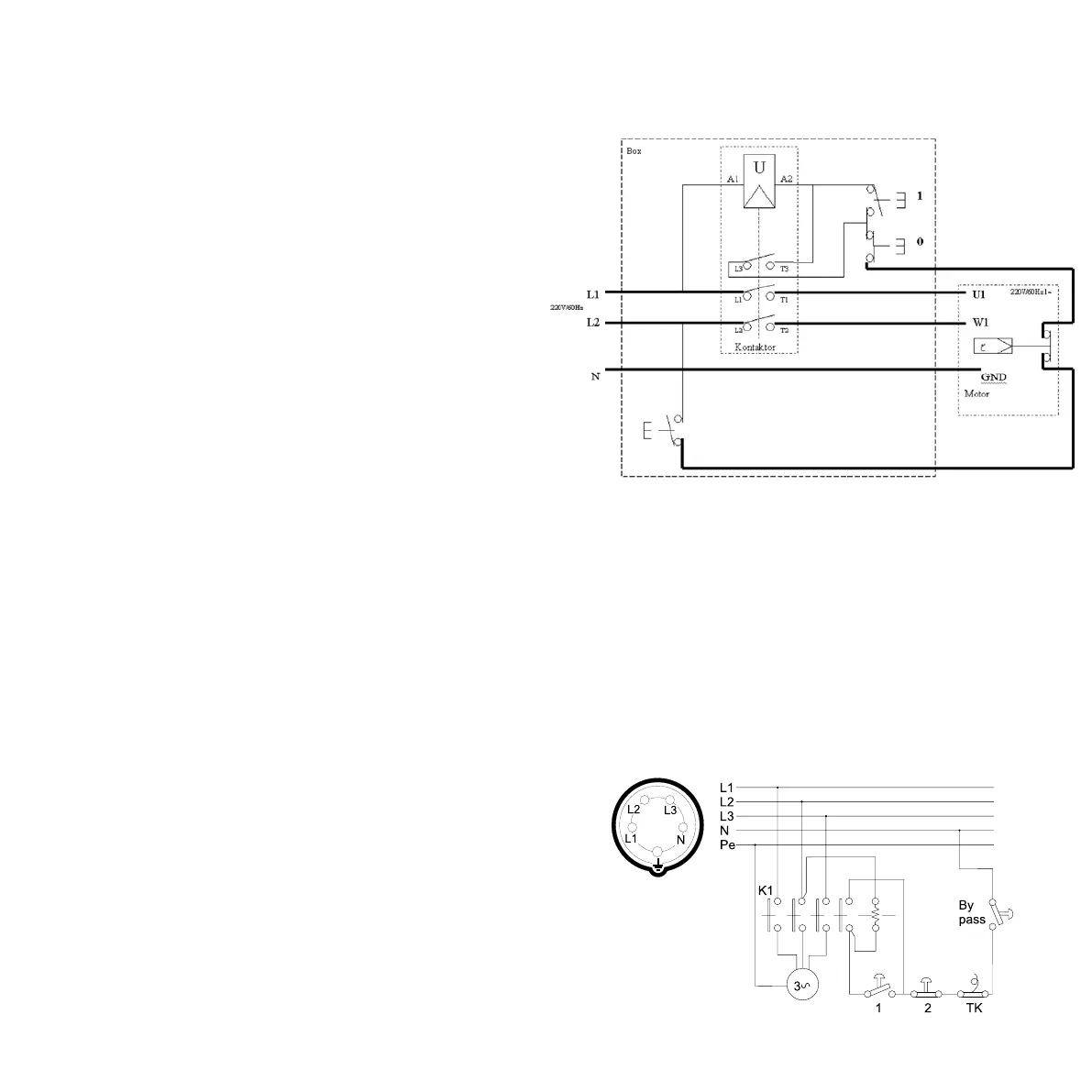

Circuit diagram 400V (220V see last page)
Current Swedish rules require that the saw be connected
using a 5-lead cable of which one must be an earth
connection. Only persons with the proper credentials
should make repairs or adjustments to the electrical
equipment, as a wrong connection can endanger lives.
Be sure the machine is unplugged before carrying out any
work on the electrical system.
Circuit diagram US-version 220 V
Circuit diagram SE-version 400 V
