Logosol Multifunctional Servo Drive LS-231SE
Doc # 712231004 / Rev. A, 05/05/2011
Logosol, Inc. 1155 Tasman Drive Sunnyvale, CA 94089 Tel: (408) 744-0974 www.logosolinc.com
13

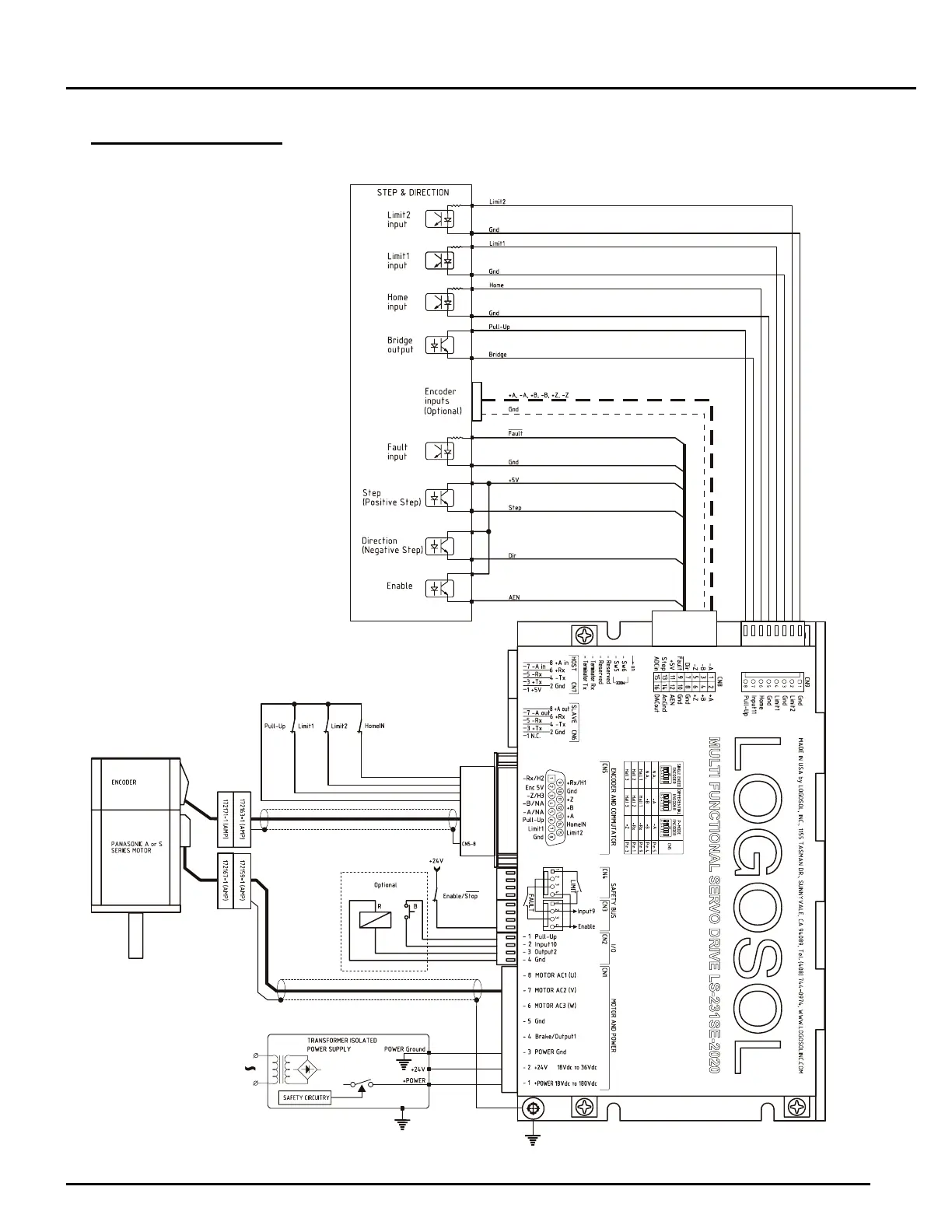

SAMPLE APPLICATION
using Panasonic A or S series motors in Step & Direction (Step
Positive/Step Negative) mode
