Logosol LS-231SE - Dimensional Drawing; Ordering Guide

Logosol Multifunctional Servo Drive LS-231SE
Doc # 712231004 / Rev. A, 05/05/2011
Logosol, Inc. • 1155 Tasman Drive • Sunnyvale, CA 94089 Tel: (408) 744-0974 • www.logosolinc.com
3

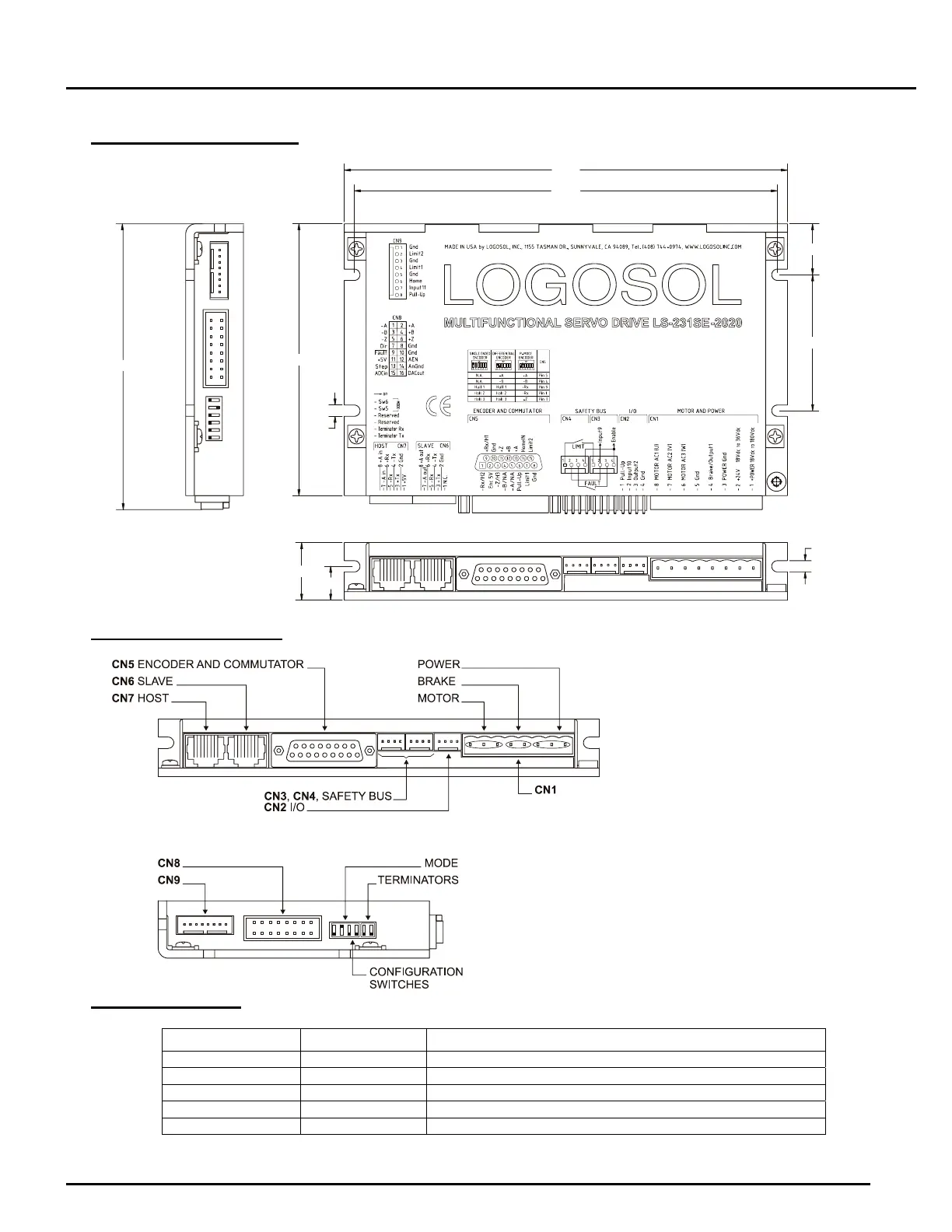

DIMENSIONAL DRAWING
6.220
6.500
0.750
2.000
4.000
0.165
4.250 max
0.16
5
0.500
0.850
SERVO DRIVE LAYOUT
ORDERING GUIDE
PART NUMBER MODEL DESCRIPTION
912231010 LS-231SE- 2020
Multifunctional servo drive 20A/180V
230601051 LS-231-CN
Mating connector kit for LS-231SE
230601017 PAN-AS-CN
Mating connector kit for Panasonic A and S series motors
230601027 PAN-ASB-CN
Mating connector kit for Panasonic A and S series motors with brake
922231100 LS-2311
Dual-loop master encoder interface
