Logosol Multifunctional Servo Drive LS-231SE
Doc # 712231004 / Rev. A, 05/05/2011
Logosol, Inc. • 1155 Tasman Drive • Sunnyvale, CA 94089 Tel: (408) 744-0974 • www.logosolinc.com
4

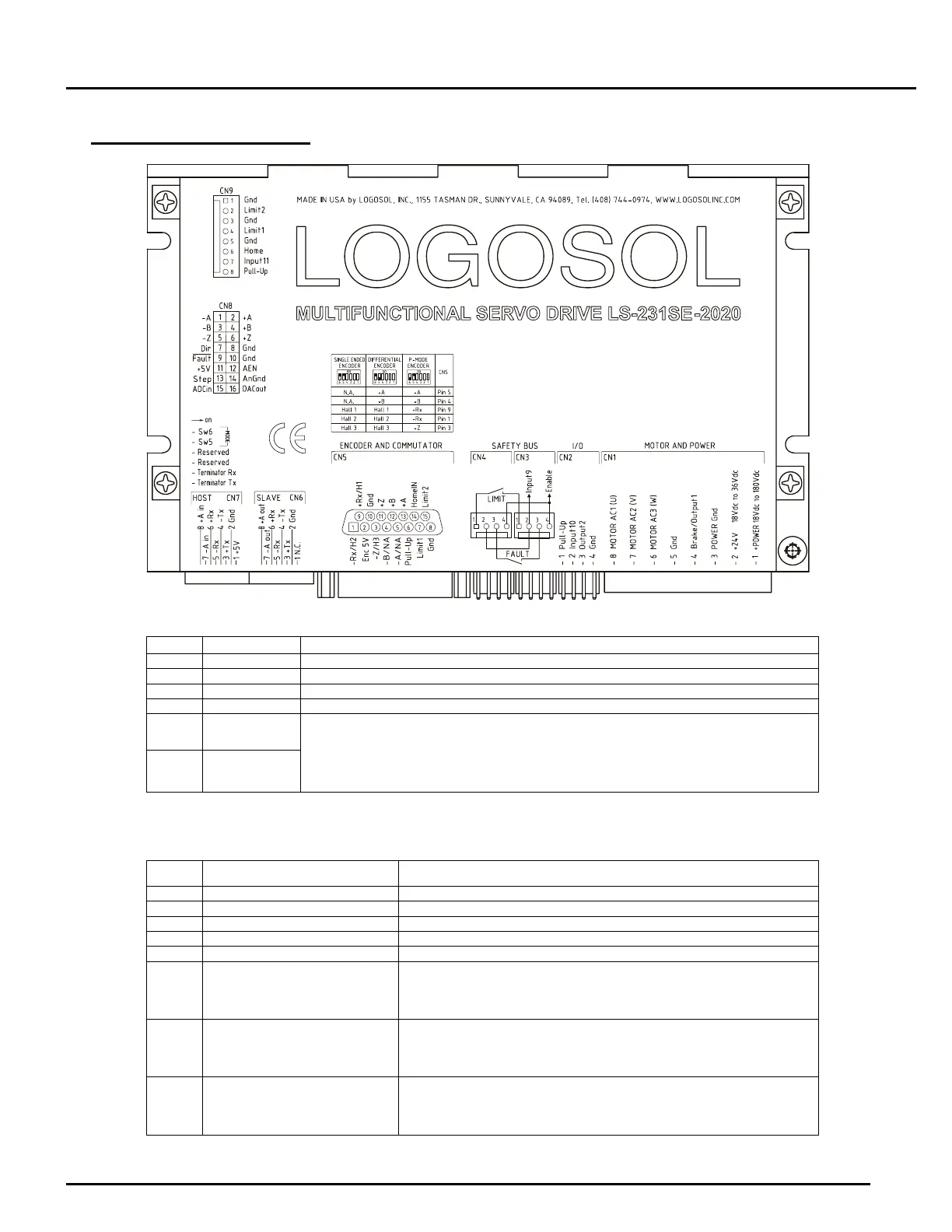

CONECTORS AND PINOUT
DIP SWITCHES
SW NAME DESCRIPTION
1 Terminator Tx Transmit line terminator
2 Terminator Rx Receive line terminator
3 Reserved Reserved must be off
4 Reserved Must be off.
5 Sw5
6 Sw6
Sw6=ON, Sw5=ON - Motor with single ended (non differential) encoder
Sw6=ON, Sw5=OFF - Motor with differential encoder
Sw6=OFF, Sw5=ON - Panasonic A or S series motor (P-mode)
Sw6=OFF, Sw5=OFF - Reserved
CONNECTORS
CN1 – POWER AND MOTOR
PIN SIGNAL DESCRIPTION
1 +POWER 18Vdc TO 90Vdc Power supply positive terminal
2 +24V 18Vdc TO 36Vdc I/O power supply
3 POWER Gnd Power supply ground
4 Brake/Output1 Brake output
5 Gnd I/O ground
6 MOTOR AC3 (W)
Output to motor
Phase 3 terminal for brushless motors
Phase W for Panasonic A and S series motors
Negative terminal for DC and Voice Coil motors
7 MOTOR AC2 (V)
Output to motor
Phase 2 terminal for brushless motors
Phase V for Panasonic A and S series motors
Positive terminal for DC and Voice Coil motors
8 MOTOR AC1 (U)
Output to motor
Phase 1 terminal for brushless motors
Phase U for Panasonic A and S series motors
Not connected for DC and Voice Coil motors
