LS-231SE ARCHITECTURE
Overview
LS-231SE Logosol Multifunctional Servo Drive is a highly integrated servo control module for Brushless
motors including motion controller, servo amplifier with integrated sinusoidal output, Serial
communication interface, Amplifier interface, Step & direction interface, Safety bus and protection circuit.
LS-231SE can be configured to work in 8 different modes.

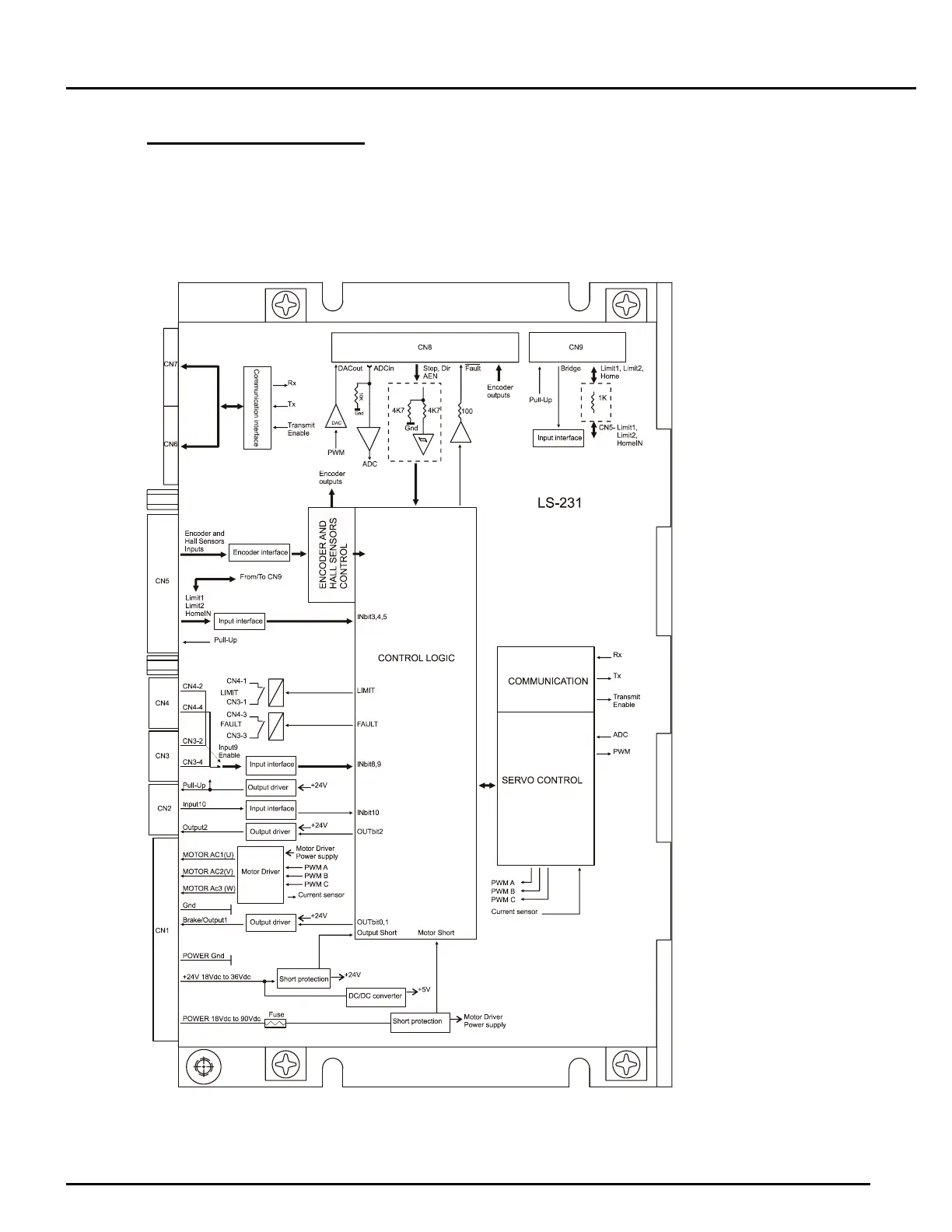

Block diagram
