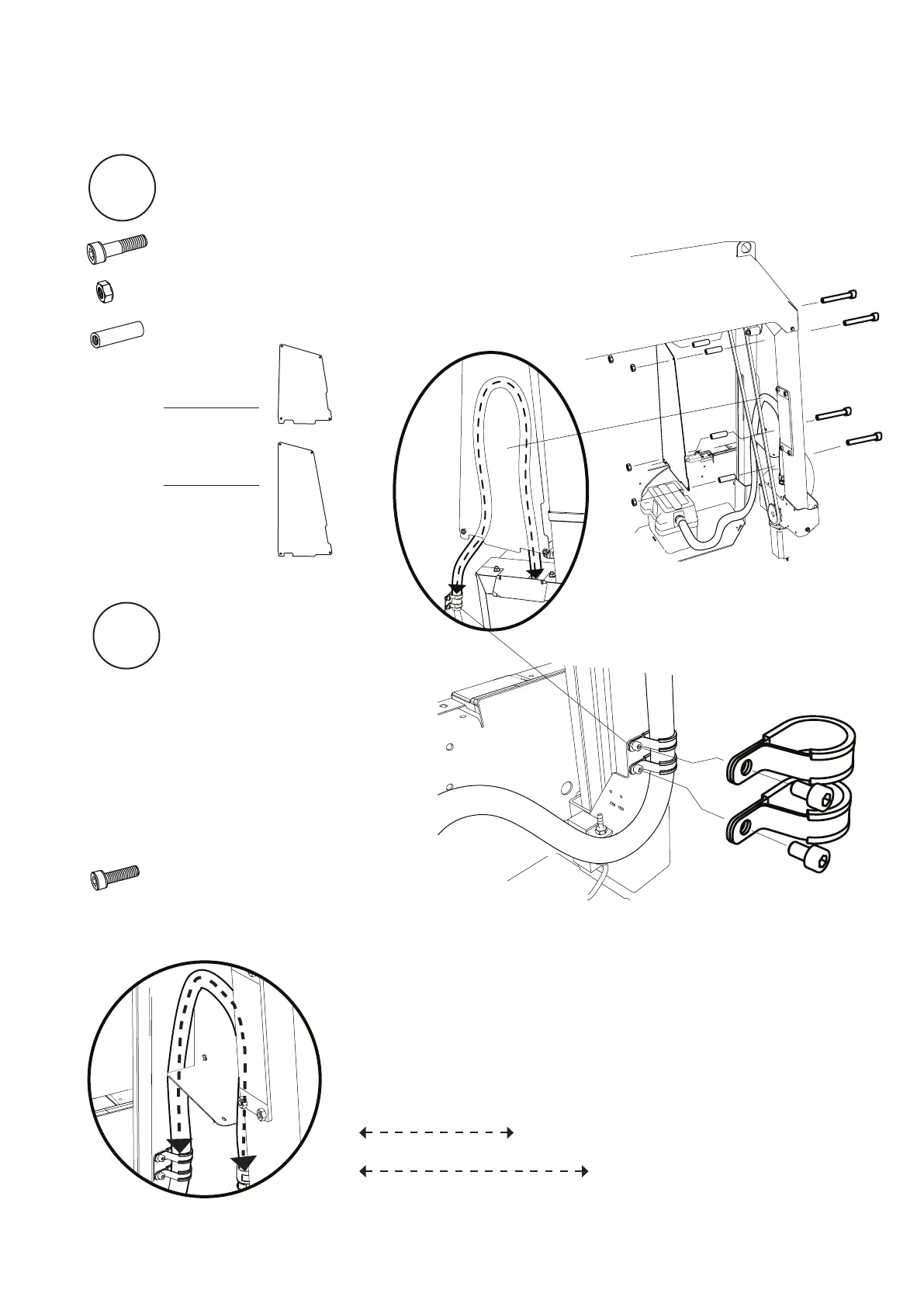

Logosol SMART SET - ASSEMBLY: BOX-DV HOSE ATTACHMENT; Step 14: Hose Attachment; Step 15: Hose Length Importance

19
4 x – M8x65
4 x – M8
4 x – 03-02502
4 x – M8x12
B751 PRO 80 cm
B1001 100 cm
14
15
B751 PRO
B1001
03-02489
03-02965
B1001 100 cm
B751 PRO 80 cm
Note the length of the hose specied between
the hose clamp and the upper attachment. The
length of the hose is important so that it does
not become knotted together or become too
long in its end positions.
