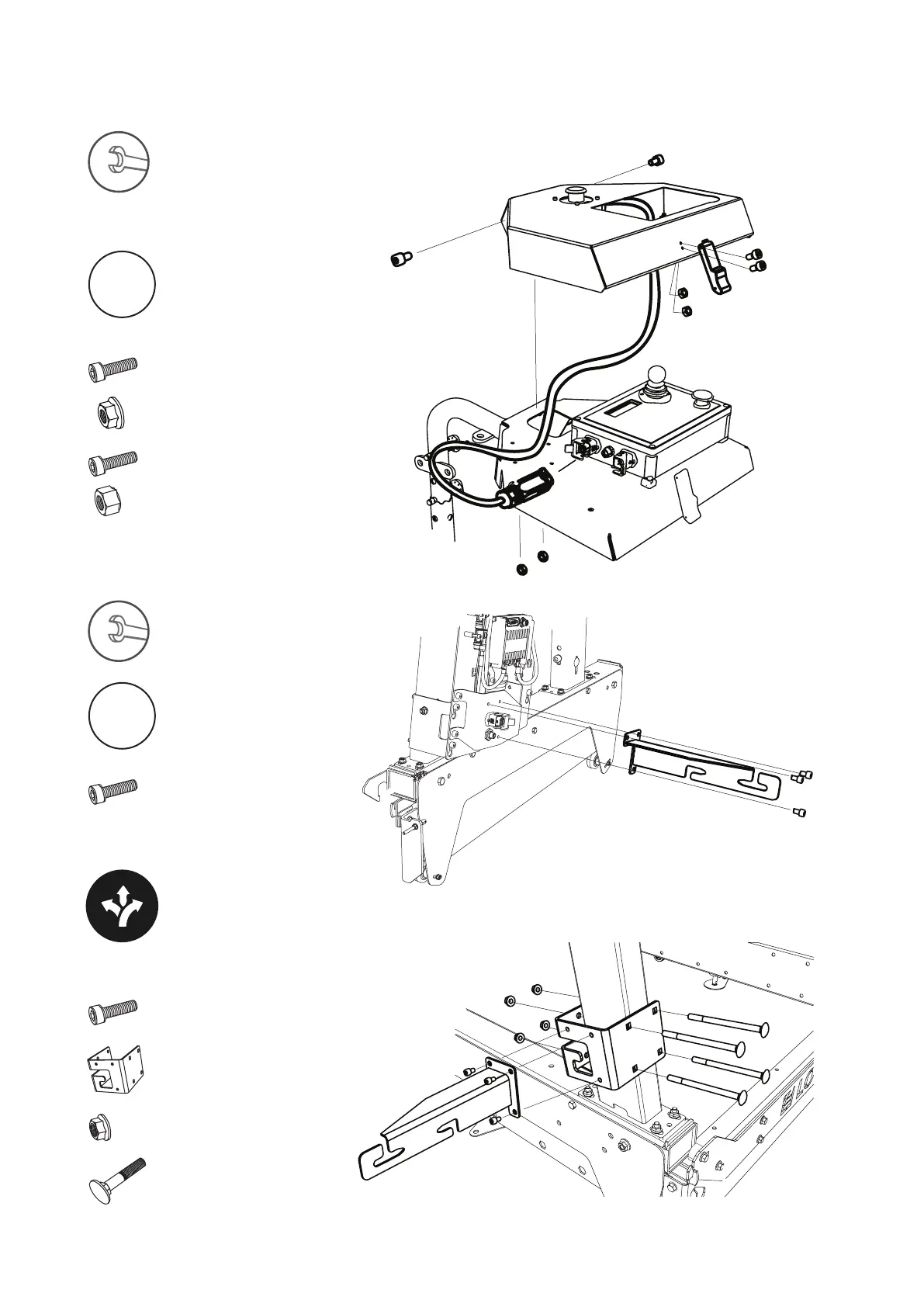

Logosol SMART SET - ASSEMBLY: BOX-EP & BOX-DV CABLE; Step 19: BOX-EP Attachment; Step 20: BOX-DV Signal Cable

21
BOX-EP
BOX-DV
2 x – M6
2 x – M4
2 x – M6x16
2 x – M4x8
3 x – M8x12
4 x – M8x12
19
20
4 x – MVBF M8x120
4 x – M8
03-03092
The signal cable can be
mounted on the left side of
the sawhead as an option.
The cable is then secured with
Velcro according to step 21.
