LoLo ST-4E - Parts Lists & Diagrams

OM-ST-4E/6E 17
5
5
7
9
5
5 1
5
10
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 156503 PANEL, LEFT SIDE 4-PAN WELDMENT 1
2 156502
PANEL, RIGHT SIDE 4-PAN
WELDMENT
1
3 156396 WELDMENT, TOP COVER, 4-PAN 1
4 094151 TRAY DRIP 1
5 004173 SCREW, TRS HEAD 10-32 X 3/8 17
6 070467 SHOULDER SCREW - DRIP TRAY 2
7 145297
WELDMENT, CAVITY VENT NO
VACUUM
1
8 073242 LOCTITE 0.1
9 156488 PANEL ACCESS 1
10 156332 REAR COVER ASSY 4-PAN E 1
5
5
5
3
4
2
6

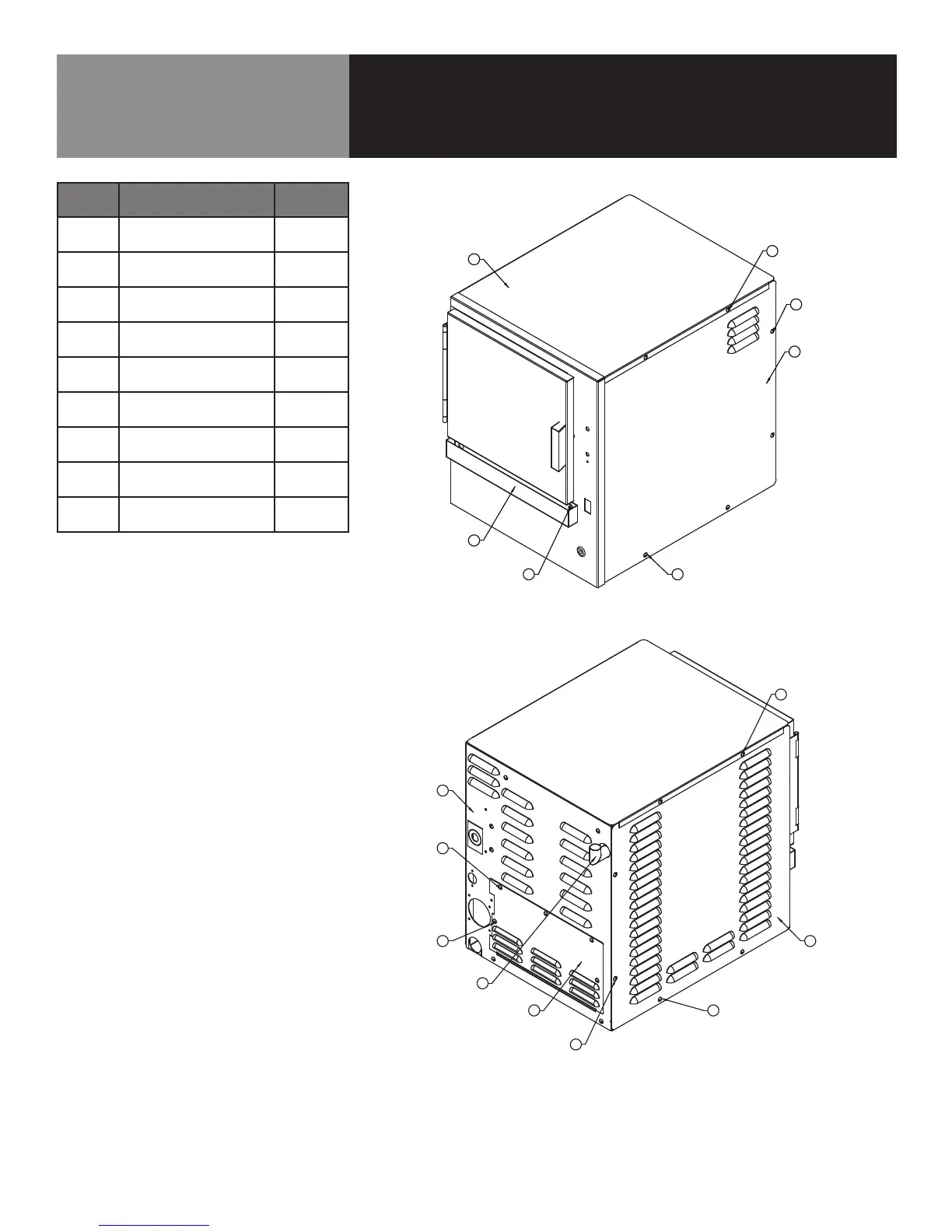

Parts List & Diagram
4-Pan Cabinet Assembly
Item
no.
Description
Part
number
1
PANEL, LEFT SIDE
WELDMENT
156503
2
PANEL, RIGHT SIDE
WELDMENT
156502
3
WELDMENT, TOP
COVER
156396
4 TRAY DRIP 094151
5
SCREW, TRS HEAD
10-32 x 3/8 (QTY 17)
004173
6
SHOULDER SCREW -
DRIP TRAY (QTY 2)
070467
7
WELDMENT, CAVITY
VENT
145297
9 ACCESS PANEL 156488
10
REAR COVER ASSY
ELECTRIC
156332
5
5
7
9
5
5 1
5
10
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 156503 PANEL, LEFT SIDE 4-PAN WELDMENT 1
2 156502
PANEL, RIGHT SIDE 4-PAN
WELDMENT
1
3 156396 WELDMENT, TOP COVER, 4-PAN 1
4 094151 TRAY DRIP 1
5 004173 SCREW, TRS HEAD 10-32 X 3/8 17
6 070467 SHOULDER SCREW - DRIP TRAY 2
7 145297
WELDMENT, CAVITY VENT NO
VACUUM
1
8 073242 LOCTITE 0.1
9 156488 PANEL ACCESS 1
10 156332 REAR COVER ASSY 4-PAN E 1
5
5
5
3
4
2
6
