LoLo ST-4E - Page 18

18 OM-ST-4E/6E
ITEM NO. PART NUMBER DESCRIPTION
Default/
QTY.
1 156151 PANEL SIDE RIGHT 6-PAN ASSY 1
2 156152 PANEL SIDE LEFT 6-PAN ASSY 1
3 094151 TRAY DRIP 1
4 156396 WELDMENT, TOP COVER, 4-PAN 1
5 145297
WELDMENT, CAVITY VENT NO
VACUUM
1
6 070467 SHOULDER SCREW - DRIP TRAY 2
7 004173 SCREW, TRS HEAD 10-32 X 3/8 17
8 073242 LOCTITE #242 0.1 OZ
9 156507 PANEL ACCESS 1
7
7
7
7
5
7
7
7
7
9
7
2
7
7
7
7
4
3
6
1
7
7
ITEM NO. PART NUMBER DESCRIPTION
Default/
QTY.
1 156151 PANEL SIDE RIGHT 6-PAN ASSY 1
2 156152 PANEL SIDE LEFT 6-PAN ASSY 1
3 094151 TRAY DRIP 1
4 156396 WELDMENT, TOP COVER, 4-PAN 1
5 145297
WELDMENT, CAVITY VENT NO
VACUUM
1
6 070467 SHOULDER SCREW - DRIP TRAY 2
7 004173 SCREW, TRS HEAD 10-32 X 3/8 17
8 073242 LOCTITE #242 0.1 OZ
9 156507 PANEL ACCESS 1
7
7
7
7
5
7
7
7
7
9
7
2
7
7
7
7
4
3
6
1
7
7

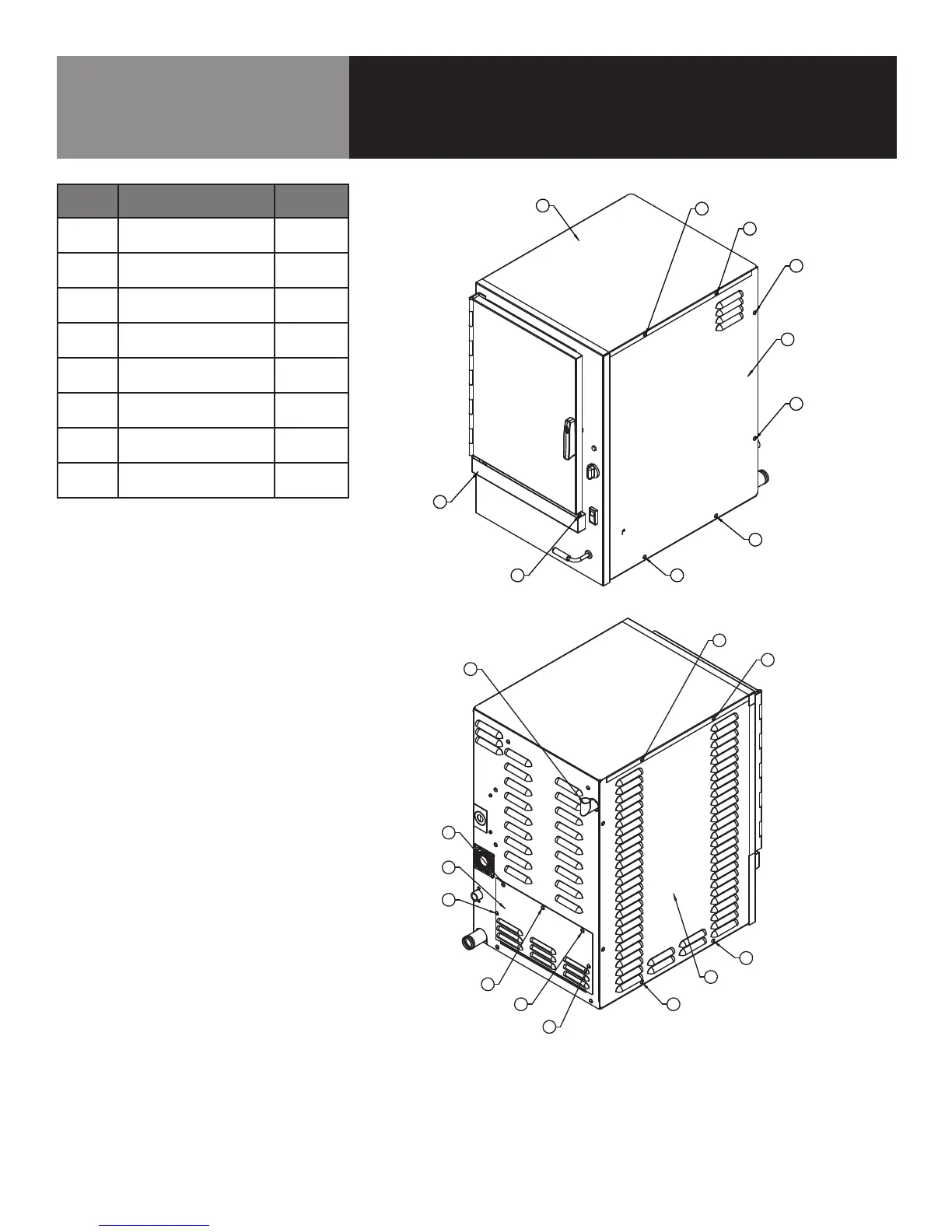

Parts List & Diagram
6-Pan Cabinet Assembly
Item
no.
Description
Part
number
1
PANEL, SIDE RIGHT
ASSY
156151
2
PANEL, SIDE LEFT
ASSY
156152
3 TRAY DRIP 094151
4
WELDMENT, TOP
COVER
156396
5
WELDMENT, CAVITY
VENT NO VACUUM
145297
6
SHOULDER SCREW -
DRIP TRAY (QTY 2)
070467
7
SCREW, TRS HEAD
10-32 x 3/8 (QTY 17)
004173
9 ACCESS PANEL 156507
