LoLo ST-4E - Page 19

OM-ST-4E/6E 19
6
7
1
5
5
8
2 3
4
5
5
5
5
9
A
A
SECTION A-A
SCALE 1 : 2
10
10
ITEM NO. PART NUMBER DESCRIPTION
Default/
QTY.
1 156392 PANEL FRONT DOOR ASSY, 4-PAN 1
2 156390 LATCH, ASM 4-PAN 1
3 156388 GASKET, DOOR 4-PAN SILICONE 1
4 156387 PANEL, DOOR INSIDE 4-PAN 1
5 005764 SCREW TRUSS HEAD MACHINE 6
6 005608 SCREW, HEX HEAD CAP, 1/4"-20 2
7 070123 HANDLE ASSY DOOR 1
8 130868 HINGE, DOOR 1
9 074252 CAM DOOR UNLATCH LIFT 1
10 129732 SCREW 8-32 X.375 LG PHILLIPS 2

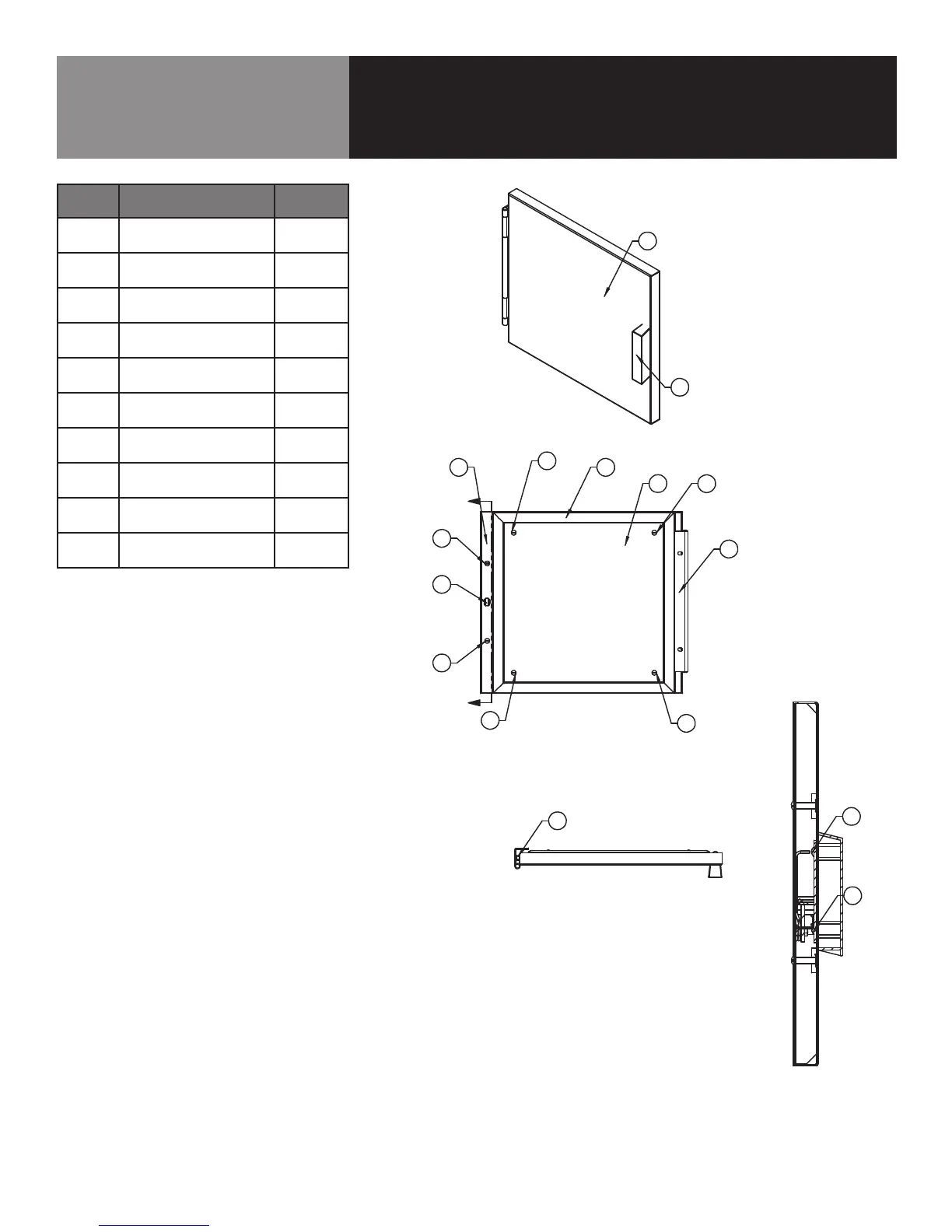

Parts List & Diagram
4-Pan Door Assembly
Item
no.
Description
Part
number
1
PANEL FRONT DOOR
ASSEMBLY
156392
2 LATCH ASSEMBLY 156390
3
GASKET, DOOR
SILICONE
156388
4 PANEL, DOOR INSIDE 156387
5
SCREW TRUSS HEAD
MACHINE (QTY 6)
005764
6
SCREW, HEX HEAD
CAP, 1/4” - 20 (QTY 2)
005608
7 HANDLE ASSY DOOR 070123
8 HINGE, DOOR 130868
9
CAM DOOR UNLATCH
LIFT
074252
10
SCREW 8-32 x .375
LG PHILLIPS (QTY 2)
129732
