LoLo ST-4E - Page 20

20 OM-ST-4E/6E
7
15
10
9
11
12
14
3
1
4
2
TORQUE 18-20 IN. Lbs
TYP. ALL SCREWS
16 A/R 124793 SILICONE, ALUMINUM
15 .01OZ 073282 LOCTITE 242
14 A/R 001711 RTV 732 SEALANT
13 .01OZ 074210 GREASE, NEVER SEEZ
12 1 069762 BLOCK AND MAGNET ASSEMBLY
11 1 140754 INSULATOR BOARD
10 4 071206 SPACER FOR DOOR
9 1 140752 LATCH ASSEMBLY
8 1 074252 CAM, DOOR UNLATCH LIFT
7 1 140755 HINGE, DOOR, VORTEX 6 PAN
6 1 129723 HANDLE
5 2 005608 SCREW, HEX HEAD CAP, 1/4"-20
4 8 127179 SCREW, 8-32 X 3/8" PHIL HEAD
3 1 140751 PANEL, DOOR INSIDE
2 1 140748 GASKET
1 1 140750 PANEL, FRONT DOOR ASSEMBLY
ITEM NO. QTY. PART NO. DESCRIPTION
B
B
SECTION B-B
SEE NOTE 1
8
6
9
ITEM (13) APPLIED ON CAM AS
SHOWN AND BETWEEN CAM AND
INNER SIDE OF FRONT DOOR
4
HINGE AND PIN TO BE COATED WITH
ITEM 13 (NEVER SEEZ GREASE)
5 15

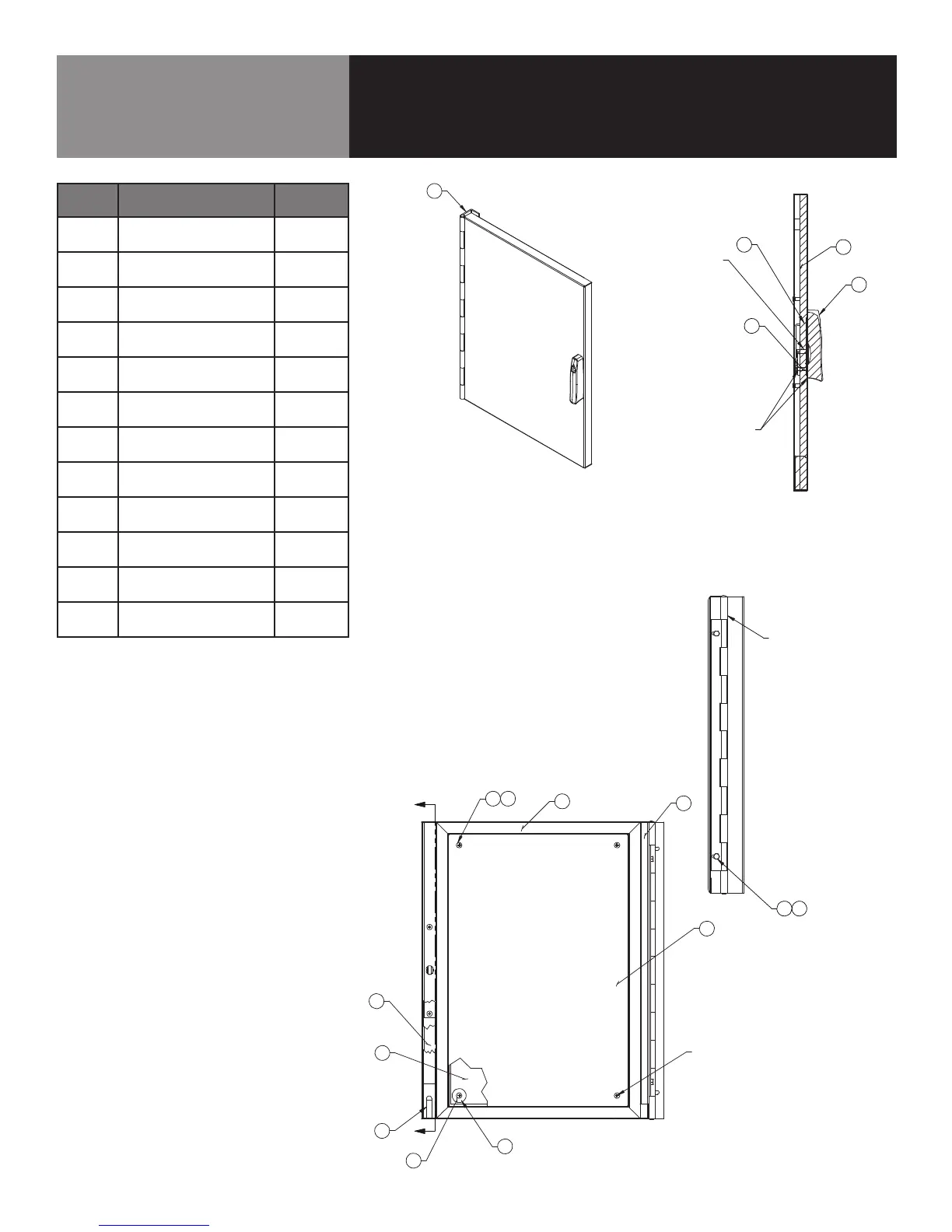

Parts List & Diagram
6-Pan Door Assembly
Item
no.
Description
Part
number
1
PANEL, FRONT DOOR
ASSEMBLY
140750
2 GASKET 140748
3 PANEL, DOOR INSIDE 140751
4
SCREW, 8-32 X 3/8”
PHIL HEAD (QTY 8)
127179
5
SCREW, HEX HEAD
CAP, 1/4”-20 (QTY 2)
005608
6 HANDLE 129723
7 HINGE, DOOR 140755
8
CAM, DOOR
UNLATCH LIFT
074252
9 LATCH ASSEMBLY 140752
10
SPACER FOR DOOR
(QTY 4)
071206
11 INSULATOR BOARD 140754
12
BLOCK AND MAGNET
ASSEMBLY
069762
