LoLo ST-4E - Parts Lists & Diagrams

24 OM-ST-4E/6E
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 156320 INSULATION 3
2 156318
BRACKET, ELEMENT HOLD-DOWN,
LEFT & RIGHT SIDE
2
3 156319
BRACKET, ELEMENT HOLD-DOWN,
MIDDLE
1
4 156322 PANEL, INSULATION HOLD-DOWN 1
5a 159923 ELEMENT, 240V 1.6KW 9(FOR 6-PAN E)
5b 159924 ELEMENT, 240V 1.3KW 9(FOR 4-PAN E)
6 012940 NUT, HEX KEPS 1/4"-20 12
INSULATION HOLD DOWN PANEL
6
4
6
6
6
UP-SIDE DOWN WITH
NOTE: 4-PAN E HAS 9 ELEMENTS WHILE 6-PAN E HAS 12.
2
3
1
5
UP-SIDE DOWN WITHOUT
INSULATION HOLD DOWN PANEL
Item
no.
Description
Part
number
1 INSULATION (QTY 3) 156320
2
BRACKET, ELEMENT
HOLD-DOWN, LEFT &
RIGHT SIDE (QTY 2)
069789
3
BRACKET,ELEMENT
HOLD-DOWN, MIDDLE
144110
4
PANEL, INSULATION
HOLD-DOWN
096857
5a
ELEMENT, 240V
1.6KW (QTY 9 FOR
6-PAN)
096841
5b
ELEMENT, 240V
1.3KW (QTY 9 FOR
4-PAN)
156501
6
NUT, HEX KEPS 1/4”-
20 (QTY 12)
143559

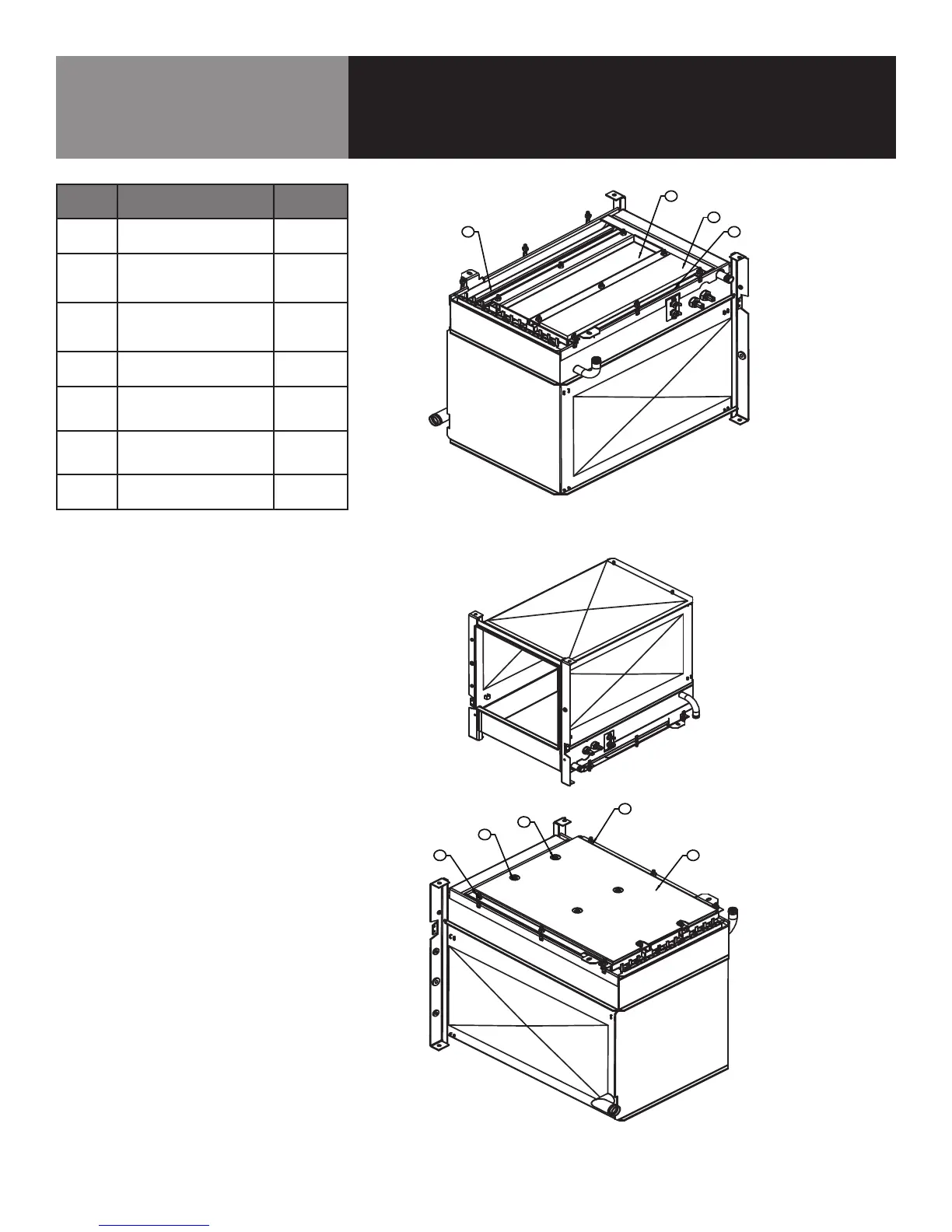

Parts List & Diagram
Electric Heating Elements
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 156320 INSULATION 3
2 156318
BRACKET, ELEMENT HOLD-DOWN,
LEFT & RIGHT SIDE
2
3 156319
BRACKET, ELEMENT HOLD-DOWN,
MIDDLE
1
4 156322 PANEL, INSULATION HOLD-DOWN 1
5a 159923 ELEMENT, 240V 1.6KW 9(FOR 6-PAN E)
5b 159924 ELEMENT, 240V 1.3KW 9(FOR 4-PAN E)
6 012940 NUT, HEX KEPS 1/4"-20 12
INSULATION HOLD DOWN PANEL
6
4
6
6
6
UP-SIDE DOWN WITH
NOTE: 4-PAN E HAS 9 ELEMENTS WHILE 6-PAN E HAS 12.
2
3
1
5
UP-SIDE DOWN WITHOUT
INSULATION HOLD DOWN PANEL
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 156320 INSULATION 3
2 156318
BRACKET, ELEMENT HOLD-DOWN,
LEFT & RIGHT SIDE
2
3 156319
BRACKET, ELEMENT HOLD-DOWN,
MIDDLE
1
4 156322 PANEL, INSULATION HOLD-DOWN 1
5a 159923 ELEMENT, 240V 1.6KW 9(FOR 6-PAN E)
5b 159924 ELEMENT, 240V 1.3KW 9(FOR 4-PAN E)
6 012940 NUT, HEX KEPS 1/4"-20 12
INSULATION HOLD DOWN PANEL
6
4
6
6
6
UP-SIDE DOWN WITH
NOTE: 4-PAN E HAS 9 ELEMENTS WHILE 6-PAN E HAS 12.
2
3
1
5
UP-SIDE DOWN WITHOUT
INSULATION HOLD DOWN PANEL
