LoLo ST-4E - Page 23

OM-ST-4E/6E 23
1 12
5
6
210
11
9
8
7
3
4 11
1111
11
13
15
14
16
17
17 162189 REPEAT CYCLE TIMER 1
16
26057-2 TEMP CONTROLLER 1
15 071487
RECTIFIER, BRIDGE-COMBO 1
14 071485
SCREW HEX SLOTTED 1
13 156486
BEEPER 1
12 116100
SCREW, #10-32 X .75 2
11 069789
SCREW HEX SLOTTED HD W/WASHER #8-32 X 3/8" 12
10 005056
SCREW ROUND HEAD 8-32 1 1/4" 2
9
121733.A RELAY, 24 VAC DPDT 1
8 119814
RELAY, 24 VAC DPST 1
7 070185
TERMINAL BLOCK 1
6 106412
MECHANICAL LUG,GROUND, #2 - #8 1
5 160919
FUSE BLOCK ASSY 1
4 137441
TRANSFORMER, 40VA, 208-240/60/3 1
3 119811
CONTACTOR, 4 POLE 40FLA 2
2 003888
TERMINAL BLOCK 3-POLE 1
1 156402
PANEL, HIGH VOLTAGE ASSEMBLY 1
ITEM NO. PART NUMBER DESCRIPTION QTY.

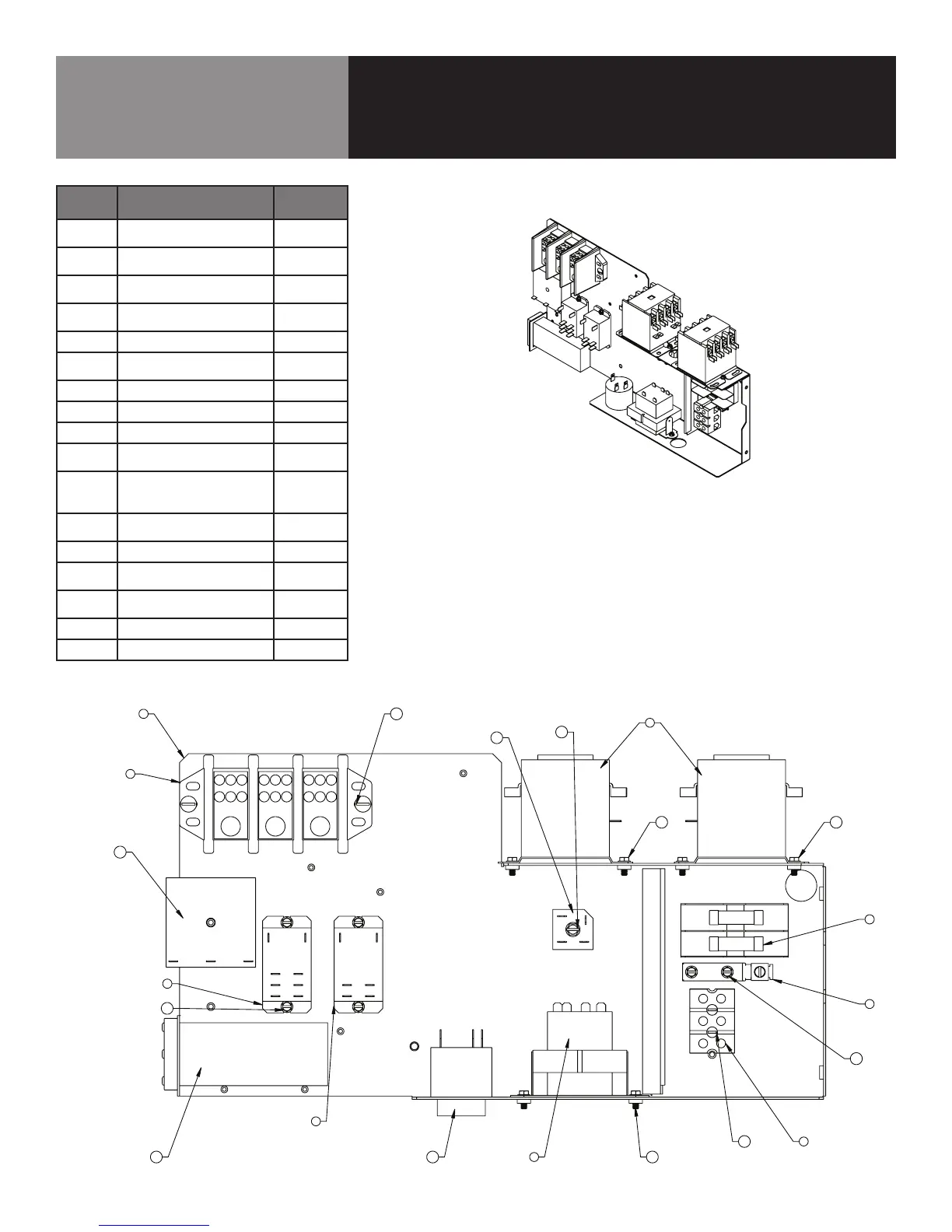

Parts List & Diagram
Electric Control Panel Assembly
Item
no.
Description
Part
number
1
PANEL, HIGH
VOLTAGE ASSEMBLY
156402
2
TERMINAL BLOCK
3-POLE
003888
3
CONTACTOR, 4 POLE
40FLA (QTY 2)
119811
4
TRANSFORMER,
40VA, 208-240/60/3
137441
5 FUSE BLOCK ASSY 160919
6
MECHANICAL LUG,
GROUND, #2-#8
106412
7 TERMINAL BLOCK 070185
8 RELAY, 24 VAC DPST 119814
9 RELAY, 24 VAC DPDT 121733
10
SCREW ROUND HEAD
8-32 1-1/4” (QTY 2)
005056
11
SCREW HEX SLOTTED
HD W/WASHER #8-32
x 3/8” (QTY 12)
069789
12
SCREW, #10-32 x .75
(QTY 2)
116100
13 BEEPER 156486
14
SCREW HEX
SLOTTED
071485
15
RECTIFIER, BRIDGE-
COMBO
071487
16 TEMP CONTROLLER 26057-2
17 REPEAT CYCLE TIMER 162189
1 12
5
6
210
11
9
8
7
3
4 11
1111
11
13
15
14
16
17
17 162189 REPEAT CYCLE TIMER 1
16
26057-2 TEMP CONTROLLER 1
15 071487
RECTIFIER, BRIDGE-COMBO 1
14 071485
SCREW HEX SLOTTED 1
13 156486
BEEPER 1
12 116100
SCREW, #10-32 X .75 2
11 069789
SCREW HEX SLOTTED HD W/WASHER #8-32 X 3/8" 12
10 005056
SCREW ROUND HEAD 8-32 1 1/4" 2
9
121733.A RELAY, 24 VAC DPDT 1
8 119814
RELAY, 24 VAC DPST 1
7 070185
TERMINAL BLOCK 1
6 106412
MECHANICAL LUG,GROUND, #2 - #8 1
5 160919
FUSE BLOCK ASSY 1
4 137441
TRANSFORMER, 40VA, 208-240/60/3 1
3 119811
CONTACTOR, 4 POLE 40FLA 2
2 003888
TERMINAL BLOCK 3-POLE 1
1 156402
PANEL, HIGH VOLTAGE ASSEMBLY 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
