22 OM-ST-4E/6E

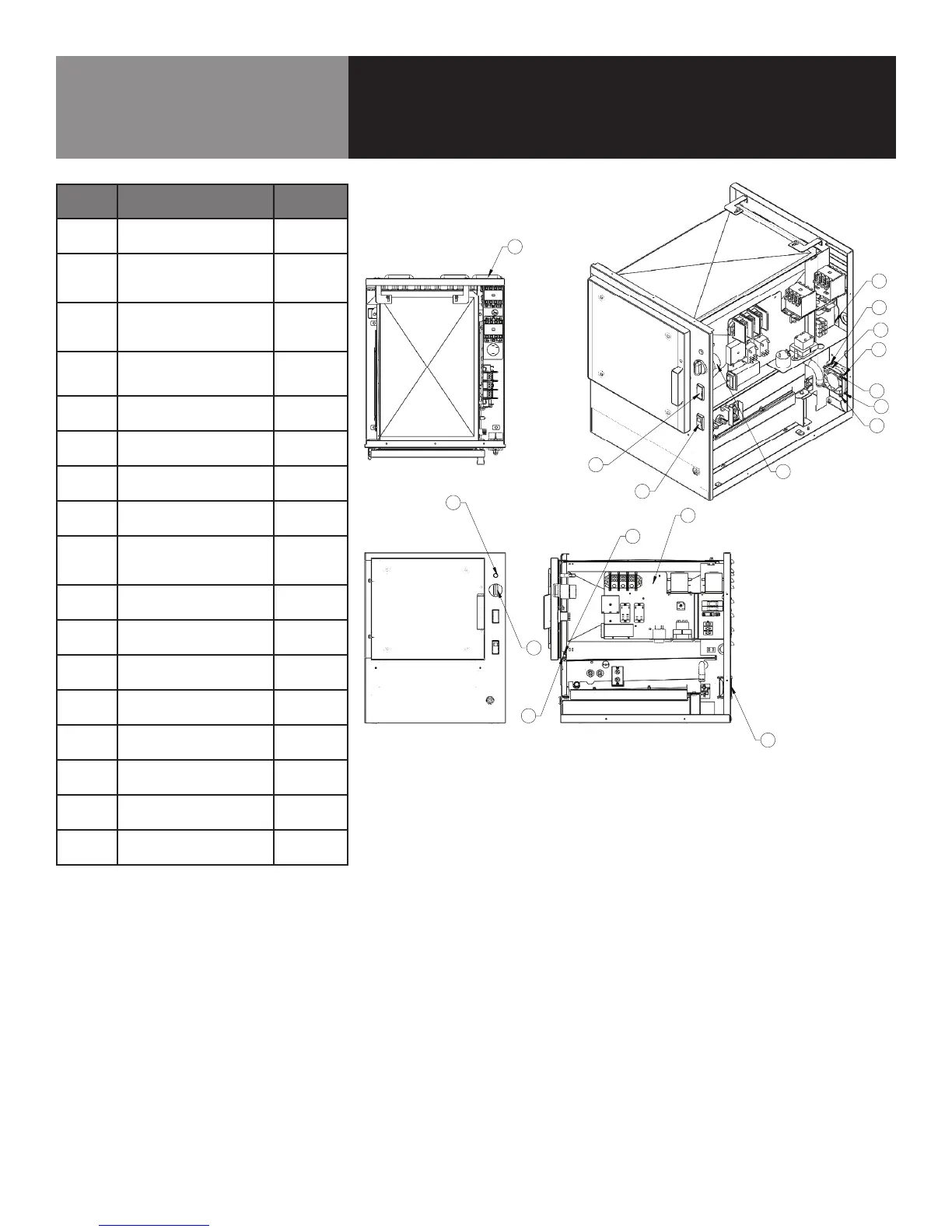

Parts List & Diagram
Common Electrical System Components
Item
no.
Description
Part
number
1
CONTROL PANEL
ASSEMBLY ELECTRIC
162322
2
SCREW HEX SLOTTED
HD W/WASHER #8-32
X 3/8” (QTY 2)
069789
3 TIMER STEAMER 096826
4
POWER SWITCH,
WITH GREEN
INDICATOR LIGHT
155548
5 SWITCH, DOOR 096857
6
LIGHT, INDICATOR
AMBER
116384
7 KNOB, TIMER 123100
8
SCREW #4-40 X 1/4”
HEX MS (QTY 2)
096841
9
FAN, 24VDC MUFFIN
80MM
153505
10
GUARD, 80MM FAN,
PLASTIC
143664
11
SCREW, 6-32 X 2 LG
HEX HD SLOT (QTY 4)
140182
12
NUT, 6-32 LOCK
INSERT (QTY 4)
119855
13
FLOAT 24 VAC
HARNESS
155508
14
HARNESS, STEAMER
HIGH VOLTAGE
160874
15
BASE & CAVITY
ASSEMBLY, 4 PAN ELE
162338
16 SWITCH, THREE WAY 162344
17
HARNESS, LOLO
E-SAVING MOD
162429
6
7
1
5
8
10
10
2
4
3
9
11
11
11
12
12
16
24.438
ITEM NO.
PART
NUMBER
DESCRIPTION QTY.
1 162322
CONTROL PANEL ASSEMBLY
ELECTRIC
1
2 069789
SCREW HEX SLOTTED HD W/WASHER
#8-32 X 3/8"
2
3 096826
TIMER STEAMER (ATMOSPHERIC) 1
4 155548
POWER SWITCH, WITH GREEN
INDICATOR LIGHT
1
5 096857
SWITCH, DOOR 1
6 116384
LIGHT, INDICATOR AMBER 1
7 123100
KNOB, TIMER 1
8 096841 SCREW #4-40 X 1/4" HEX MS 2
9 153505
FAN, 24VDC MUFFIN 80MM 1
10 143664
GUARD, 80MM FAN, PLASTIC 1
11 140182
SCREW, 6-32 X 2 LG HEX HD SLOT 4
12 119855
NUT, 6-32 LOCK INSERT 4
13 155508
ST-4E & ST-6E W/ FLOAT 24 VAC
HARNESS
1
14 160874
HARNESS, STEAMER HIGH VOLTAGE 1
15 162338
BASE & CAVITY ASSEMBLY, 4 PAN
ELEC
1
16 162344
SWITCH, THREE WAY 1
17 162429
HARNESS, LOLO E-SAVING MOD 1
