1. Preparation: X-axis beam, synchronous shaft, 42 stepper motor\, M3 spring washer,
M3x8 screw x4.

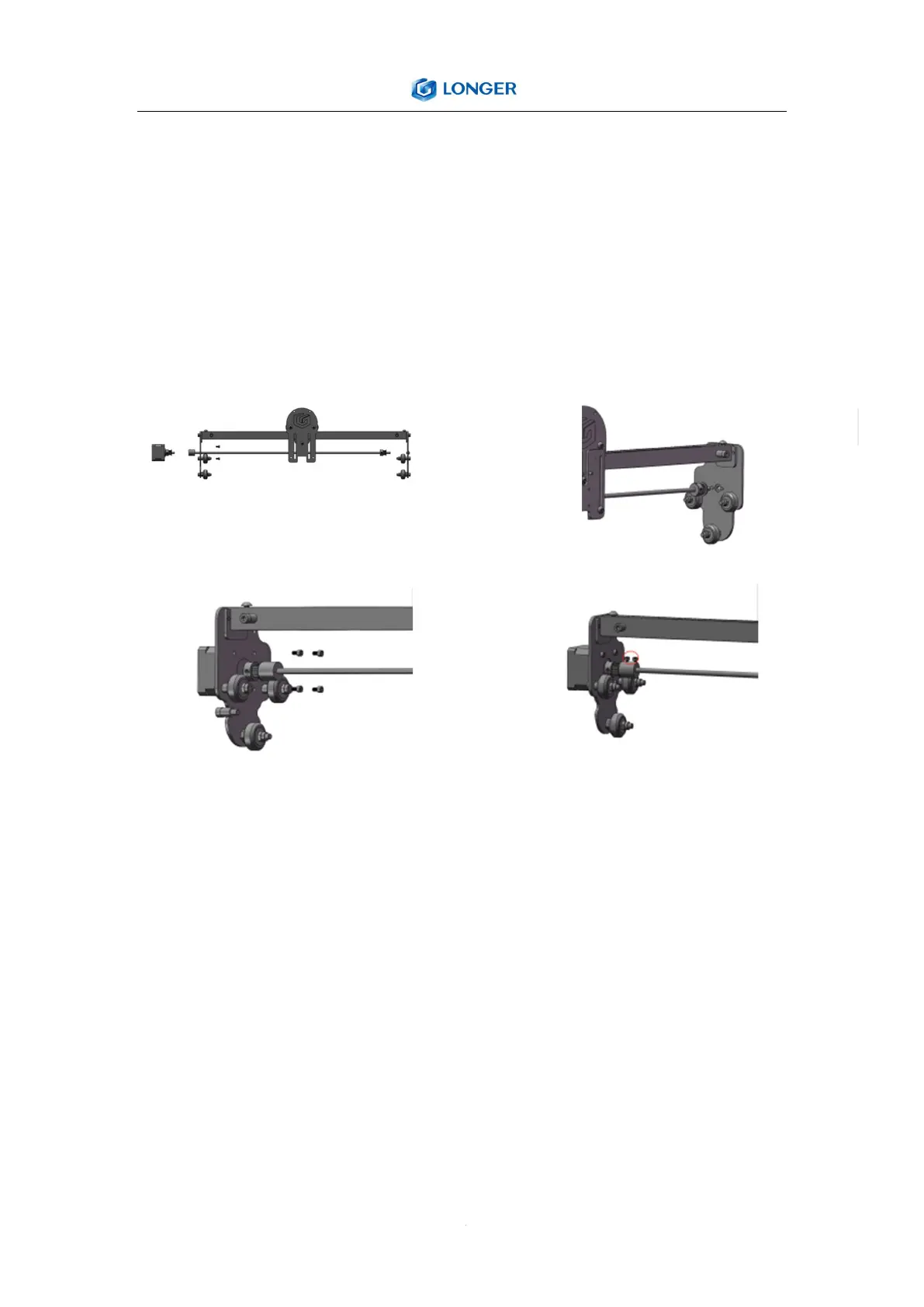

1.1Install the motor on the sheet metal on the right side of the beam as
shown in the figure, connect the motor shaft with the synchronous shaft, and
tighten the coupling screws.
2. Preparation: frame profile, corner groove, hexagon socket head screw
M5X20x4, M5 spring cushion x4.
2.1First put the foot groove in the frame profile, use the inner hexagonal
cup head to assemble and fix the frame profile. After the frame is installed,
tighten the M5 machine screw on the foot groove. During the process, hold
down the profile by hand to prevent the frame from warping.
