14

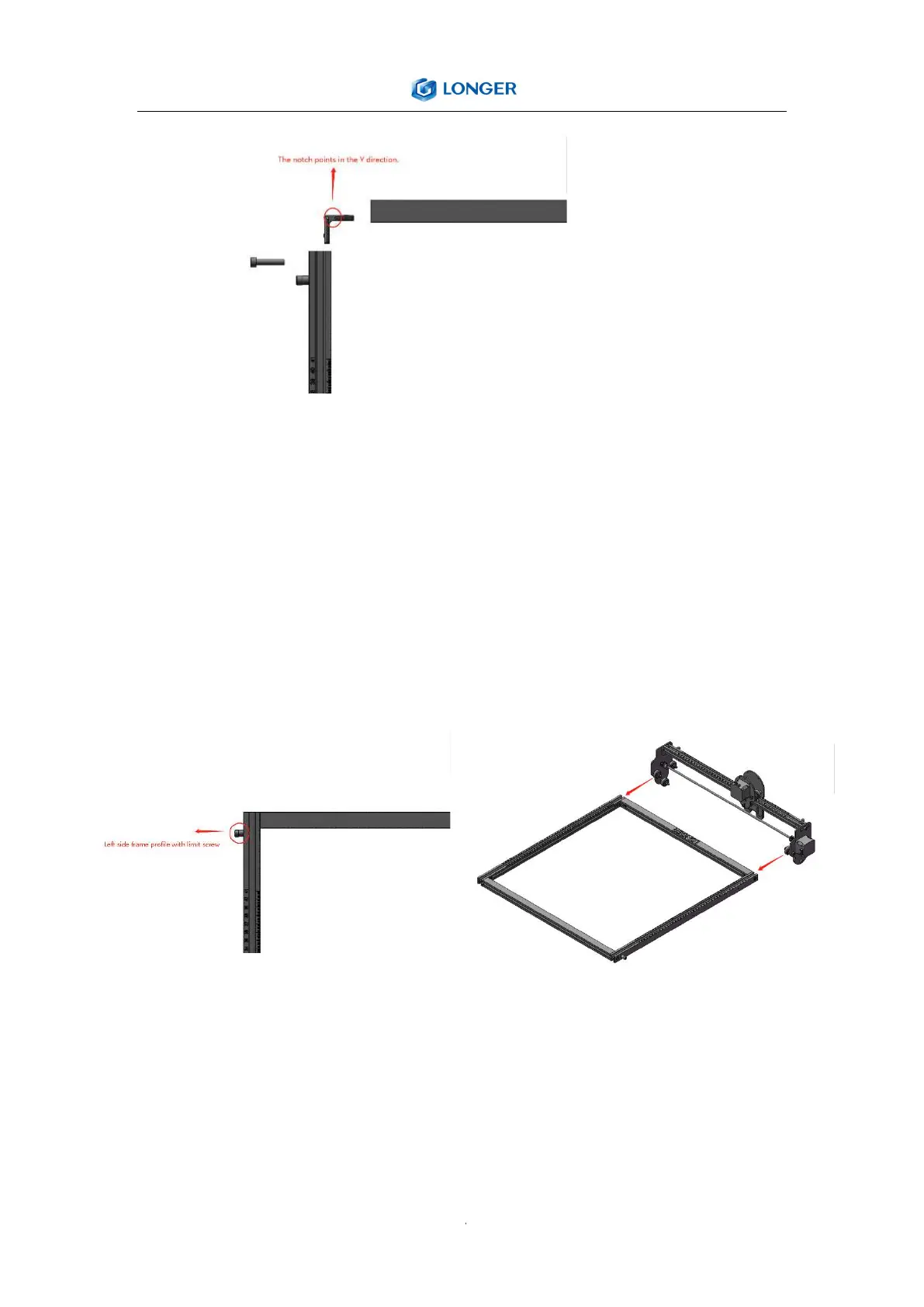

3. Preparation: X-axis beam, and the frame to complete the assembly.
3.1Install the X-axis beam in the V-groove of the left and right profiles along
the direction of the arrow.
3.2Pay attention to adjusting the eccentric nut to prevent the roller from
