hexagon socket round head screw x2, nylon isolation column (5x3x3) x2;

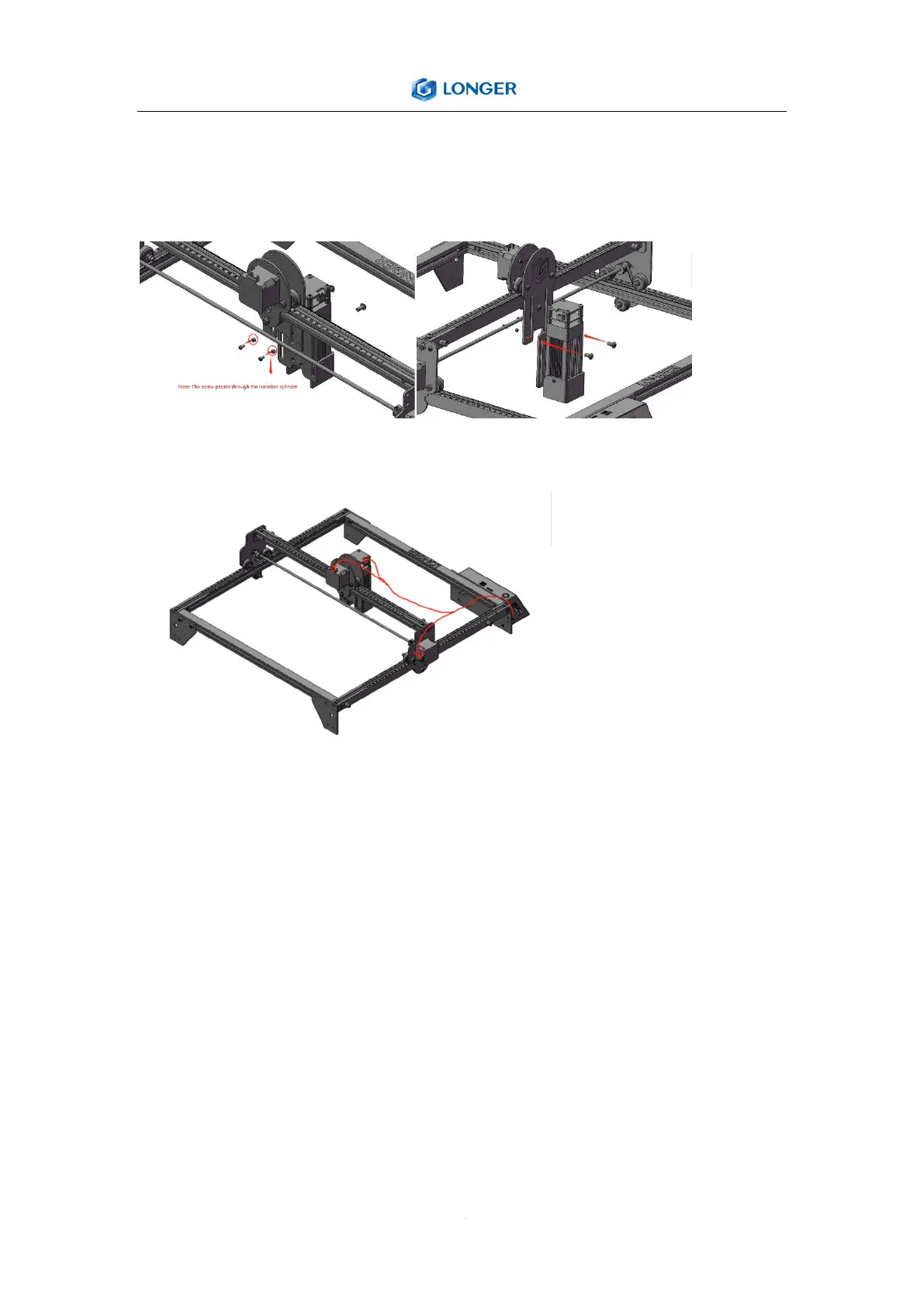

6.1Use M5x8 round head screws to fix the laser head to the X-axis beam
laser head sheet metal, and the height of the laser head should not be too high;
7. Connect the cable to the motor and the laser head as shown in the figure.
Note: Fix the cable with a cable tie and sheet metal to ensure that the cable has
enough length to ensure that the length of the cable is sufficient for the laser
head to move to the limit position.
