LONGER WT600-1F - Operation Panel; Basic Operation

1

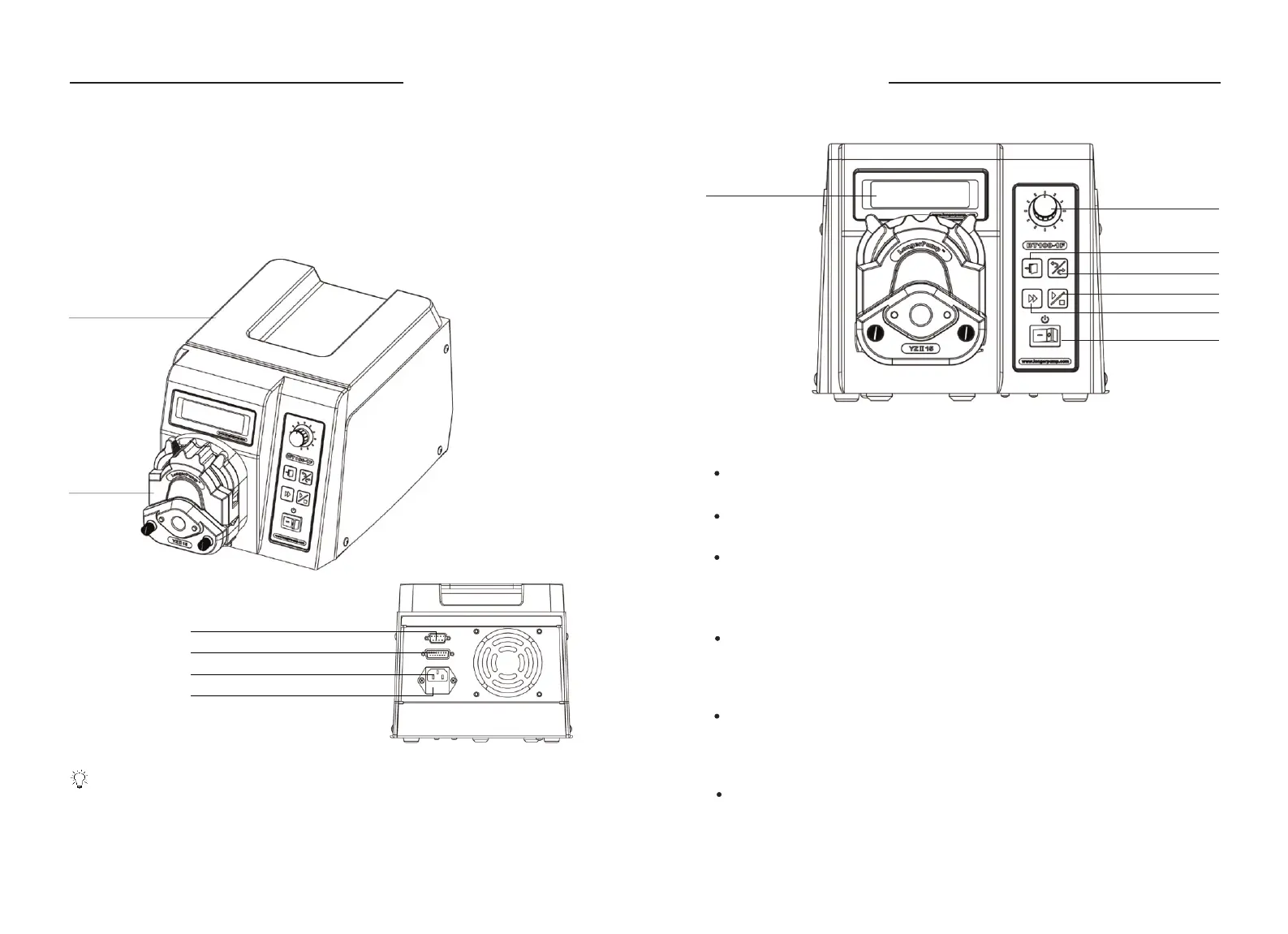

Pump Head
Drive
Power Socket
External Control Input Por t
Infuse Holder
External Control Output Por t
Introduction
Acceptable pump heads for WT600-1F are YZ1515x, YZ2515x, YZII15, YZII25,
DG15-24, KZ25, BZ25 and DMD25. The pump delivers flow rates from 0.7 to
6000 mL/min and dispensing volume is from 0.1 mL to 9900 mL. Combining
128 × 32 LCD display with membrane keypad and rotary coded switch makes
the operation easy and prompt. The speed can be adjusted manually or
automatically through external control interface.
Please see page 12 for detailed external control function.
Make sure the power line of the pump is grounded reliably to protect the
operator in humid condition.
Operation Panel
2
Star t/Stop Key
Exit Key
Direction Key
Prime Key
Knob
LCD Display
Power Switch
Basic Operation
Start/Stop Key
Press the Start/Stop Key to star t or stop the pump.
Direction Key
Press the Direction Key to change the rotation direction of the pump.
Knob
Function 1: Turn the Knob to adjust the flow rates in flow rates display state.
Function 2: Turn the Knob to select the menu and set the parameters, press
Knob for confirmation in menus selection state.
Prime Key
In common state, press the Prime Key to enter prime state when the pump runs
at full speed for empting, filling and rinsing operation; Press the Prime Key
again to return to common state. In prime state, other keys are invalid.
Exit Key
Function 1: Cancel current operation and return to previous menu.
Function 2: In dispensing mode, press Exit Key to switch different dispensing
parameters display.
Power Switch
Turn on or off the pump.
