5. Align the camera’s mounting plate slots to the tabs in the
mounting bracket. Push in and slide down to secure in place.
6. Insert the security screw through the fasteners on the top
of the camera and mounting bracket, then tighten with the
screwdriver.
7. Tighten the pre-installed locking screw using the screwdriver.
Note: To remove the power pack in the future, loosen the
locking screw.
8. Adjust the camera to the desired position. Tighten the
adjustment ring clockwise.

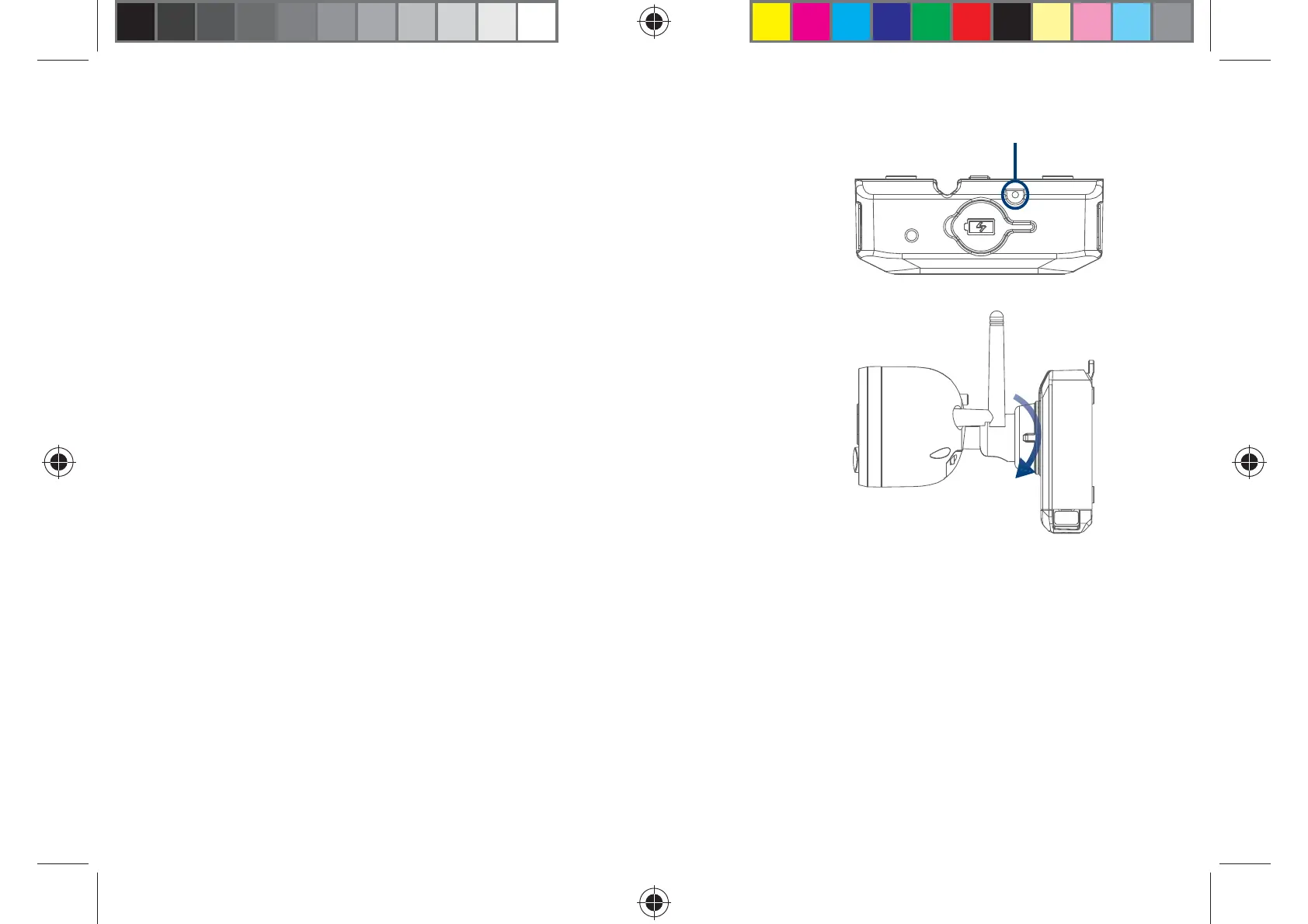

Pre-installed locking screw
