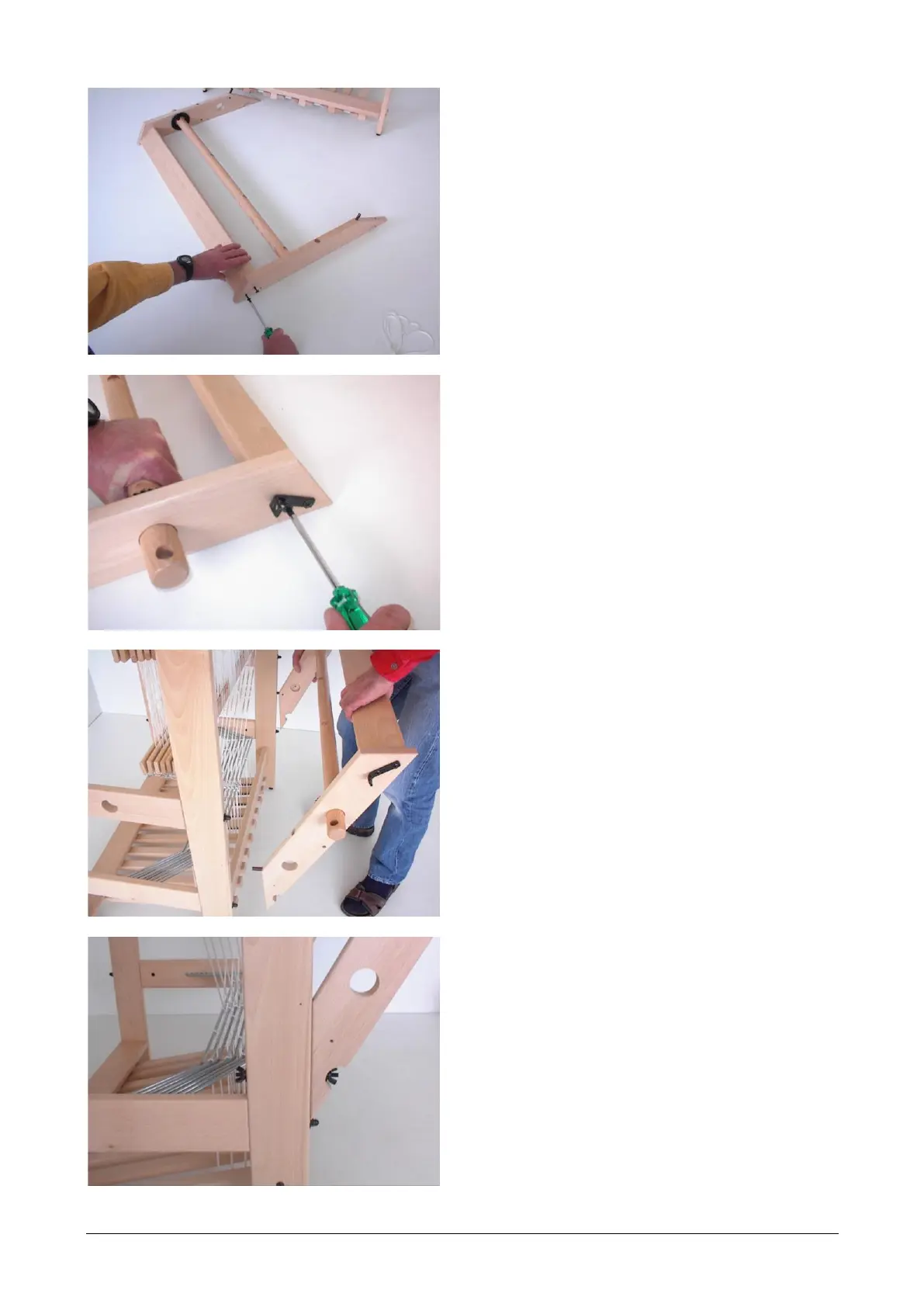

To assemble the back part of the David, use
the warp beam supports, the back beam and
the warp beam (one of the two round beams
with a ratchet wheel).
Connect these parts together, using the four
screws 5x50, as shown in the picture.
If you also purchased a brake for the warp
beam, find the bracket in the contents of its
hardware bag.
Attach the bracket onto the warp beam support
with the same screws that join the support and
the back beam at the side where the end of the
warp beam protrudes.
Place the back part in its location by inserting
the polyurethane dowels into the holes at the
rear of the loom.
Remove one wing nut and one washer from
both threaded ends.
Insert them into the holes through the uprights
and warp beam supports, slide on the washers
and fasten the wing nuts.
