Lovato DME D332 - Disposizione Morsetti E Dimensioni Meccaniche (MM)

I511 GB I 09 17 31100346
I
27

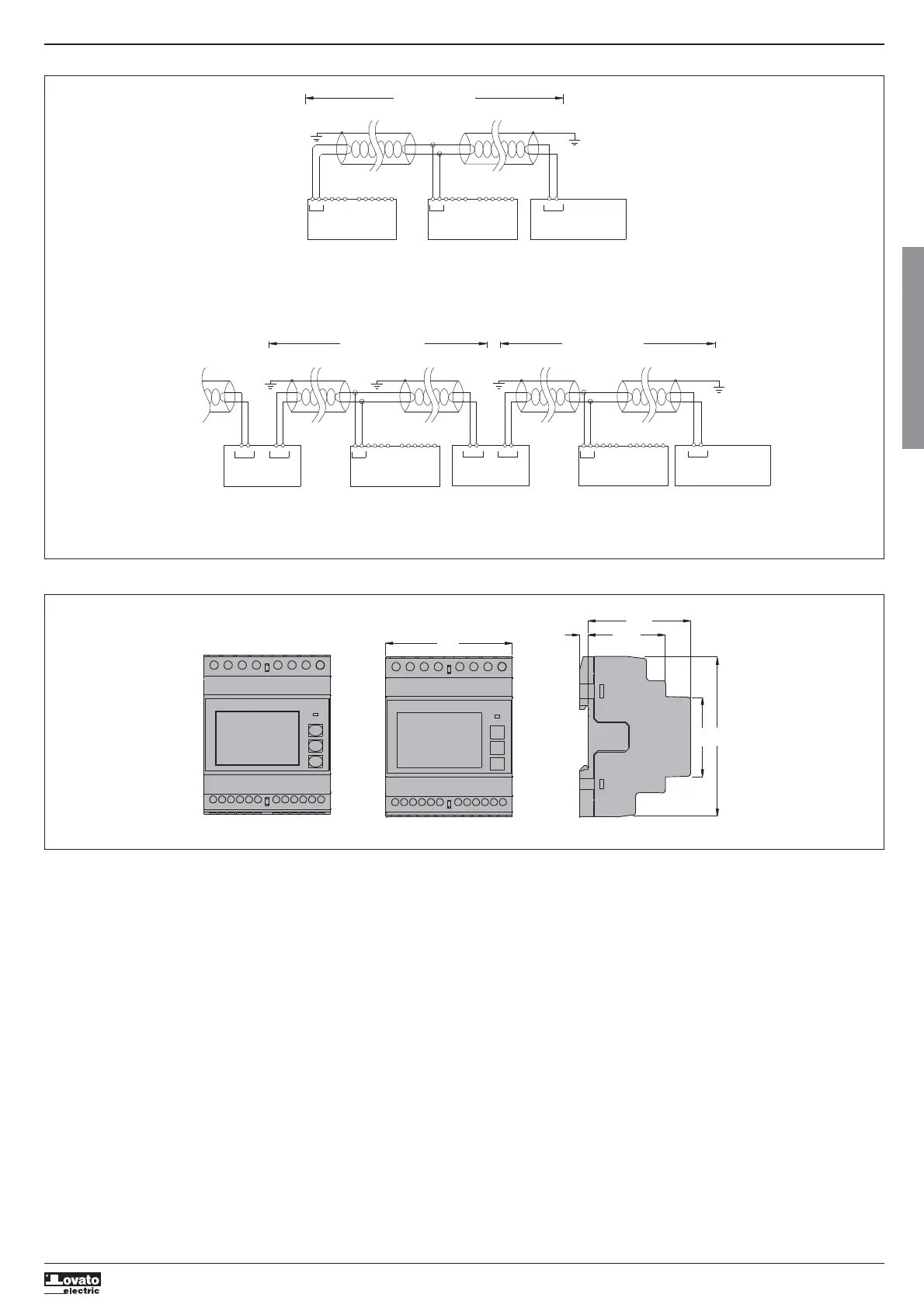

CONNESSIONE PC-DME D332 MEDIANTE INTERFACCIA M-BUS
DISPOSIZIONE MORSETTI E DIMENSIONI MECCANICHE [mm]
90
58
45
5 43.7
S1
S2
I1 I2
S2
S1 S1
S2
I3
T1 T2
M2
M1
V2V1 V3 VN
72
DME 332 n°1
Max 1000m
Max 25Ohm - 180pF
DME 332 n°250 *
M-Bus Master
M-Bus
DME D332
Max 1000m
Max 25Ohm - 180pF
M- Bus Repeater
M-Bus Master
Max 1000m
Max 25Ohm - 180pF
Device addresses n° 1-xx
DME D332
Device addresses n° xx-yy
up to 250 devices
Repeat this wiring diagram
M1 M2
M- Bus Repeater
NOTE:
The number of connected devices depends on the Master and Repeater unit load capacity
NOTE:
The number of connected devices depends on the Master unit load capacity
M-Bus
M1 M2
M-Bus
M1 M2
M-Bus
M1 M2
M-Bus
M1 M2
M-Bus
M1 M2
M-Bus
M1 M2
M-Bus
M1 M2
M-Bus
M1 M2
M-Bus
M1 M2
