6
|
HOOK2 series | Quick Guide - EN

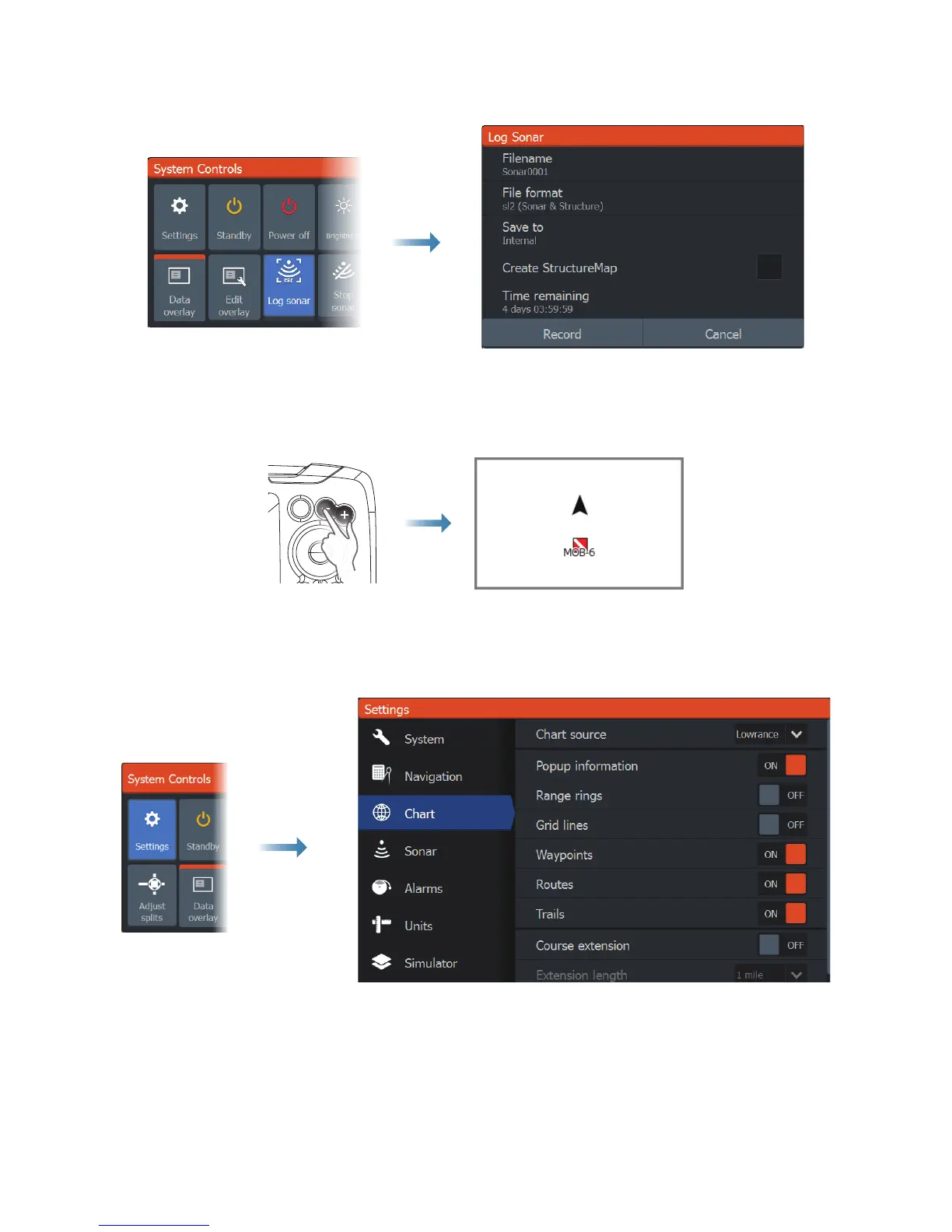

Logging sonar data
Sonar data can be logged and saved to internal memory.
Creating a Man Over Board (MOB) waypoint
Activate a MOB waypoint by pressing both Zoom keys simultaneously.
Settings dialogs
Used for system conguration.
Product manuals
For the full Operator manual, technical specications and declarations, refer to the
product website on: www.lowrance.com.

Lowrance HOOK2 7x GPS TS Specifications

General

Display Size	7 inches
Resolution	800 x 480 pixels
GPS	Yes
Waypoints	3000
Waterproof Rating	IPX7
Split Screen Viewing	Yes
Sonar	Broadband Sonar
Power Output	200W RMS
Depth Capability	500 ft
Display Type	Color TFT
Mounting Type	Bracket
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Sonar Frequency	200kHz (High CHIRP), 455/800kHz (DownScan)
