Warning: Do not use aggressive products such as acetone, trichloroethylene or surgical spirit or abrasive sponges,
ultrasound or UV lamps. Does not apply to the Cellu M6 Keymodule [2] i.
Cleaning the lift heads (cont’d)
4. Clean the flaps in the same way.
5. Once cleaning is complete, refit the flaps
by pushing them back into their housing,
holding them with the antiseptic wipe.

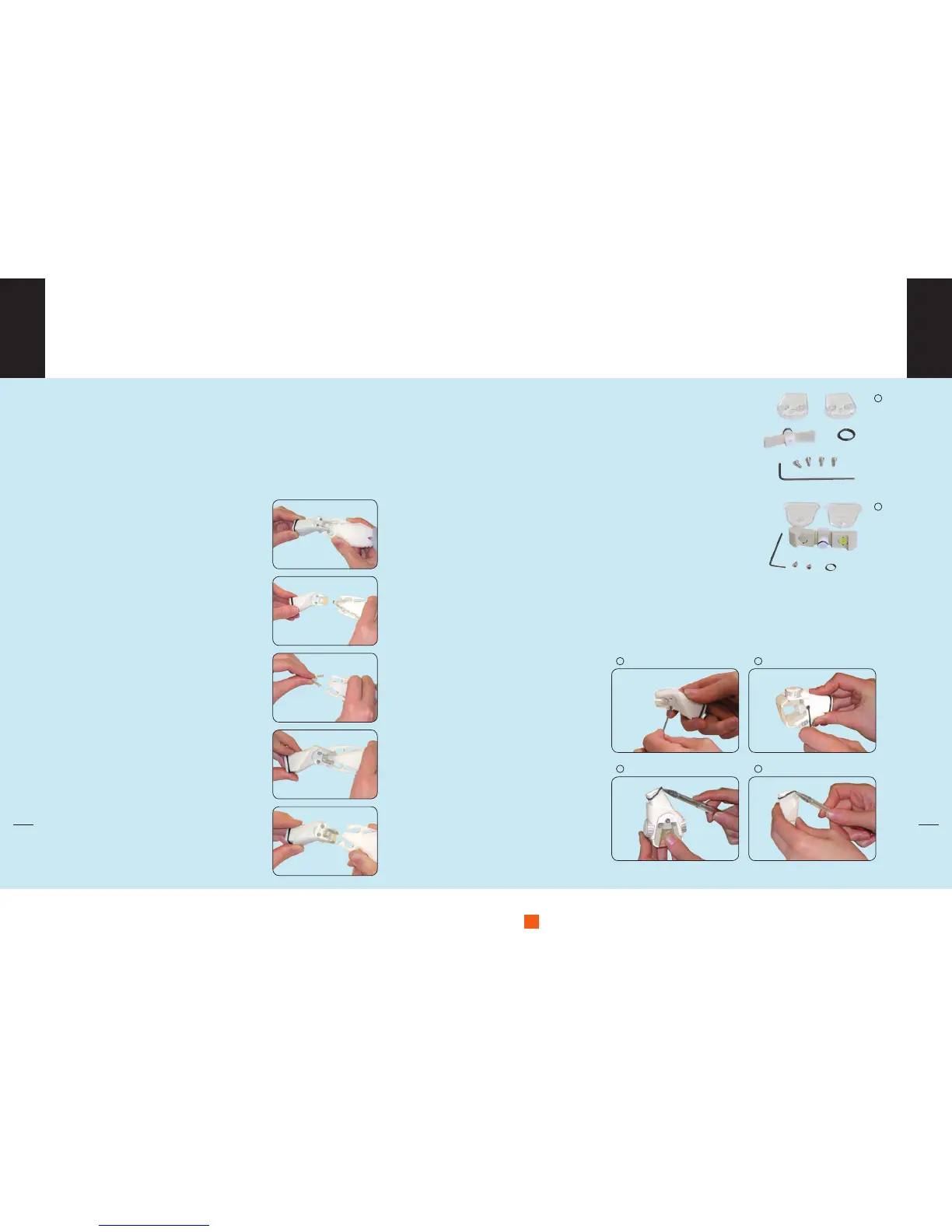

Removing the TML10 flaps:
The TML10 flaps can be removed and refitted
using the special extractor tool.
1. To remove the flaps, hold the extractor
tool’s sides in, then release them and pull
out both the tool and the flaps.
2. To remove the flaps from the tool, press in
on the sides of the tool.
3. Once cleaning is complete, replace the
flaps as shown below.
Replacing the flaps/airtight kit
Once the flaps no longer permit proper skin
treatment, they should be replaced. Use the
flaps provided with the machine or order
an airtight kit from the Customer Service of
your distributor.
1. TML10 airtight kit.
2. TML19 and TML30 airtight kit.
3. Using the hex key provided in the kit,
remove the side plates by unscrewing
the two screws and replace them with
the new ones.
4. Remove the sealing ring from the treat-
ment head connector and replace
it with the new one.
3
3
4
4
2
1
