Compact & Powerful Inverter iG5A
17
1. Please make sure that R, S, T are connected to 3 phase AC input,
and U, V, W are also motor connection terminals.
2. After supplying the power, please set the frequency of multi-step
among Low, Middle, and High.
3. If P1 (FX) turns on, the motor operates in forward. And after
turning off, it stops according to the deceleration time.
4. If P2 (RX) turns on, the motor operates in reverse. And after
turning off, it stops according to the deceleration time.
5. Control the motor’s speed via potentiometer.
Operation command:
Run/Stop via FX/RX
Frequency command:
0~60Hz analog input via potentiometer
Accel/Decel time:
Accel-10sec, Decel-20sec
Operation condition
P1 (FX) Forward
P2 (RX) Reverse
CM
VR
V1
CM
Potentiometer
1~5kohm, 1/2W
R
S
T
G
U
V
W
3 phase
AC input
Motor
Step
Command After changeDefaultCode Description
1
2
3
4
5
Drv
Frq
I17
I18
Analog input
(DRV group)
Accel/Decel time
(DRV group)
Forward run
(P1: FX)
Reverse run
(P2: RX)
Operation command
(DRV group)
Turn on/off motor via terminal.
Change keypad command to analog voltage command.
Set Accel time to 10sec in ACC
Set Decel time to 20sec in dEC.
The default is FX. This value may change
The default is RX. This value may change.
1 (FX/RX-1)
0 (Keypad-1)
5sec (Accel)
10sec (Decel)
FX
RX
1 (FX/RX-1)
3 (V1: 0~10V)
10sec (Accel)
20sec (Decel)
FX
RX
0~60Hz
Potentiometer 1~5kohm, 1/2W
VR
V1
CM
1
2
3

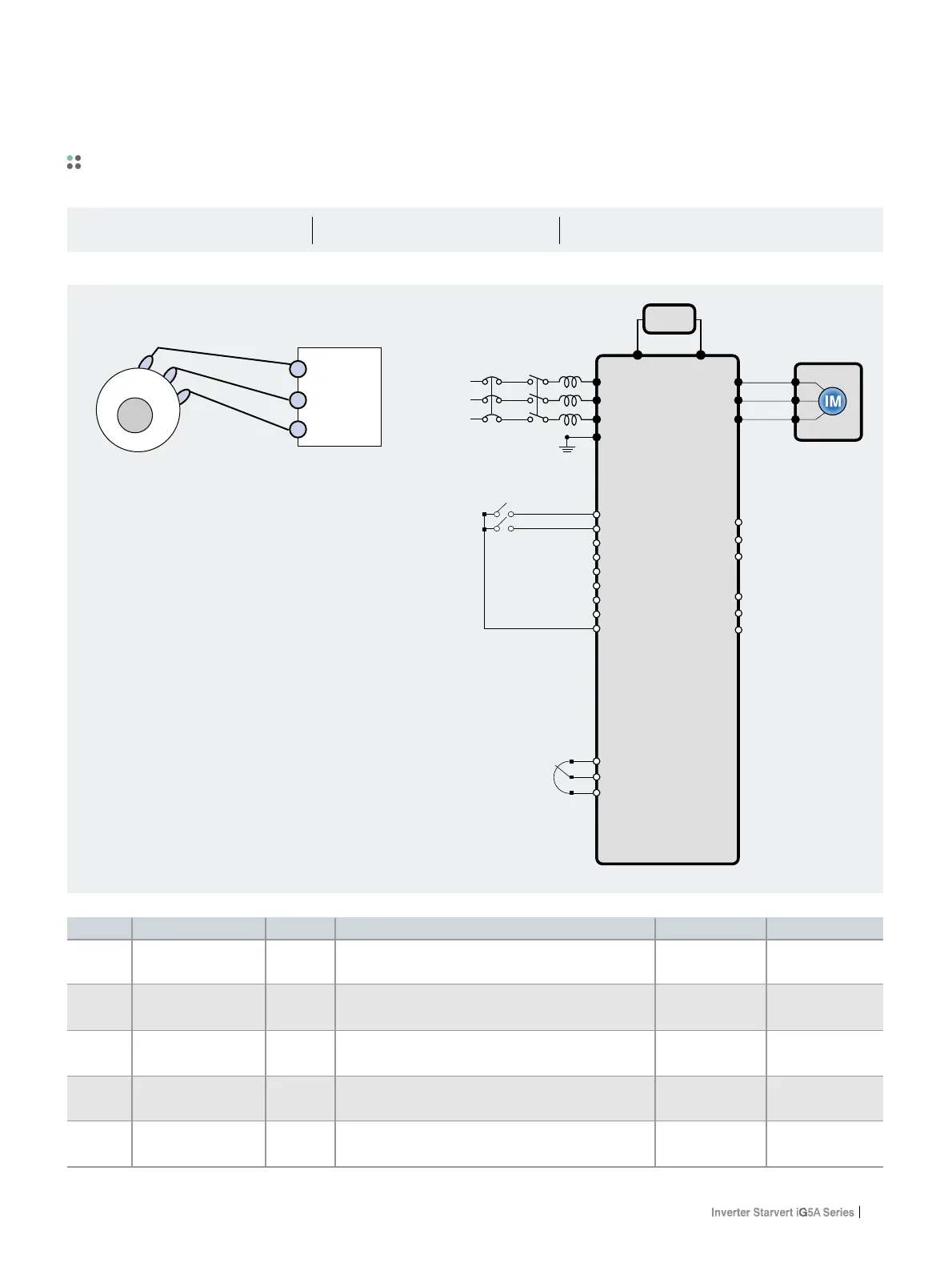

Wiring
Potentiometer (Volume) + Run/Stop via FX/RX + Accel/Decel time change
Parameter setting
ACC
dEC
