PARTS
OM 0472SB-A
[28]

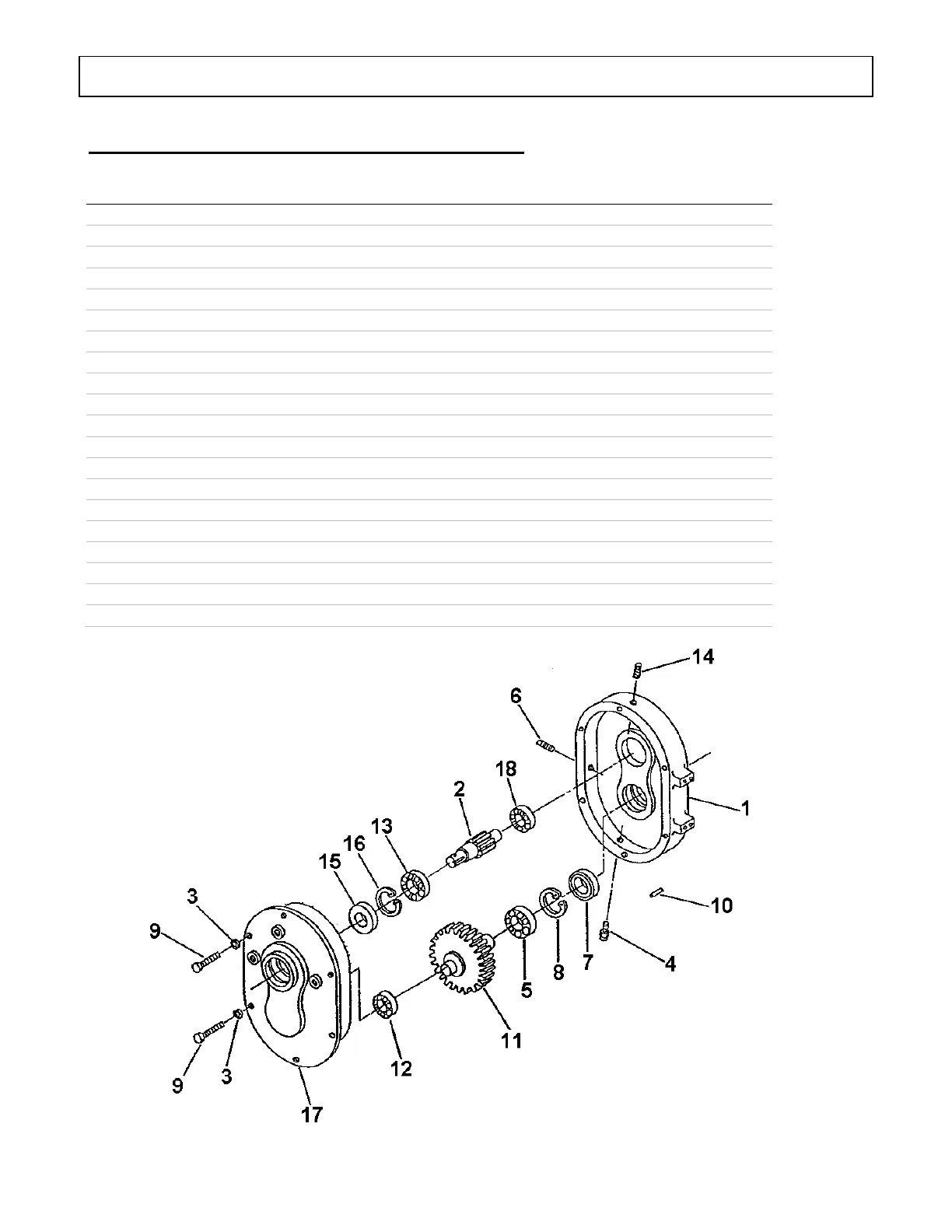

REDUCTION BOX - "COMER" IDENTIFICATION
R
EF. DESCRIPTION QTY PART #
-
Reduction Box assembly 1 4500146
1
Casing 1 n/a
2
Pinion 1 n/a
3
Lockwasher 10mm 6 1200018
4
Breather 1 656662
5
Ball bearing 1 659838
6
Plug 3/8" 1 655259
7
Oil seal 1 659839
8
Snap ring 1 656642
9
Hex. bolt M10 x 1.5 x 30mm - 8,8 6 0200016
10
Spring pin 2 n/a
11
Gear 1 n/a
12
Bearing 1 659843
13
Cone bearing 1 656647
14
Plug 1/4" 2 663570
15
Oil seal 1 659845
16
Snap ring 1 656654
17
Cover 1 n/a
18
Cone bearing 1 4300069
-
Shim (not shown & qty as desired) 1 656649
