PARTS
OM 0472SB-A
[30]
WORM GEARBOX ASSEMBLY - IDENTIFIED "CK067"
REF. DESCRIPTION QTY PART #
- Gearbox assembly 1 BER4500137
1 Input shaft 1
BER4500147
2 Output hollow shaft 1
n/a
3 Bearing 1" int 1 BER4500150
4 Bearing 1 1/4" int 1 BER4500151
5 Bearing 45mm int 2 BER4500152
6 Oil seal 1 BER654508
7 Oil seal 45 x 60 x 7 2 BER4500153
8 Snap ring R062 1 BER4500155
9 Spacer 25.4 x 38 x 9.6 2 BER4500154
10 Bolt hex 8mm x 1.25 x 16 3 BER0200005
11 Bolt hex 10mm x 1.5 x 20 4 BER0200012
12 Plug 1/4NPT 4 BER663570
13 Pressure plug 1/8"-27 NPT, vent 1 BER654927
14 Allen set screw 1/4" NF x 1/4" lg 2
n/a
15 Output cover 1 n/a
16 Key 1/4" x 1/4" x1 1/4" lg 1 BER654643
17 Key 12mm x 8mm x 30mm lg 1 BER4500156
18 Key 1/4" x 1/4" x 54.5mm lg 1 BER4500157
- Shim kit - for input and output shafts (not
shown)
1 BER4500158

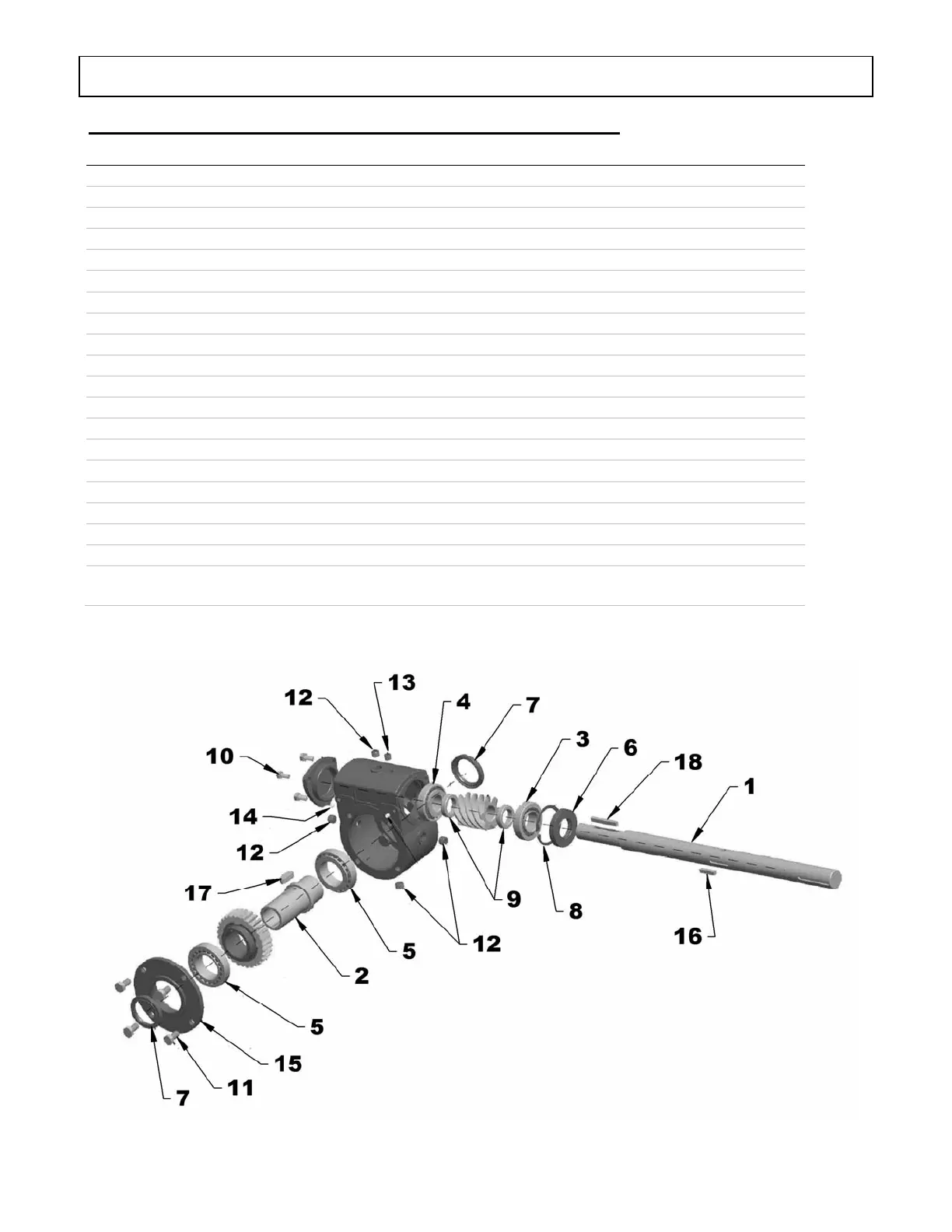

Fig: 000700_RAD1610001
