⑤ Handling of the 3-point linkage
Down speed control knob
Fast
Slow & lock
When driving the tractor without attached implement, comply with the followings.
1. Fix upper link(5) with the fixing hook installed in front of the upper link.
2. Connect stabilizer(2) to the lower link(3) to avoid the lateral movement of the lower link.
3. Connect lower link strap to the both lower links(3) (if fitted, chain type stabilizer only)
If the 3-point linkage is not necessary, remove it as follow.
1. Remove upper link pin(7) and detach the upper link(5).
2. Detach the rear side of the stabilizer(2) from the lower link(3) while holding the lower link tightly
not to fall down.
3. Remove lift rod (LH), lift rod (RH) and stabilizer(2) step by step.
4. Remove lower link(3) carefully not to get hurt due to its own weight.
When using hitch/drawbar, or driving on road, lift
up the 3-point linkage and fix it by turning the
down speed control knob to the locking position.
▶ The parts of 3-point linkage are
very heavy. When handling
them, take care not to get injury.
PLEASE BE CAREFULL !
Caution
①
④
③
⑤
②
⑥
⑦

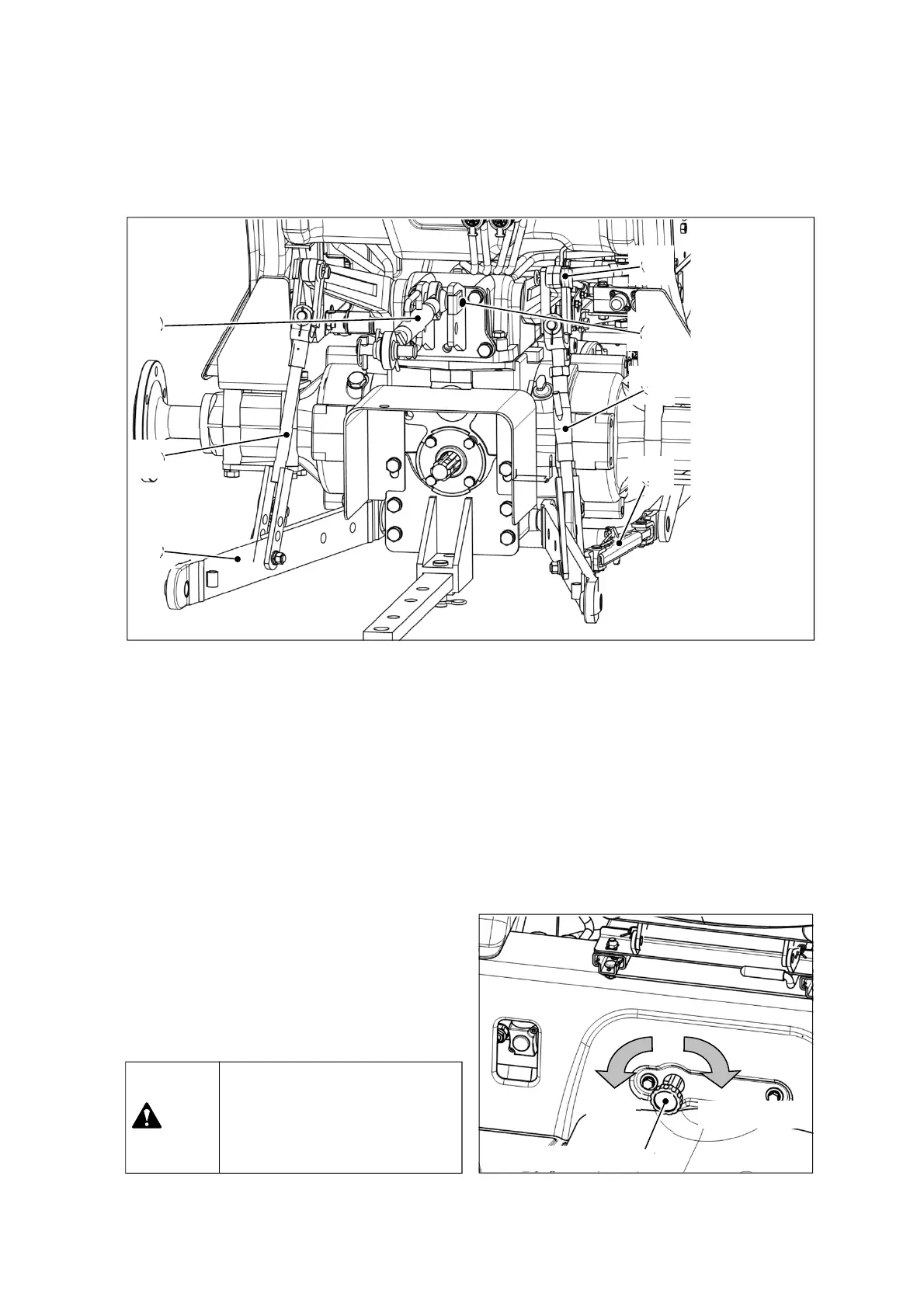

① Lift rod (LH)
② Stabilizer
③ Lower link
④ Lift rod (RH)
⑤ Upper link
⑥ Lift rod pin
⑦ Upper link pin
