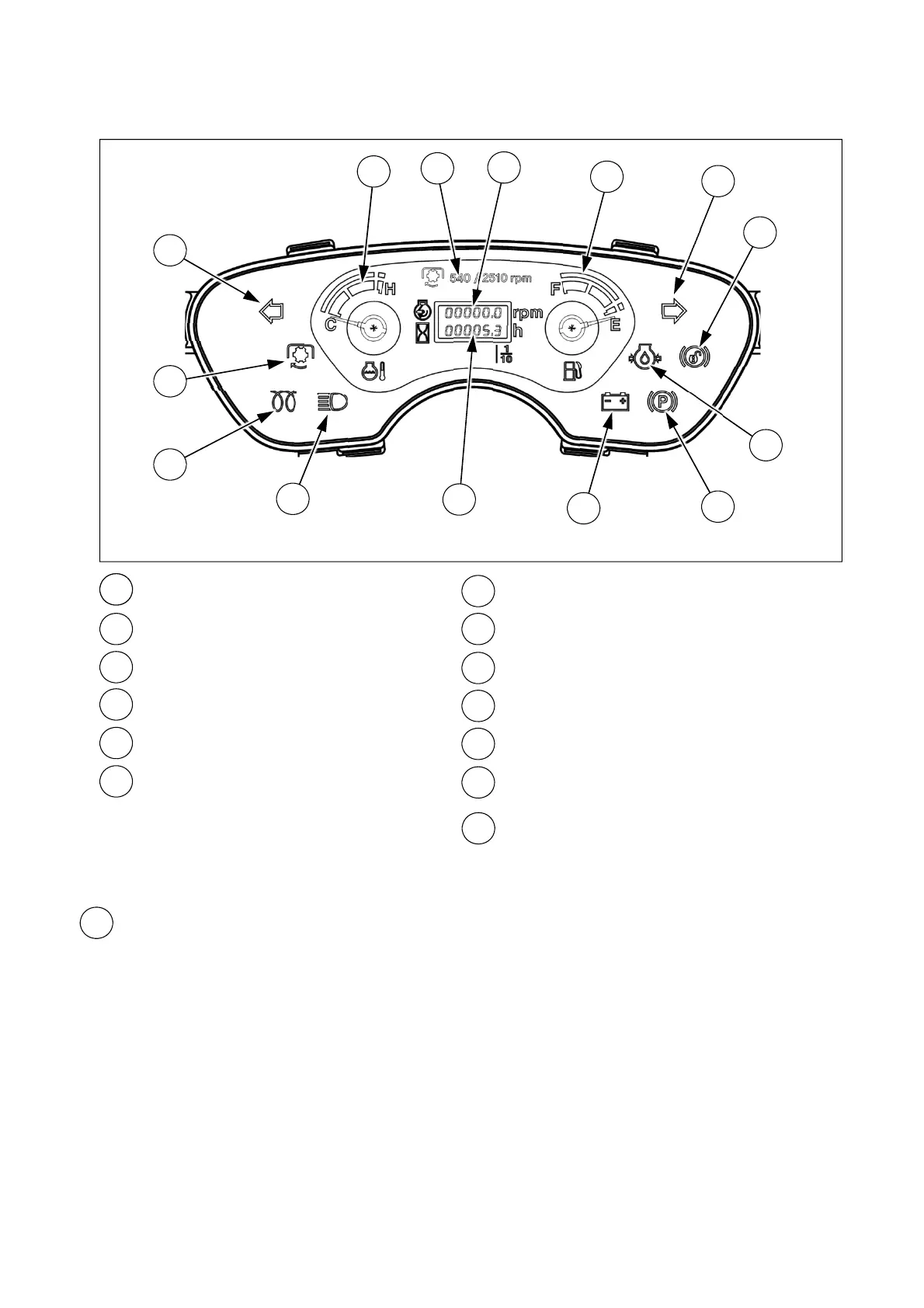

(1) Instrument panel
21
Turn signal indicator (Left / Right)
3
Cold start aid indicator
2
PTO operation indicator
4
High beam indicator
5
Engine coolant temperature gauge
6
Tachometer
7
Hour meter
8
Fuel level gauge
9
Battery charging indicator
12
Engine oil pressure indicator
10
Parking brake indicator
11
Brake pedals not latched indicator (Not used)
1
2
6
7
8
9
10
11
12
3
4
5
1
13
PTO speed indicator
13
1
Turn signal indicator and Hazard warning light indicator
When turning the turn signal light switch to the
left/right direction, the left/right turn signal lights
and this indicator will blink simultaneously. The
key switch has to be in the ON or START
positions.
When turning on the hazard warning light switch,
all the turn signal lights will blink simultaneously
regardless of the key switch position. Use the
hazard warning light switch while driving on
public roads, day or night.
